2013 March 19: Install the timing sprockets, chain, and tensioner

Created:
Updated:

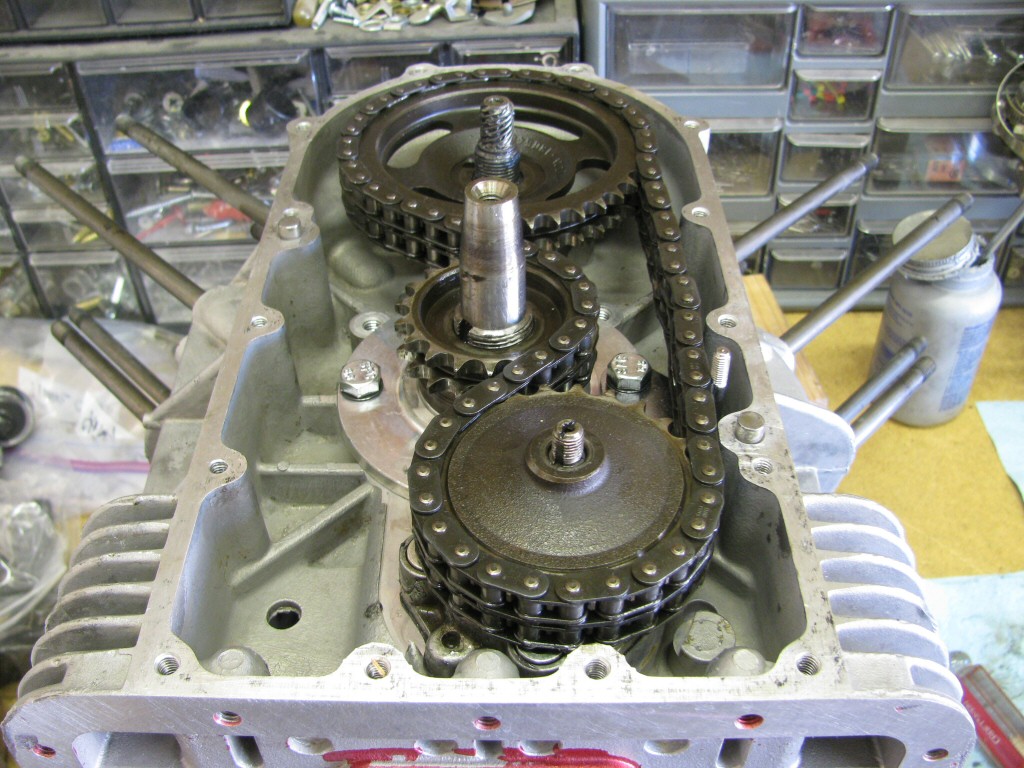

Back to the front of the engine, I installed the timing sprockets and chain.
Back to the front of the engine, I installed the timing sprockets and chain.

Photo courtesy of Gregory Bender.

Direct link to image

I fit the rest of the bow-type timing chain tensioner.
I fit the rest of the bow-type timing chain tensioner.

Photo courtesy of Gregory Bender.

Direct link to image

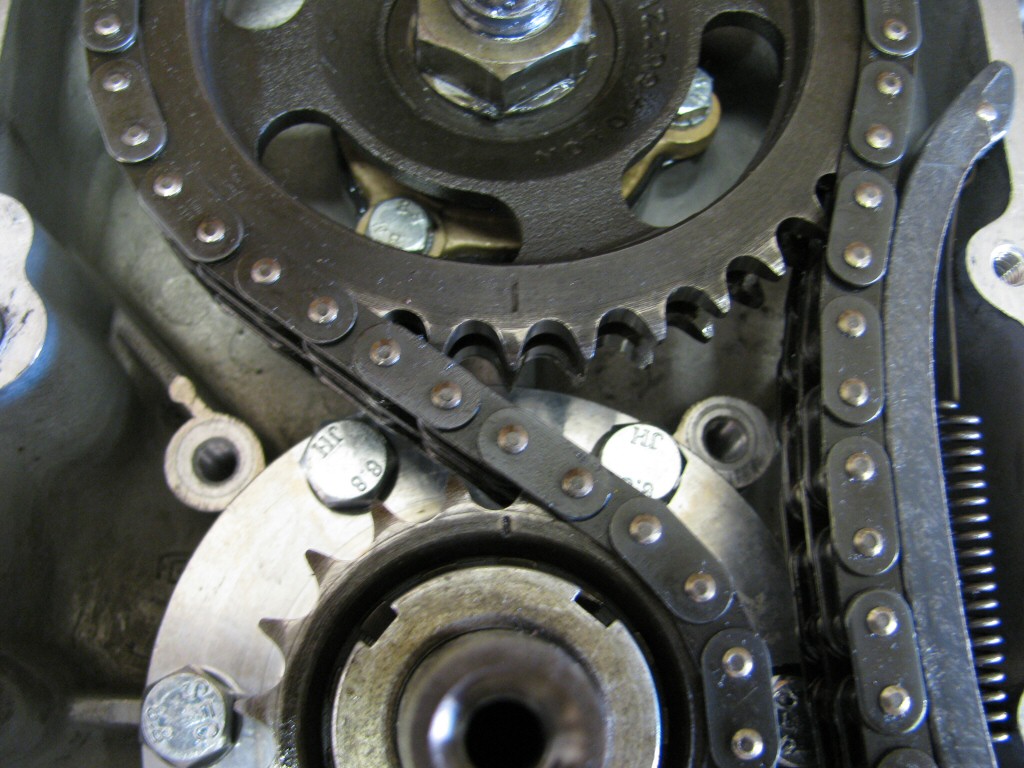

Marks on the sprockets are clearly aligned.
Marks on the sprockets are clearly aligned.

Photo courtesy of Gregory Bender.

Direct link to image

All the nuts are secured in placed on their respective sprockets.
All the nuts are secured in placed on their respective sprockets.

Photo courtesy of Gregory Bender.

Direct link to image

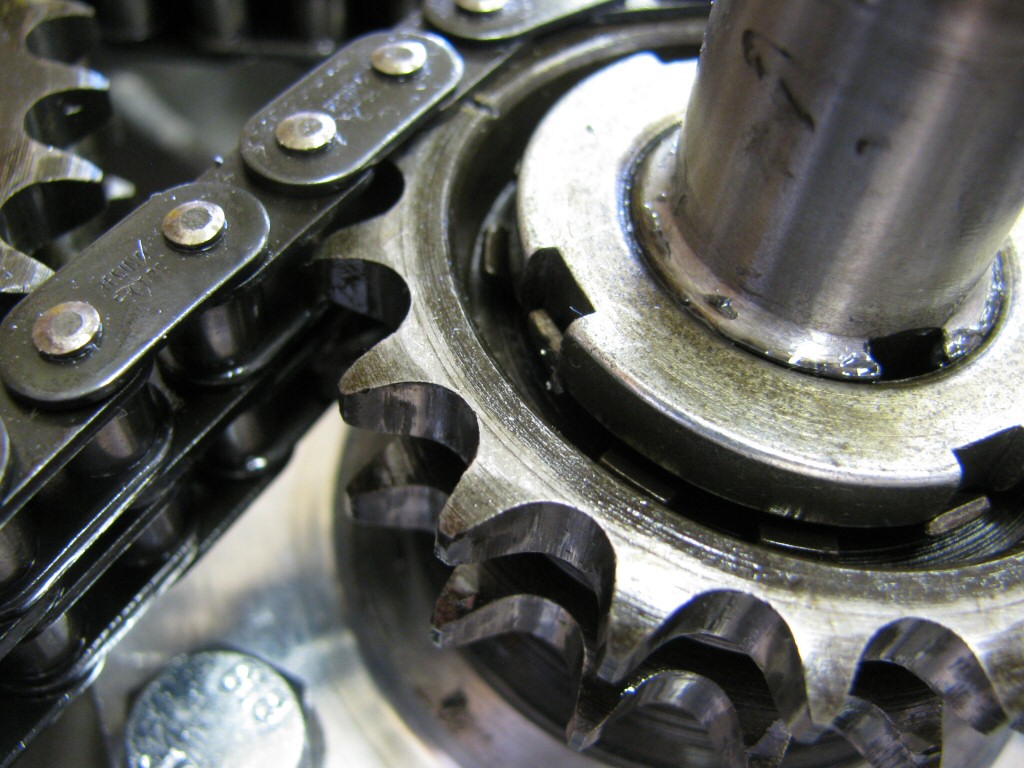

The locking tang on the crankshaft sprocket is bent into place.
The locking tang on the crankshaft sprocket is bent into place.

Photo courtesy of Gregory Bender.

Direct link to image
