2013 March 19: Fit the oil sump and sump extension

Created:
Updated:
Time to fit the sump and external oil filter / sump extension.
Time to fit the sump and external oil filter / sump extension.

Photo courtesy of Gregory Bender.

Direct link to image

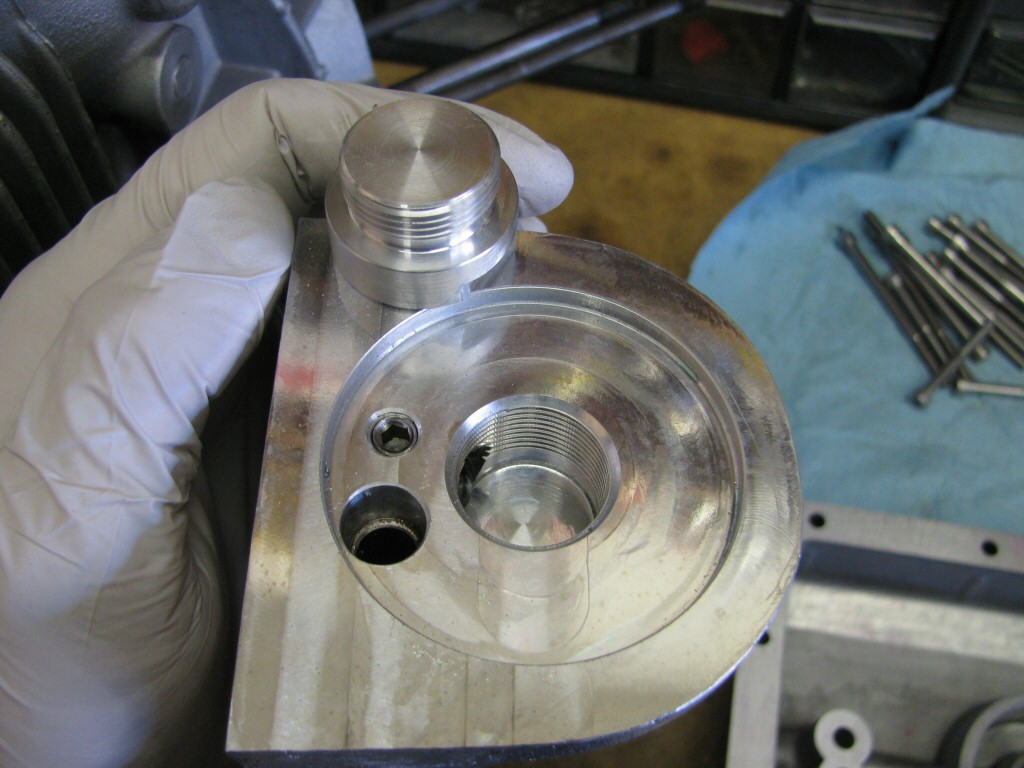

Remove this plug from the external oil filter mount.
Remove this plug from the external oil filter mount.

Photo courtesy of Gregory Bender.

Direct link to image

A look at the threaded hole.
A look at the threaded hole.

Photo courtesy of Gregory Bender.

Direct link to image

Also remove the oil filter adapater from the oil pan.
Also remove the oil filter adapater from the oil pan.

Photo courtesy of Gregory Bender.

Direct link to image

The plug goes in the sump.
The plug goes in the sump.

Photo courtesy of Gregory Bender.

Direct link to image

The oil filter adapter goes in the external oil filter.
The oil filter adapter goes in the external oil filter.

Photo courtesy of Gregory Bender.

Direct link to image

I applied blue Loctite to the plug threads.
I applied blue Loctite to the plug threads.

Photo courtesy of Gregory Bender.

Direct link to image

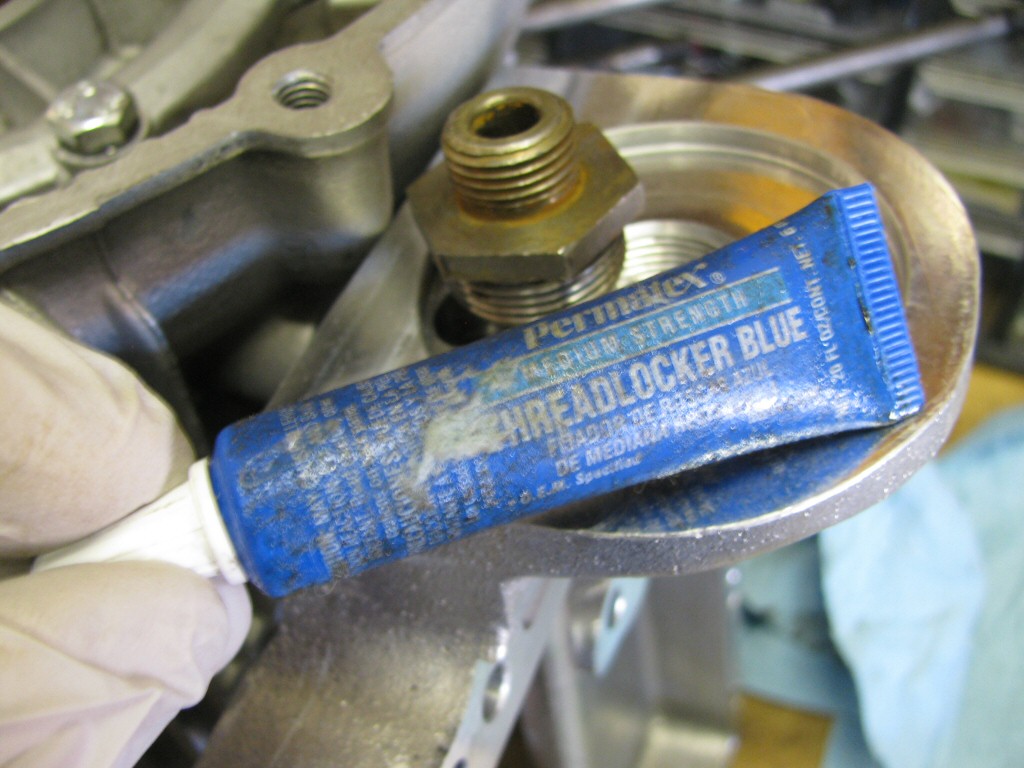

I applied blue Loctite to the oil filter adapter threads.
I applied blue Loctite to the oil filter adapter threads.

Photo courtesy of Gregory Bender.

Direct link to image

Plug tightened in place.
Plug tightened in place.

Photo courtesy of Gregory Bender.

Direct link to image

Oil filter adapter tightened in place.
Oil filter adapter tightened in place.

Photo courtesy of Gregory Bender.

Direct link to image

Pick up screen fit to the sump.
Pick up screen fit to the sump.

Photo courtesy of Gregory Bender.

Direct link to image

I clean up the sealing surfaces internal to the oil pressure relief valve, then set the blow off point to 60 PSI or just a bit higher.
I clean up the sealing surfaces internal to the oil pressure relief valve, then set the blow off point to 60 PSI or just a bit higher.

Photo courtesy of Gregory Bender.

Direct link to image

This one opens right where I like it to open.
This one opens right where I like it to open.

Photo courtesy of Gregory Bender.

Direct link to image

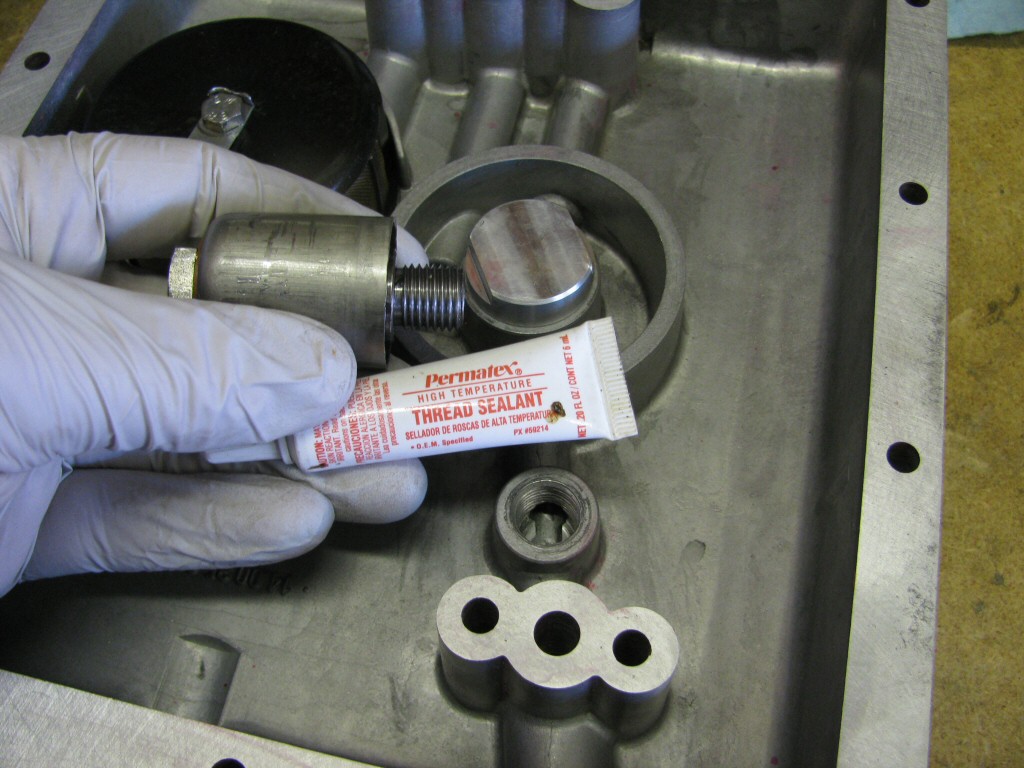

I applied thread sealant to the threads.
I applied thread sealant to the threads.

Photo courtesy of Gregory Bender.

Direct link to image

It is a lovely white color.
It is a lovely white color.

Photo courtesy of Gregory Bender.

Direct link to image

Here is the sump, ready for install.
Here is the sump, ready for install.

Photo courtesy of Gregory Bender.

Direct link to image

Two new gaskets, stainless steel fasteners, anti-seize, etc. I grease the gaskets before install.
Two new gaskets, stainless steel fasteners, anti-seize, etc. I grease the gaskets before install.

Photo courtesy of Gregory Bender.

Direct link to image

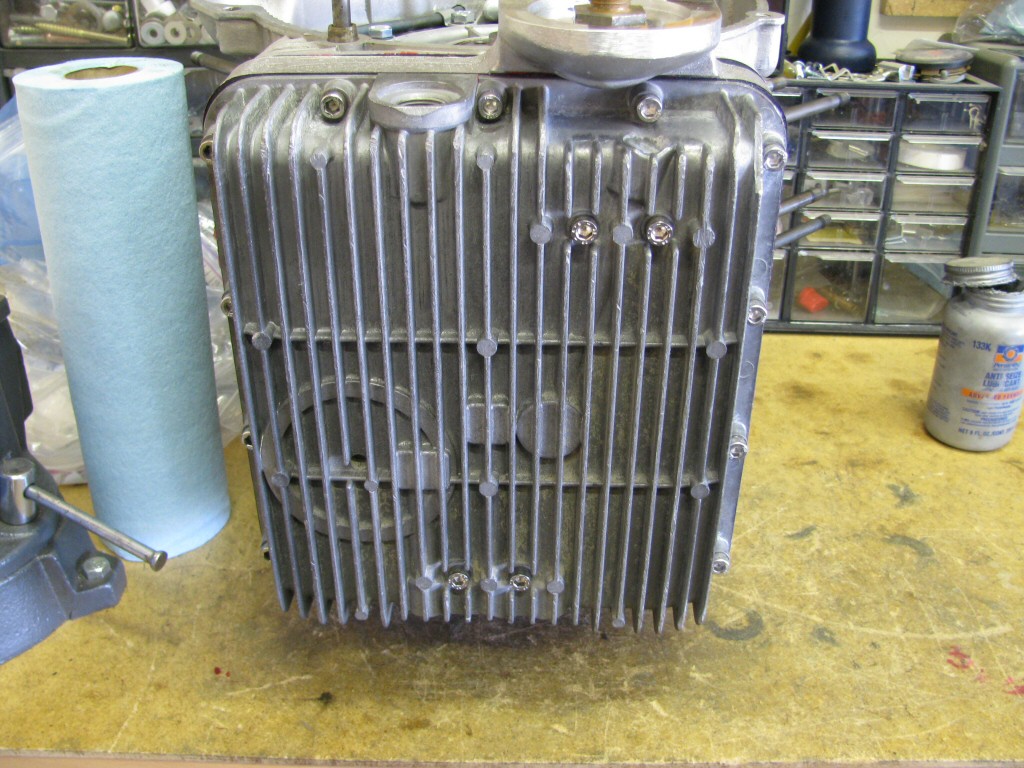

Sump and external oil filter fit in place.
Sump and external oil filter fit in place.

Photo courtesy of Gregory Bender.

Direct link to image

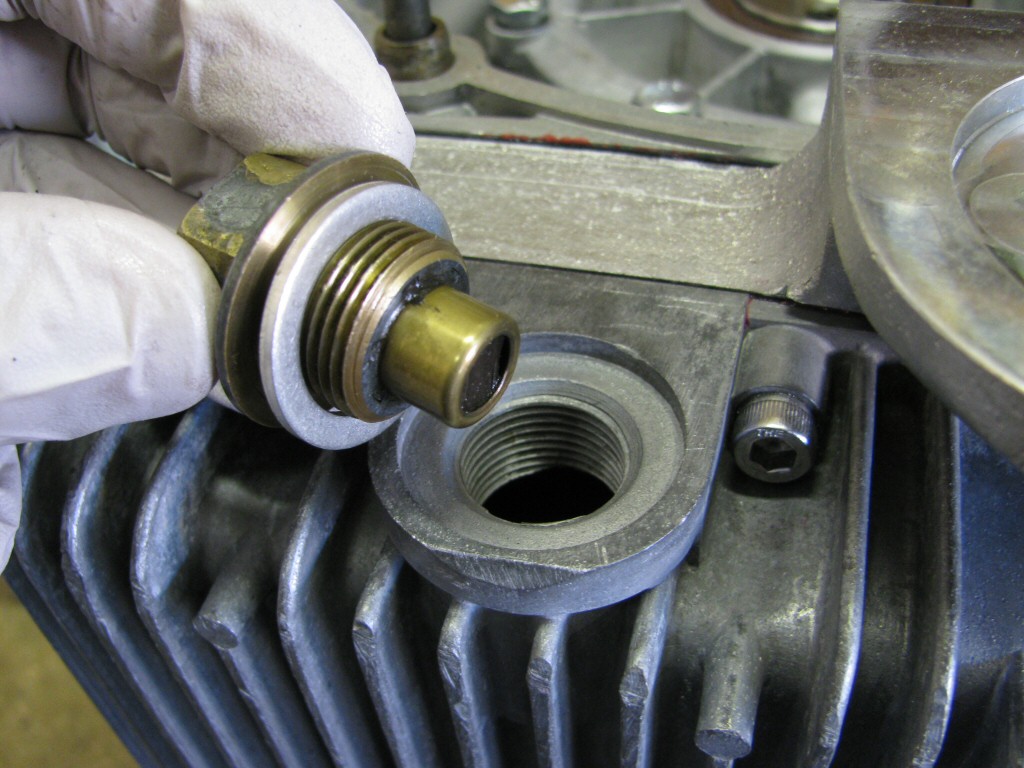

New crush washer on the drain plug.
New crush washer on the drain plug.
