2013 March 19: Fit the connecting rods

Created:
Updated:
Time to fit the connecting rods.
Time to fit the connecting rods.

Photo courtesy of Gregory Bender.

Direct link to image

The half shells get replaced, and here they are in the photo.
The half shells get replaced, and here they are in the photo.

Photo courtesy of Gregory Bender.

Direct link to image

I'll start with the right connecting rod since so that I am working with gravity.
I'll start with the right connecting rod since so that I am working with gravity.

Photo courtesy of Gregory Bender.

Direct link to image

Shells fit with assembly lube.
Shells fit with assembly lube.

Photo courtesy of Gregory Bender.

Direct link to image

Green plastigauge in place for measuring the clearance.
Green plastigauge in place for measuring the clearance.

Photo courtesy of Gregory Bender.

Direct link to image

Here is the green plastigauge after the connecting rod was fit, torqued, and then removed.
Here is the green plastigauge after the connecting rod was fit, torqued, and then removed.

Photo courtesy of Gregory Bender.

Direct link to image

The width is right on target with the desired clearance.
The width is right on target with the desired clearance.

Photo courtesy of Gregory Bender.

Direct link to image

With the plastigauge removed from the crankpin, the connecting rod is fit in place with the nuts torqued.
With the plastigauge removed from the crankpin, the connecting rod is fit in place with the nuts torqued.

Photo courtesy of Gregory Bender.

Direct link to image

Time to repeat with the left connecting rod.
Time to repeat with the left connecting rod.

Photo courtesy of Gregory Bender.

Direct link to image

Here is the plastigauge in place.
Here is the plastigauge in place.

Photo courtesy of Gregory Bender.

Direct link to image

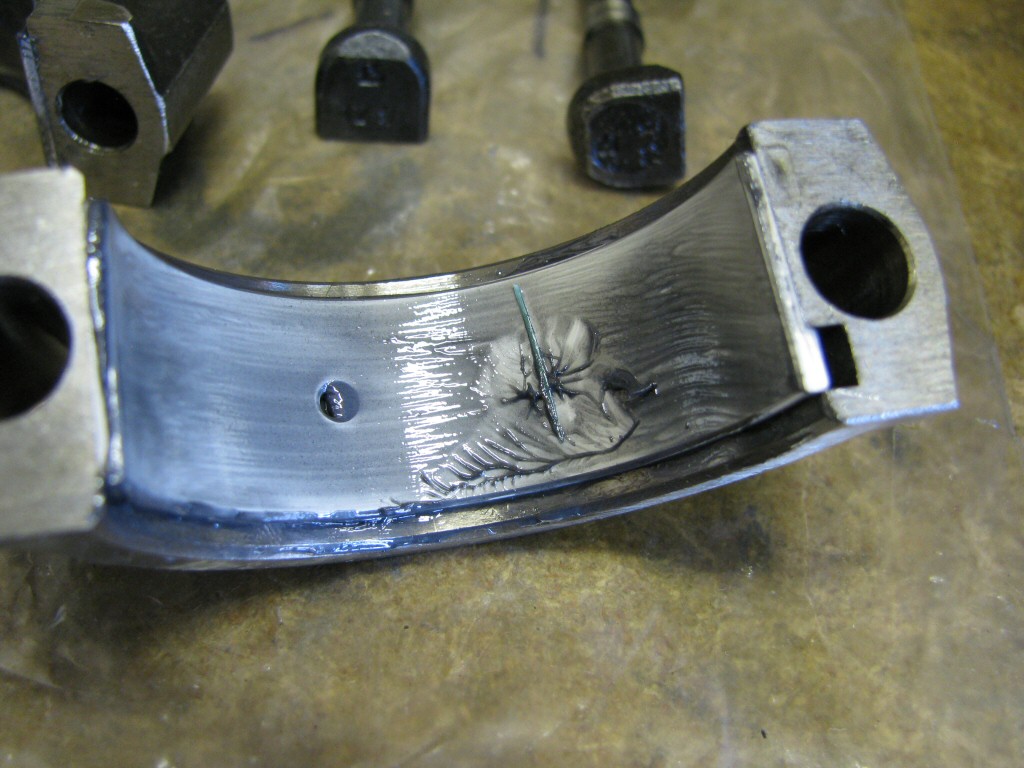

The squeezed plastigauge.
The squeezed plastigauge.

Photo courtesy of Gregory Bender.

Direct link to image

And the measurement - right on target.
And the measurement - right on target.

Photo courtesy of Gregory Bender.

Direct link to image

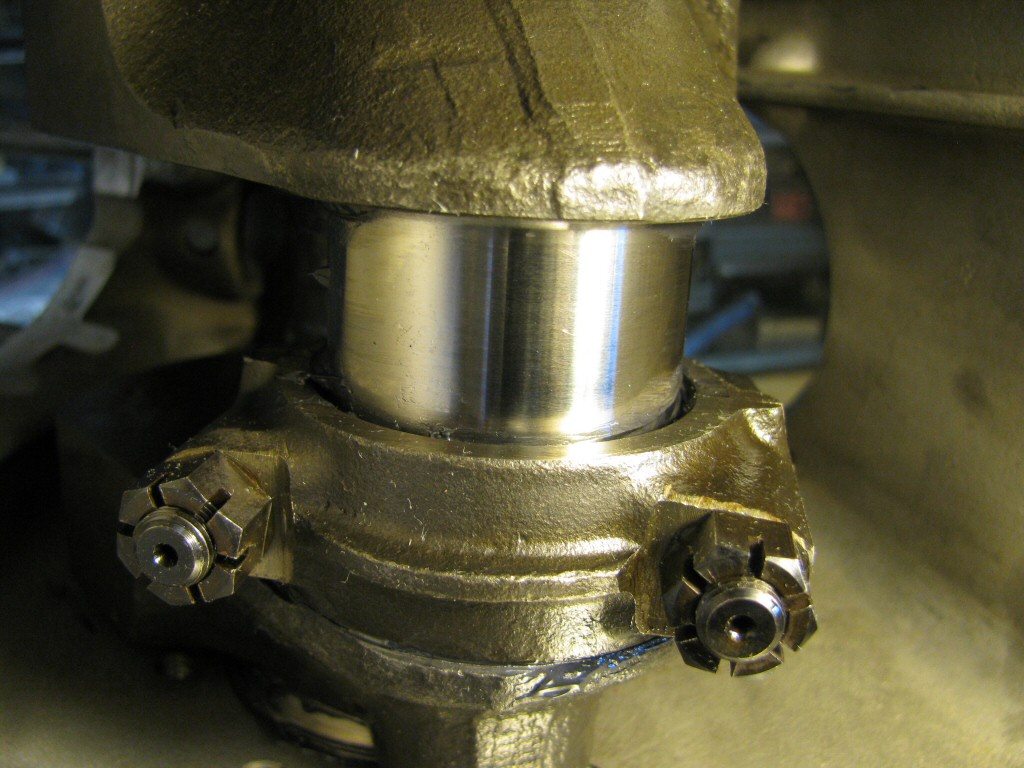

The cleaned crankpin.
The cleaned crankpin.

Photo courtesy of Gregory Bender.

Direct link to image

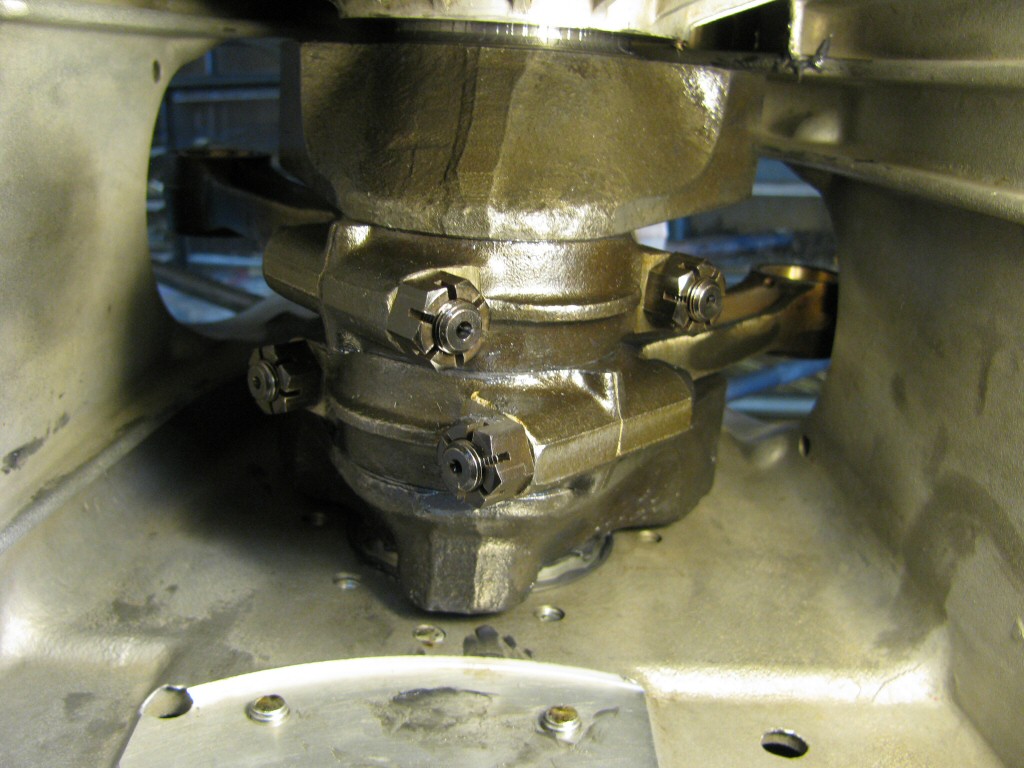

The left connecting rod fit.
The left connecting rod fit.
