Terminal insulation
Created:
Updated:
// //
Moto Guzzi insulated some of the terminals. Here are the general guidelines for terminal insulation:
-
Male bullet terminals: no insulation

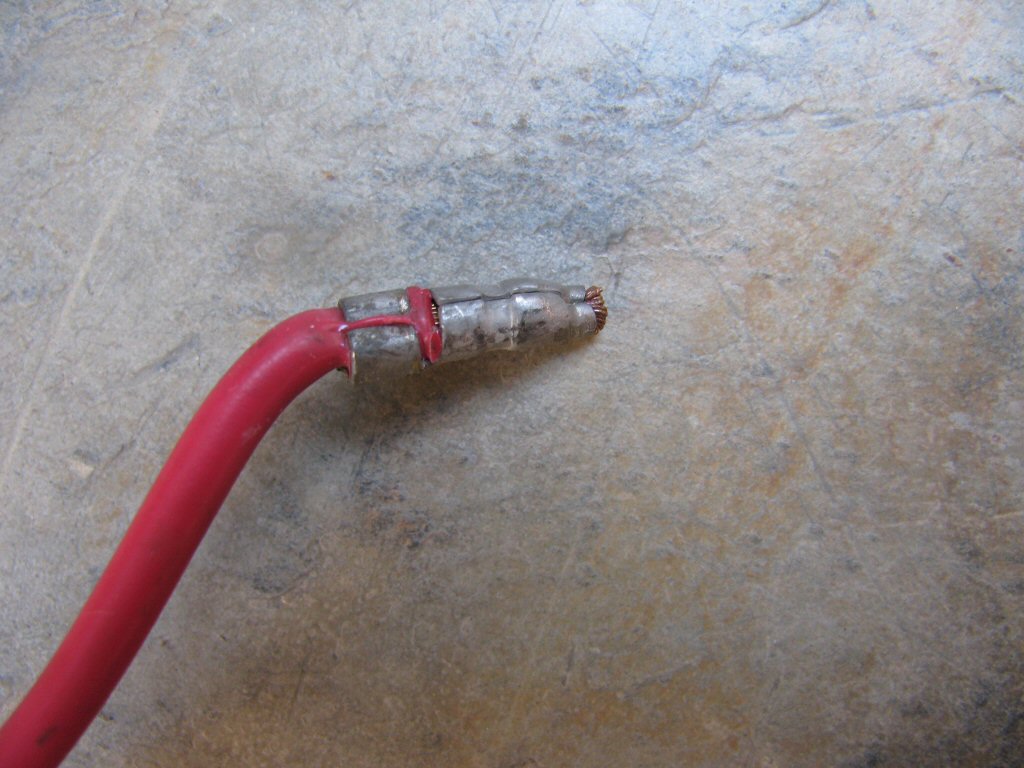

Male bullet terminal with no insulation. Photo courtesy of Gregory Bender.
-
Female bullet terminals: black rubber insulation
Female bullet terminal with black rubber insulation. Photo courtesy of Gregory Bender.
-
3 connection female spade connector: clear plastic insulation

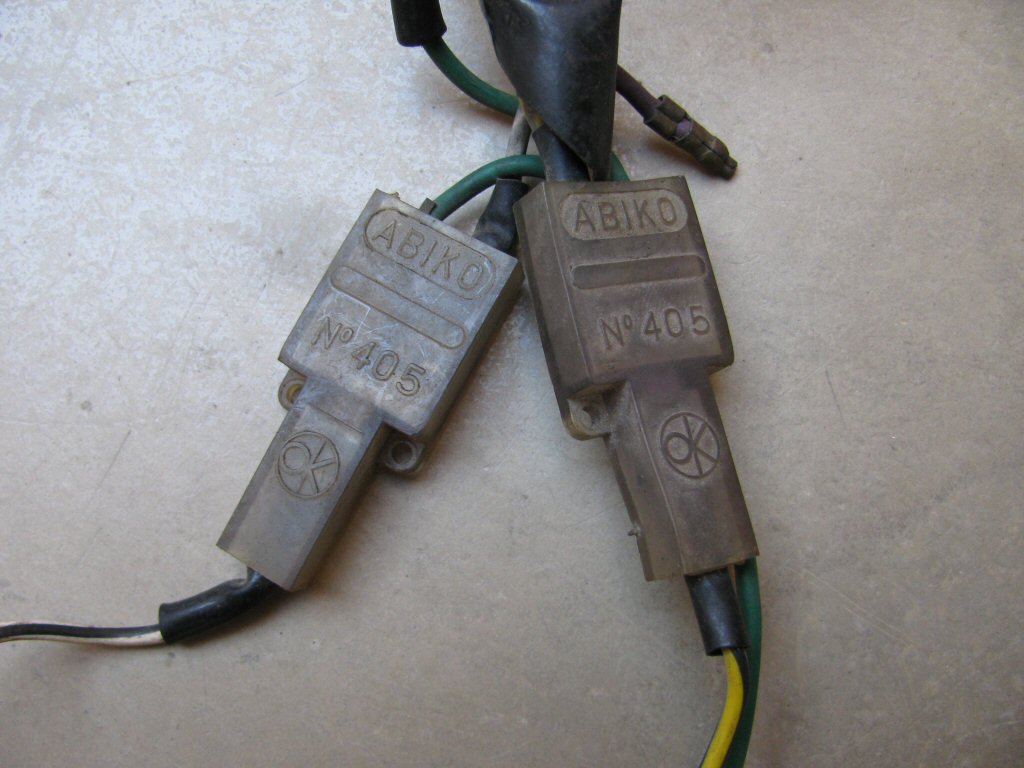

3 connection female spade connector with clear plastic insulation. Photo courtesy of Gregory Bender.
- Male spade terminals: not used anywhere on the original harness
-
Female spade terminals: most had clear plastic or black plastic insulation
Female spade terminal with clear plastic insulation. Photo courtesy of Gregory Bender.
Female spade terminal with black plastic insulation. Photo courtesy of Gregory Bender.
-
Ring and fork terminals: most had black rubber insulation
Ring and fork terminals with black rubber insulation. Photo courtesy of Gregory Bender.
