Generator:

I choose to drop these wires down on the left side of the upper frame member.

Magneti Marelli generator

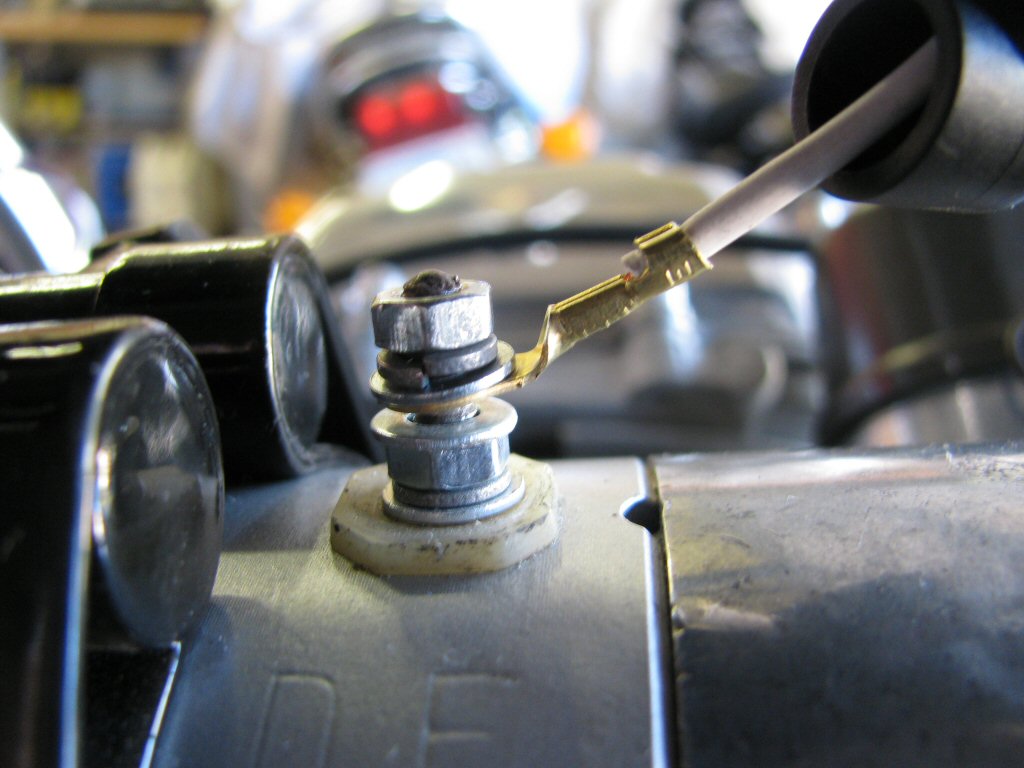

  1. The white wire with the 4 mm ring terminal is secured to the post on the top of the generator.

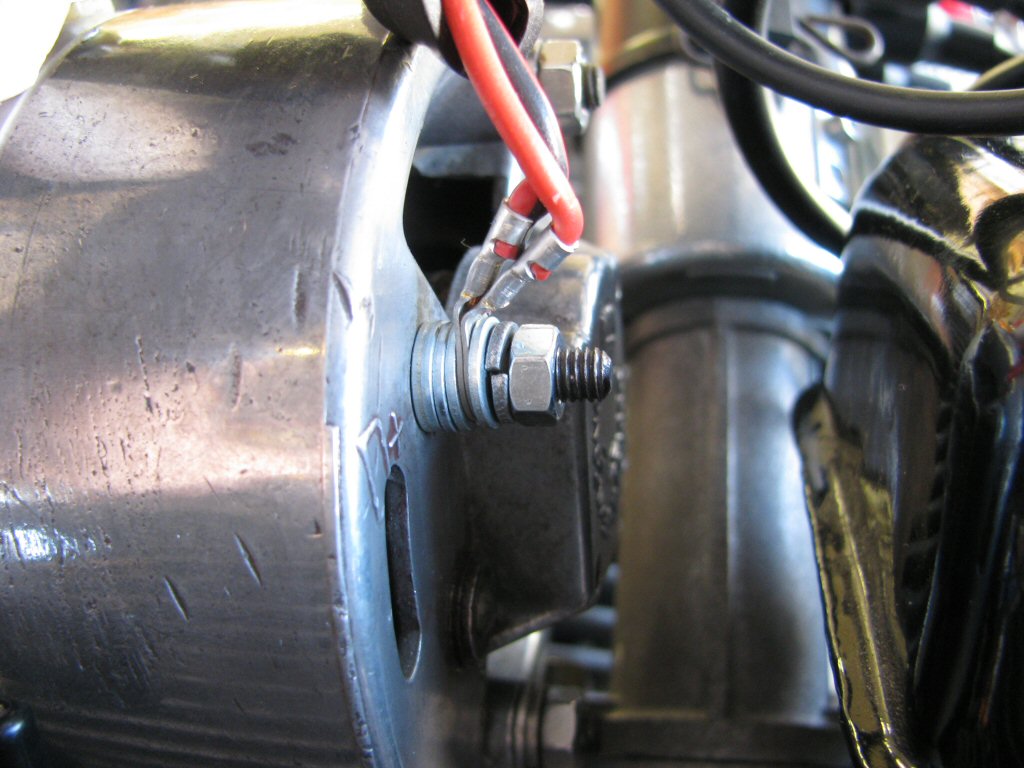

  2. The red wire and the gray/red (or red/white) wire (both with 5 mm ring terminals) are secured to the post on the back of the generator.

Connections - Magneti Marelli generator

Photo courtesy of Gregory Bender.

Photo courtesy of Gregory Bender.

Bosch generator

  1. The white wire with the 5 mm fork terminal is secured to the right post on the top of the generator. This post is further identified by having the threads at top that have been intentionally damaged by the factory to prevent the nut from easily being removed. Hence the need for the fork terminal.
  2. The red wire and the gray/red (or red/white) wire (both with 5 mm ring terminals) are secured to the left post on the top of the generator. In contrast to the right post, the nut can easily be removed from this terminal for fitment of ring terminals.
