Tool box lock replacement

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created:
Updated:

Locks avaiable from McMaster-Carr (USA source)

I extracted this information from Greg Barratt of Stainless Cycle off of the old Topica Loopframe_Guzzi news group (which has now moved to Groups.io). In Greg's own words:

Use the McMaster-Carr part number 13105A75. It is a much nicer lock, doesn't clip on like that chintzy universal one, has a lock nut, keyed alike, waterproof. It comes with a couple of different latches. I use the straight one, cut it way down. Overall I've used 4 of the universal ones, and now 2 of the good ones - there's no comparison.

McMaster-Carr part number 13105A75
McMaster-Carr part number 13105A75

Photo courtesy of McMaster-Carr.

Direct link to image

Charlie Mullendore of Antietam Classic Cycle writes:

I used the toolbox locks recommended by Greg Barratt and they do indeed work well and look quite nice.

Replacement lock pieces and parts.
Replacement lock pieces and parts.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

Replacement lock pieces and parts.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

Direct link to image

Inside view of lock fit to a tool box.
Inside view of lock fit to a tool box.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

Inside view of lock fit to a tool box.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

Direct link to image

Outside view of lock fit to a tool box.
Outside view of lock fit to a tool box.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

Outside view of lock fit to a tool box.

Photo courtesy of Charlie Mullendore of Antietam Classic Cycle.

Direct link to image

Locks available from Lowe and Fletcher (UK source)

Thanks to Richard Harding for sending me this information via email. In Richard's own words:

I had to replace the locks on the toolbox, and the McMaster-Carr option isn't easily available in the UK so I thought you might be interested in this option, which might be more common in Europe.

It's the Lowe and Fletcher 1361 11mm cam lock (that page lists 1361 as a variation).

The tab is way too long, so it needs to be cut down. A couple of photos are attached

Hope that's useful

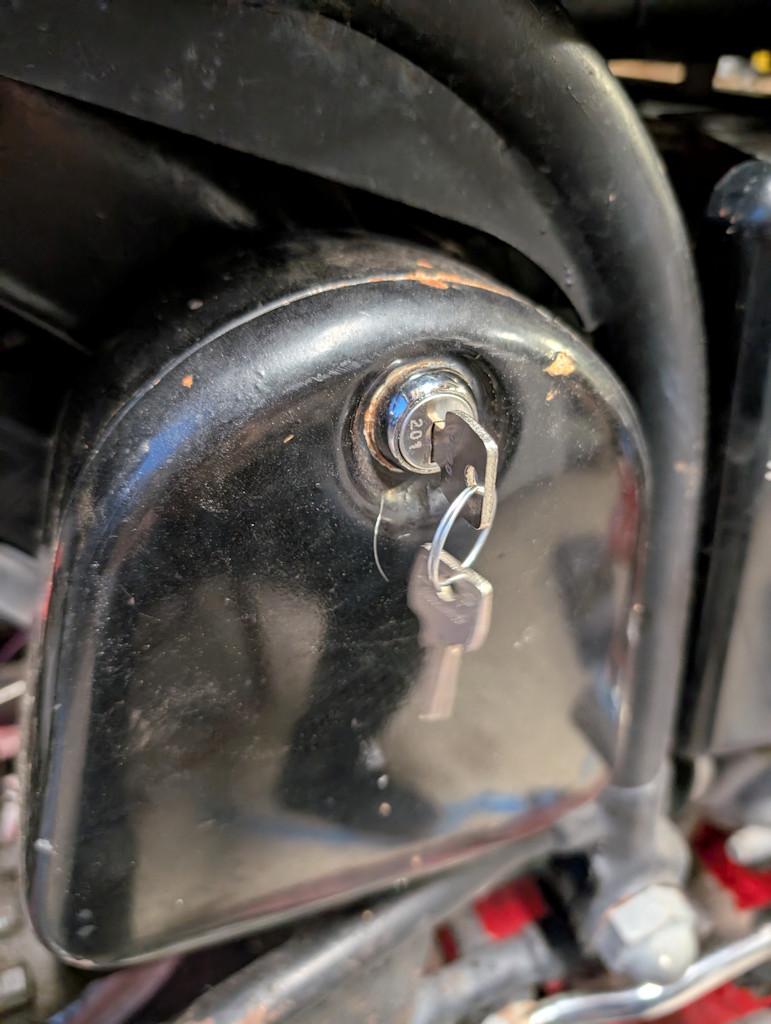

Outside view of lock fit to a tool box.
Outside view of lock fit to a tool box.

Photo courtesy of Richard Harding.

Outside view of lock fit to a tool box.

Photo courtesy of Richard Harding.

Direct link to image

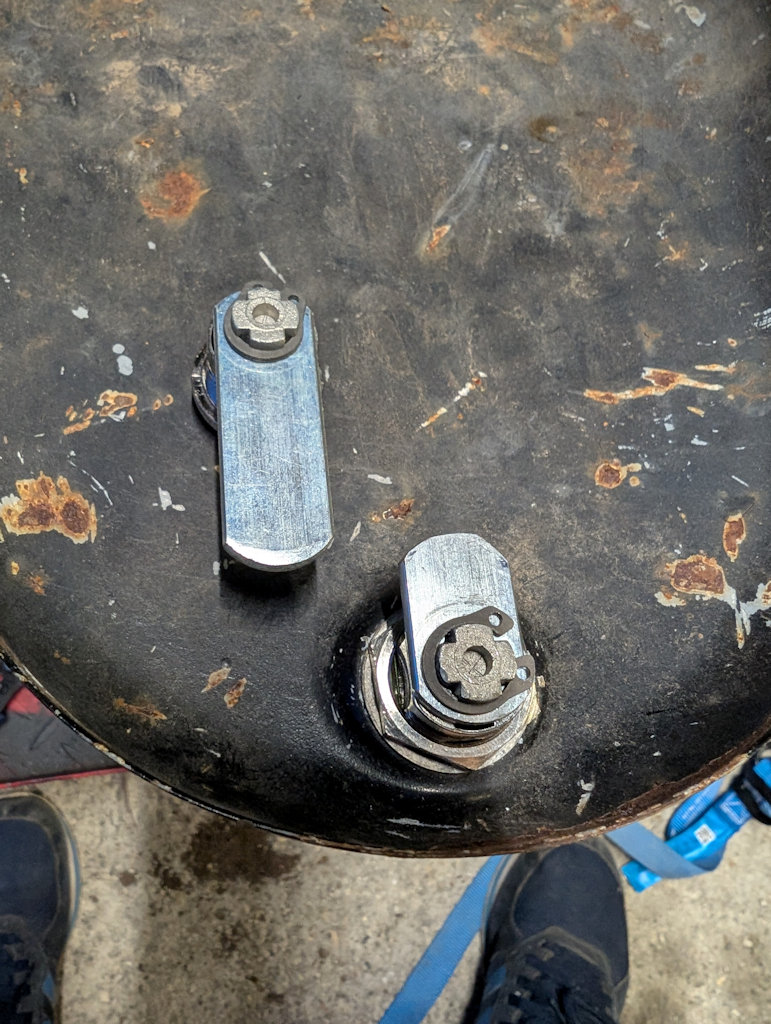

Inside view of lock fit to a tool box.
Inside view of lock fit to a tool box.

Photo courtesy of Richard Harding.

Inside view of lock fit to a tool box.

Photo courtesy of Richard Harding.
