Throttle assembly (Tommaselli Super Pratic B)

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created: 2016 March 10

Updated: 2016 March 10

I took these photos while assemblying the throttle for my Moto Guzzi Ambassador².

Here are all of the components that comprise the throttle. — Here are all of the components that comprise the throttle.
Photo courtesy of Gregory Bender.
Here are all of the components that comprise the throttle.
Photo courtesy of Gregory Bender.
Direct link to image

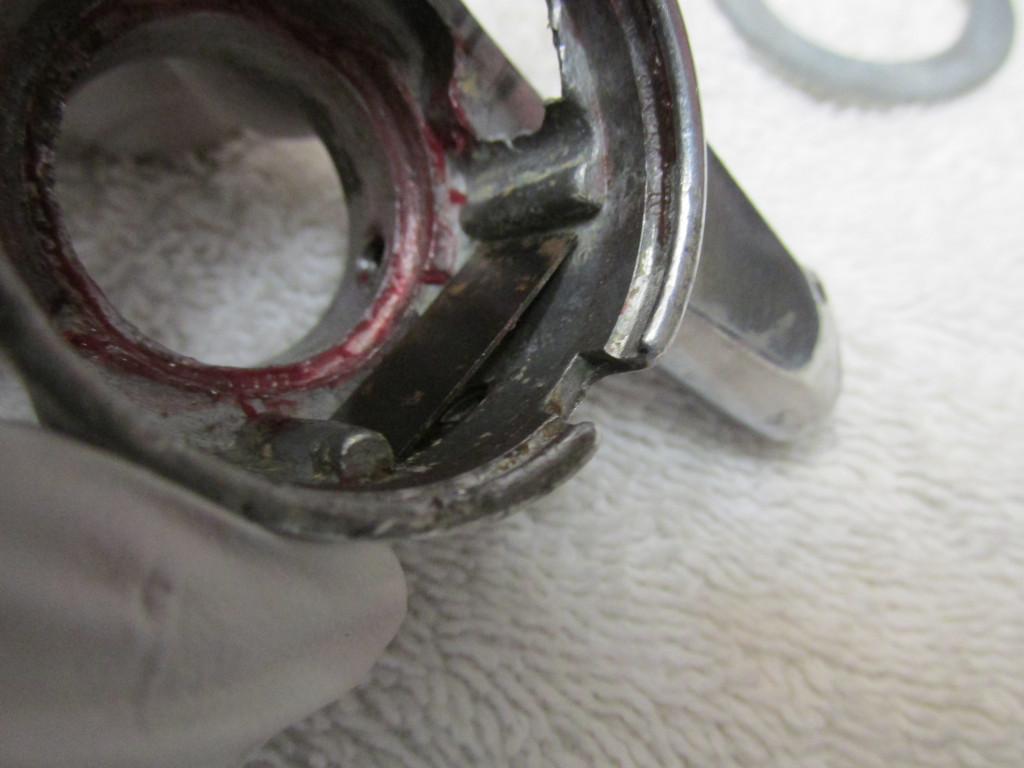

Start with the rub block. — Start with the rub block.
Photo courtesy of Gregory Bender.
Start with the rub block.
Photo courtesy of Gregory Bender.
Direct link to image

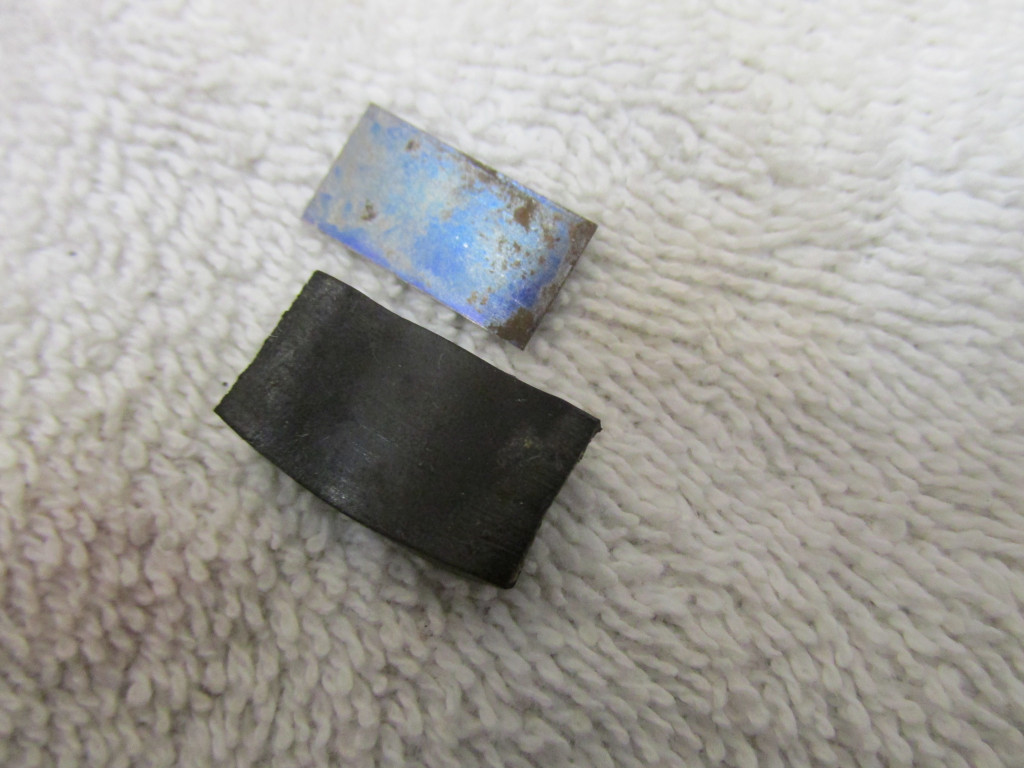

Fit the metal plate first. Note that I've applied some grease to the surface on which the throttle tube will rotate. — Fit the metal plate first. Note that I've applied some grease to the surface on which the throttle tube will rotate.
Photo courtesy of Gregory Bender.
Fit the metal plate first. Note that I've applied some grease to the surface on which the throttle tube will rotate.
Photo courtesy of Gregory Bender.
Direct link to image

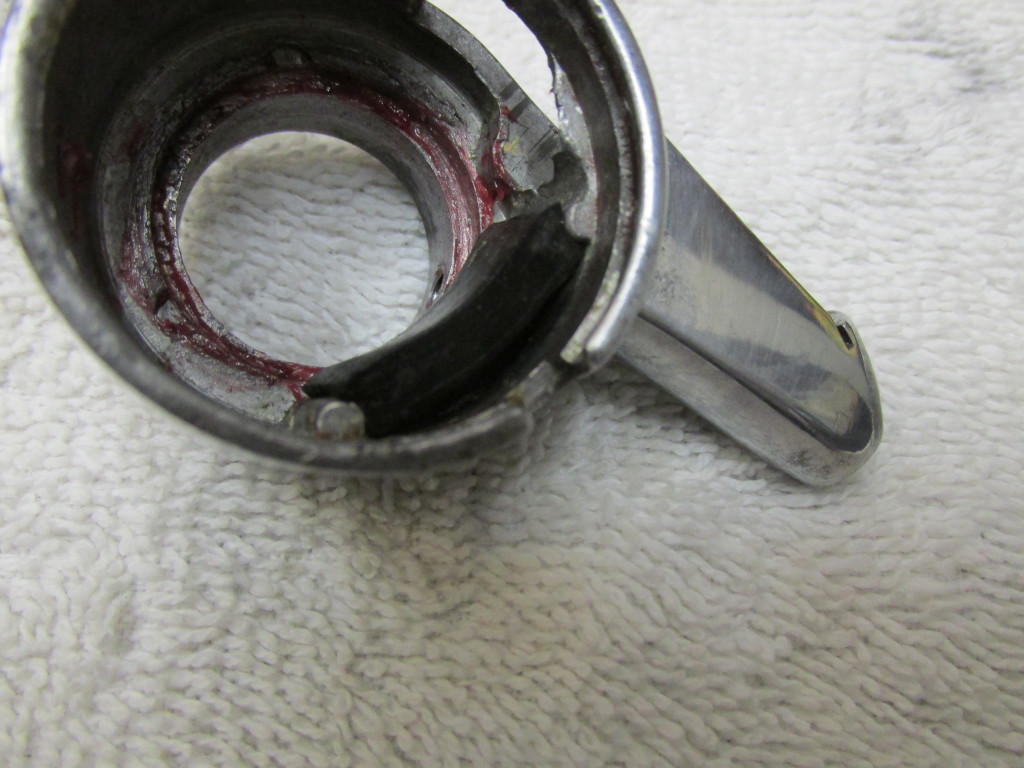

Then fit the rubber friction block. — Then fit the rubber friction block.
Photo courtesy of Gregory Bender.
Then fit the rubber friction block.
Photo courtesy of Gregory Bender.
Direct link to image

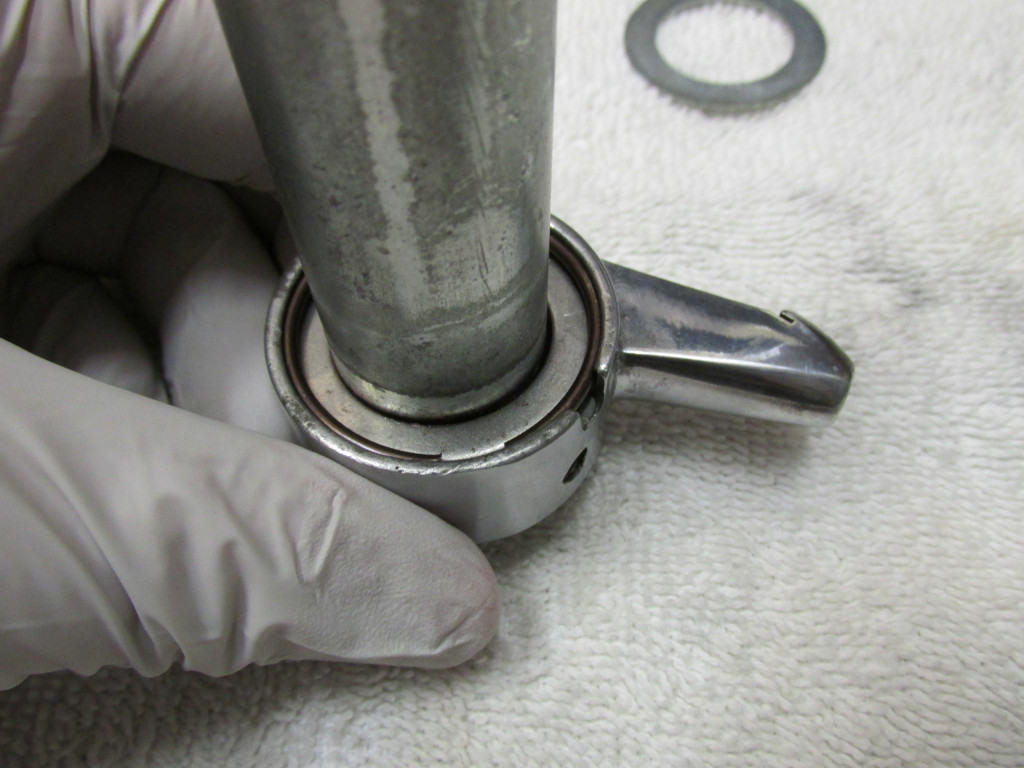

Fit the throttle tube, locating the chain pull properly. — Fit the throttle tube, locating the chain pull properly.
Photo courtesy of Gregory Bender.
Fit the throttle tube, locating the chain pull properly.
Photo courtesy of Gregory Bender.
Direct link to image

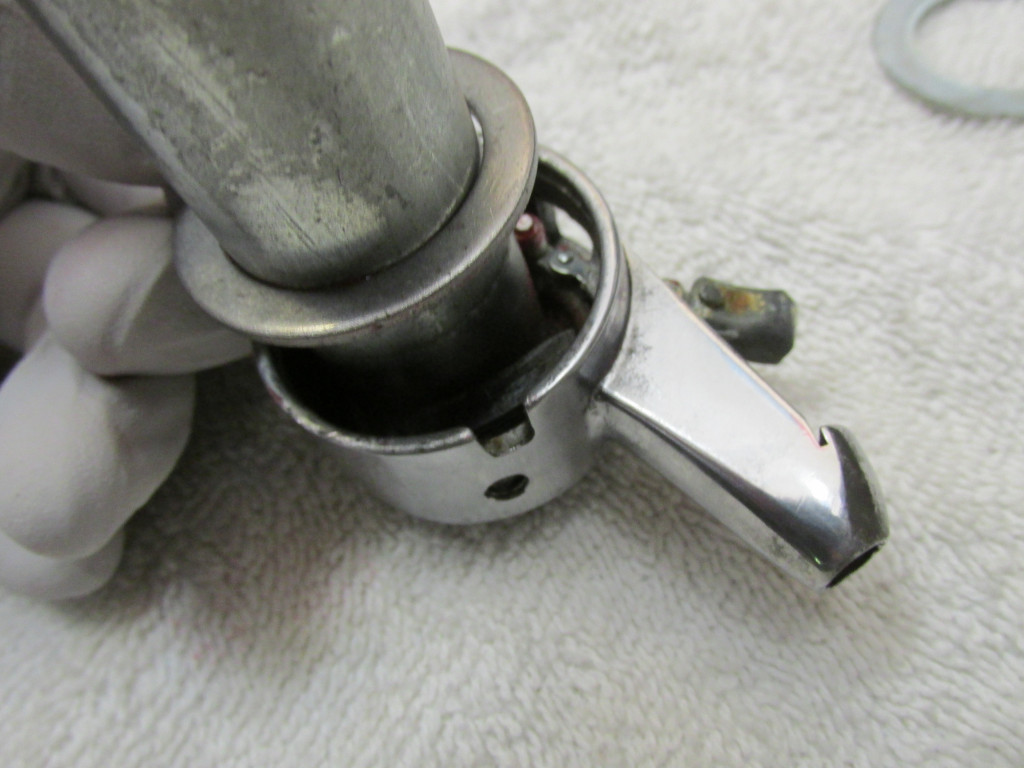

Slide the retaining washer over the tube. — Slide the retaining washer over the tube.
Photo courtesy of Gregory Bender.
Slide the retaining washer over the tube.
Photo courtesy of Gregory Bender.
Direct link to image

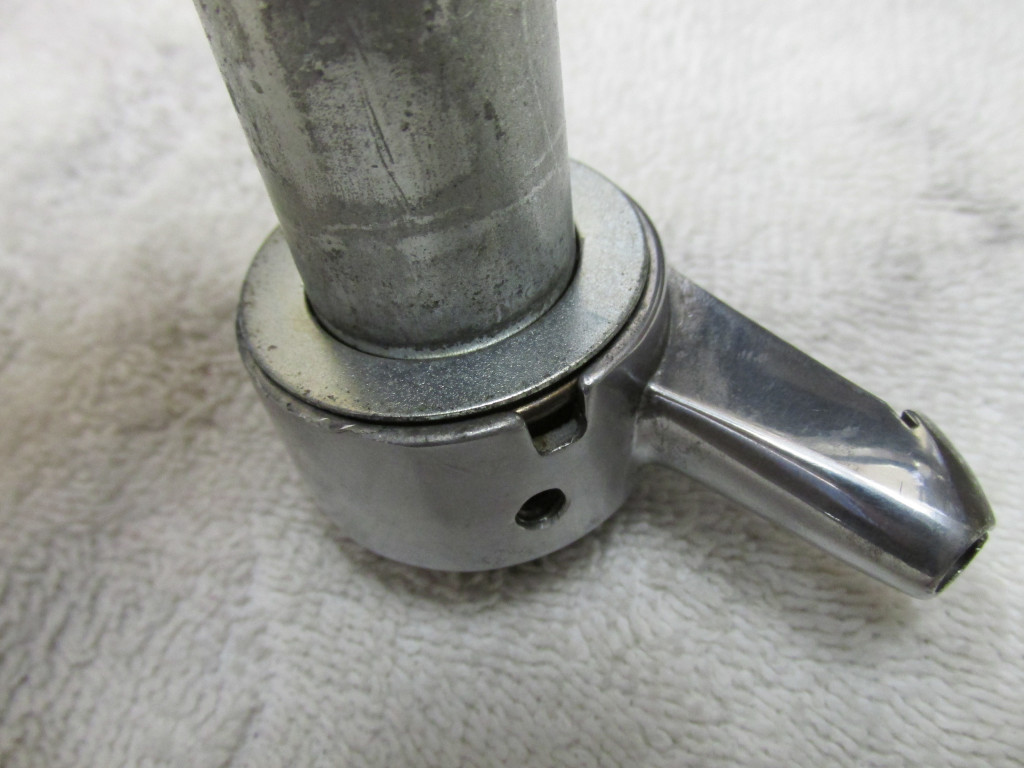

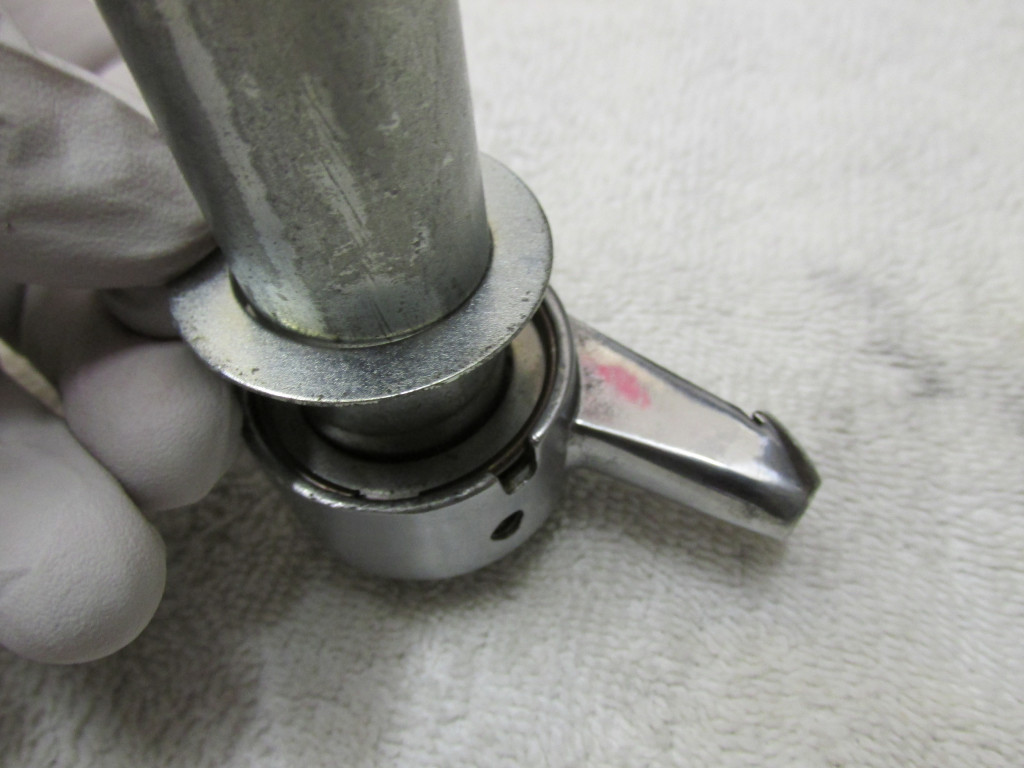

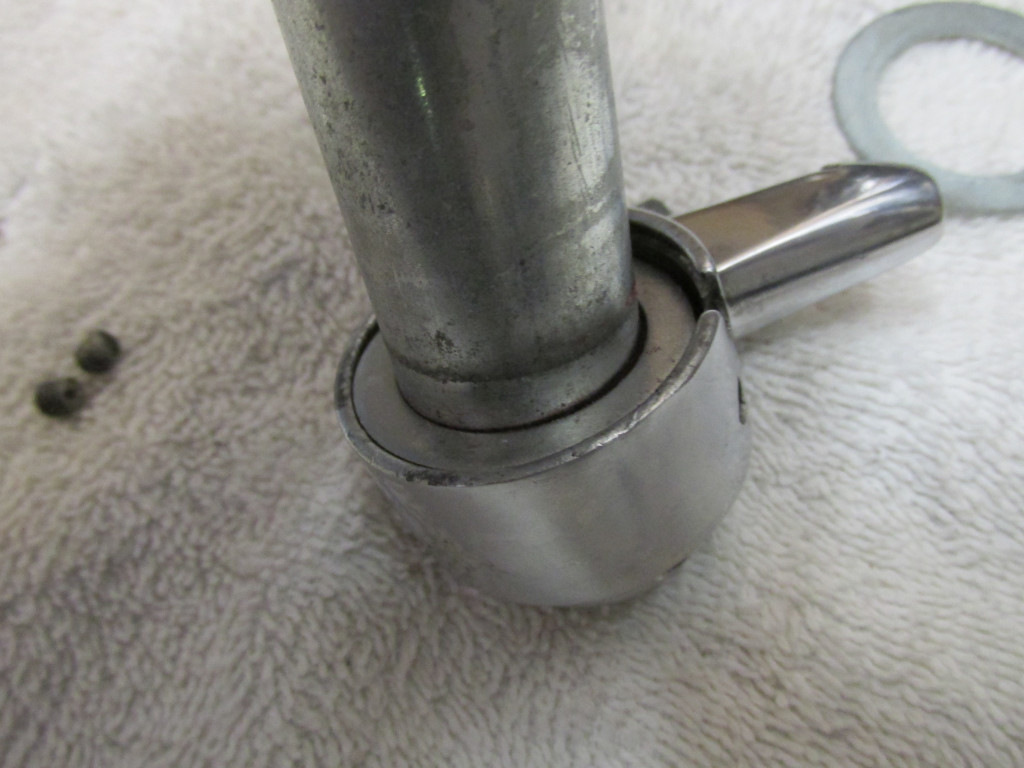

Fit the retaining washer. — Fit the retaining washer.
Photo courtesy of Gregory Bender.
Fit the retaining washer.
Photo courtesy of Gregory Bender.
Direct link to image

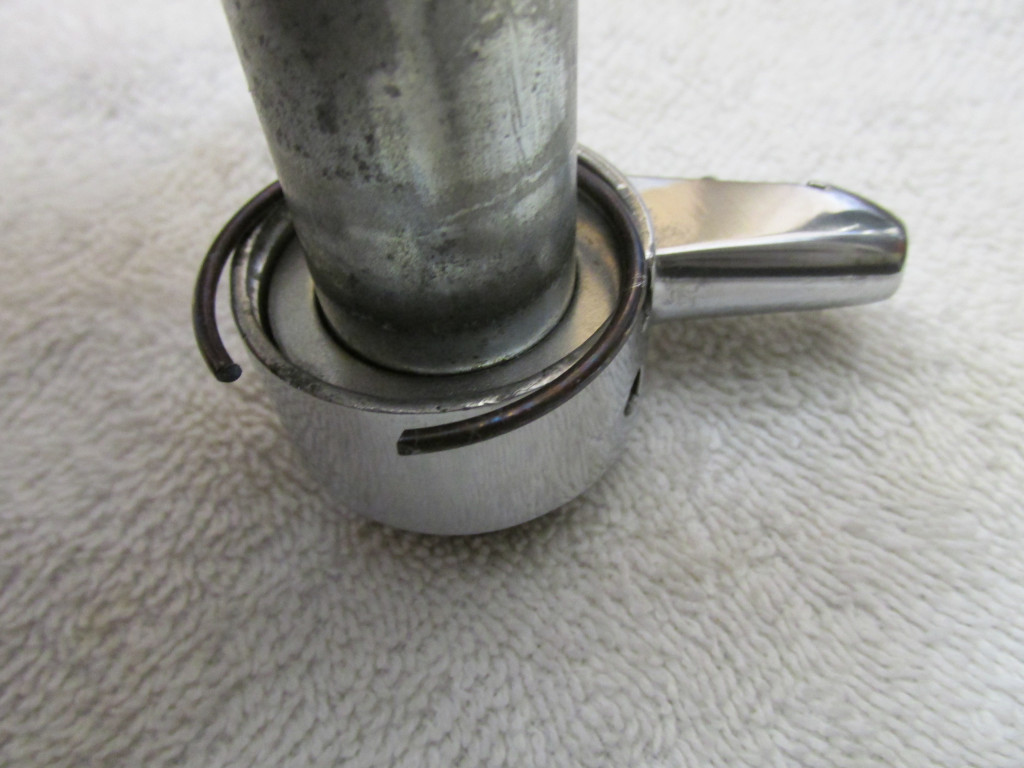

Slide the retaining ring over the tube. — Slide the retaining ring over the tube.
Photo courtesy of Gregory Bender.
Slide the retaining ring over the tube.
Photo courtesy of Gregory Bender.
Direct link to image

Fit the retaining ring in place within its groove. — Fit the retaining ring in place within its groove.
Photo courtesy of Gregory Bender.
Fit the retaining ring in place within its groove.
Photo courtesy of Gregory Bender.
Direct link to image

Slide the friction ring in place. — Slide the friction ring in place.
Photo courtesy of Gregory Bender.
Slide the friction ring in place.
Photo courtesy of Gregory Bender.
Direct link to image

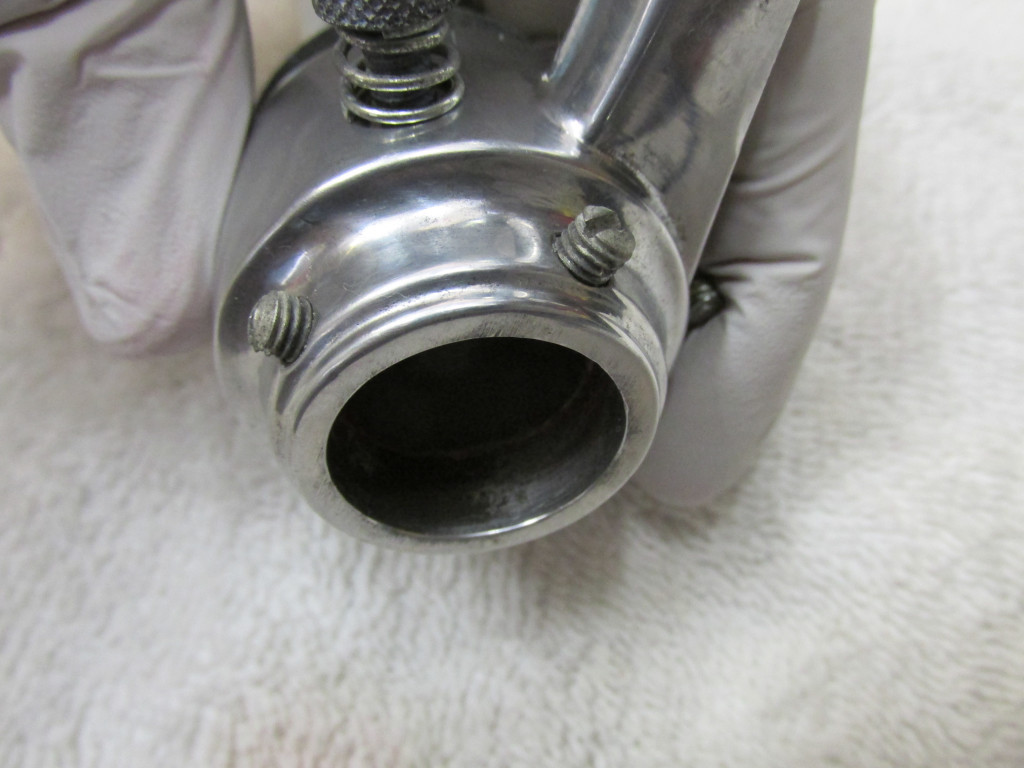

Fit the friction ring in place. The one in the photo is metal. Some are plastic. — Fit the friction ring in place. The one in the photo is metal. Some are plastic.
Photo courtesy of Gregory Bender.
Fit the friction ring in place. The one in the photo is metal. Some are plastic.
Photo courtesy of Gregory Bender.
Direct link to image

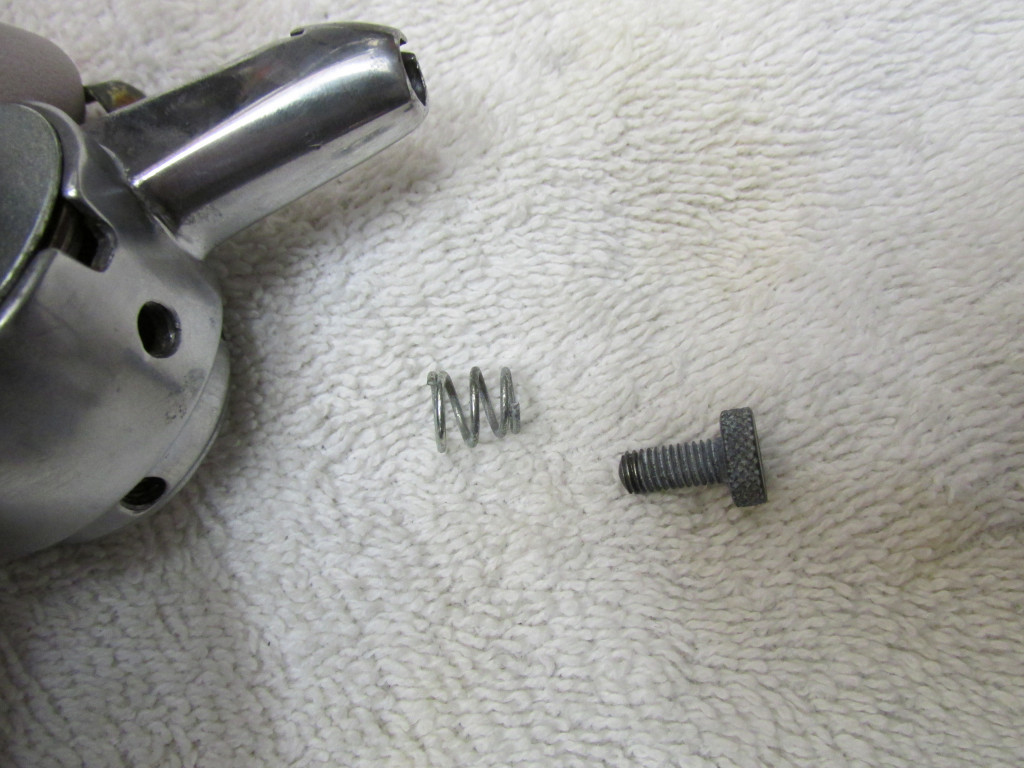

This is the thumb screw and spring that will press against the rub block. The spring is cone shaped. The smaller diameter end should fit against the head of the thumb screw. — This is the thumb screw and spring that will press against the rub block. The spring is cone shaped. The smaller diameter end should fit against the head of the thumb screw.
Photo courtesy of Gregory Bender.
This is the thumb screw and spring that will press against the rub block. The spring is cone shaped. The smaller diameter end should fit against the head of the thumb screw.
Photo courtesy of Gregory Bender.
Direct link to image

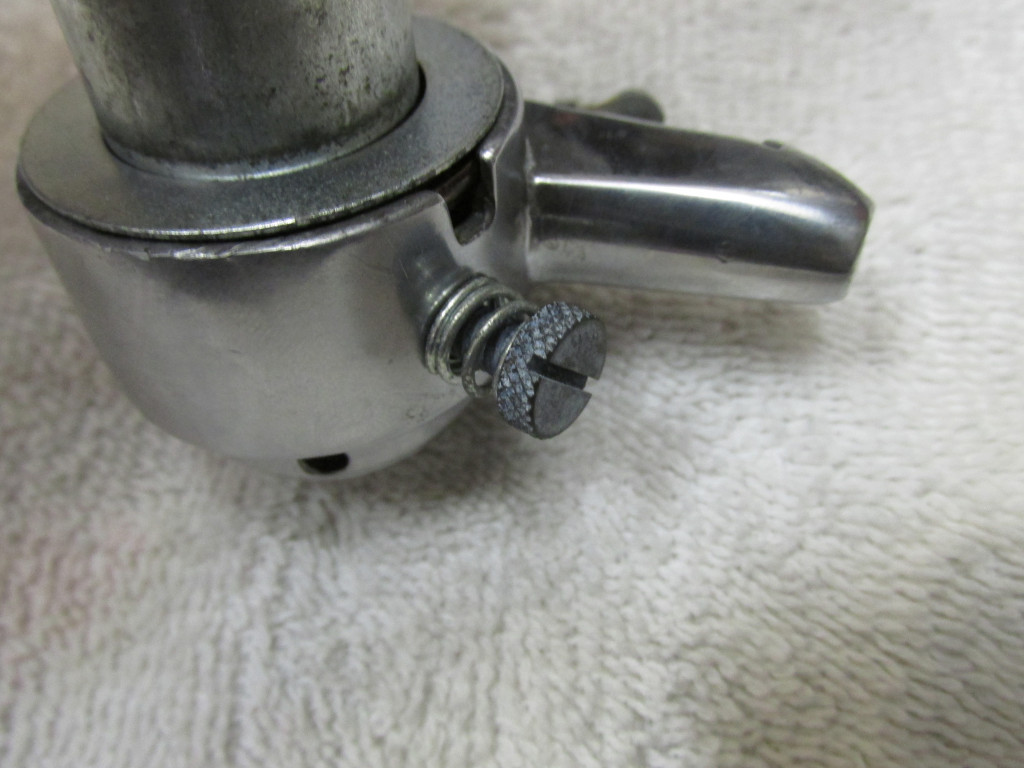

Thumb screw and spring are in place. — Thumb screw and spring are in place.
Photo courtesy of Gregory Bender.
Thumb screw and spring are in place.
Photo courtesy of Gregory Bender.
Direct link to image

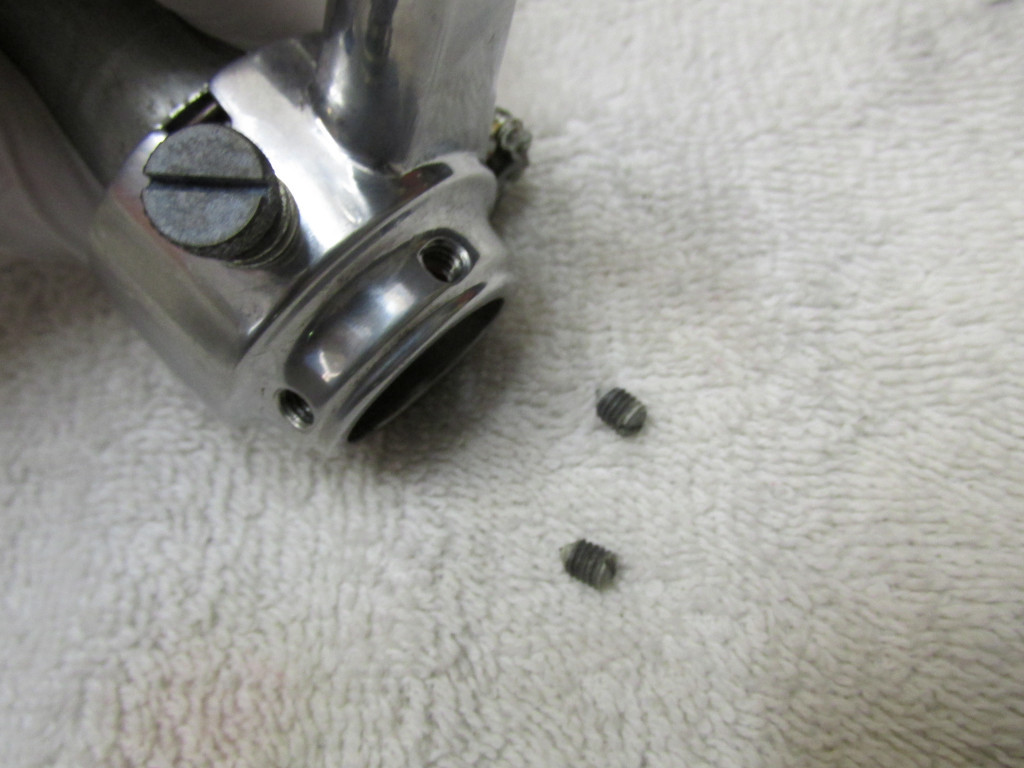

Set screws. — Set screws.
Photo courtesy of Gregory Bender.
Set screws.
Photo courtesy of Gregory Bender.
Direct link to image

Set screws in place. — Set screws in place.
Photo courtesy of Gregory Bender.
Set screws in place.
Photo courtesy of Gregory Bender.
Direct link to image

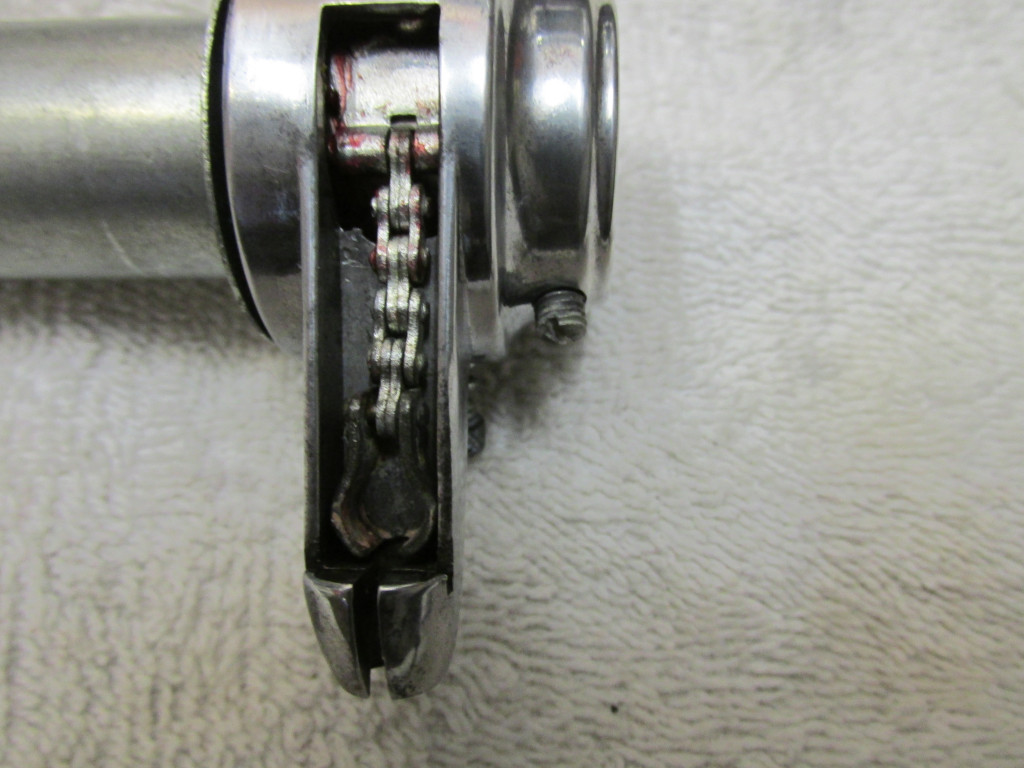

The chain is next to be covered. — The chain is next to be covered.
Photo courtesy of Gregory Bender.
The chain is next to be covered.
Photo courtesy of Gregory Bender.
Direct link to image

Fit the cover in place. — Fit the cover in place.
Photo courtesy of Gregory Bender.
Fit the cover in place.
Photo courtesy of Gregory Bender.
Direct link to image

Secure the cover with a set screw. — Secure the cover with a set screw.
Photo courtesy of Gregory Bender.
Secure the cover with a set screw.
Photo courtesy of Gregory Bender.
Direct link to image

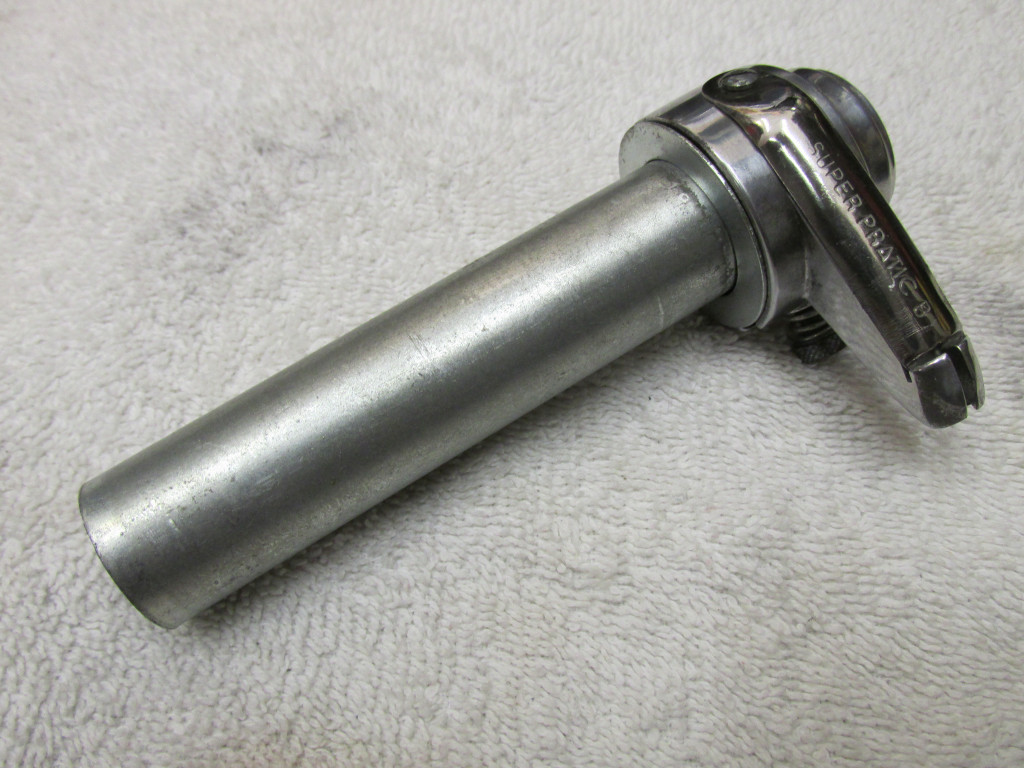

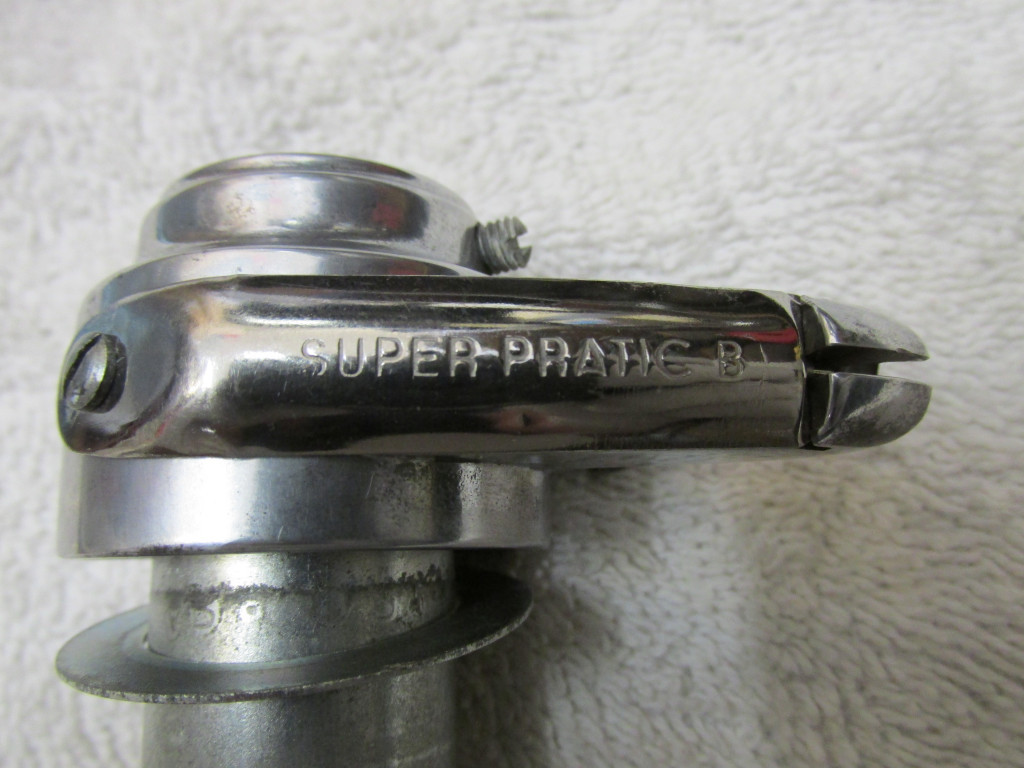

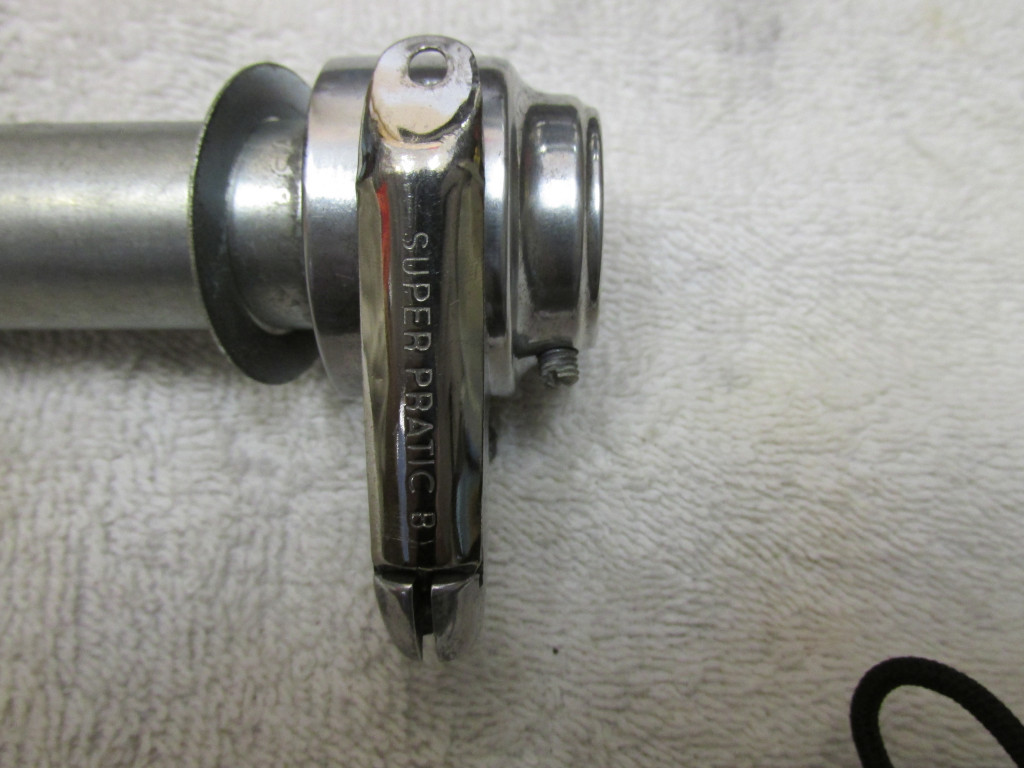

The assembled throttle. — The assembled throttle.
Photo courtesy of Gregory Bender.
The assembled throttle.
Photo courtesy of Gregory Bender.
