Leg shield crash bar bung measurements
Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models
Updated:
I took careful measurements of a pair of bent crash bars that were originally used to mount leg shields.
The bungs are threaded to 6 mm × 1 mm and have an OD of 14 mm. They sit proud of the crash bar by 3 mm. The tube used for the through hole is 6.95 mm ID × 10 mm OD × 28 mm long.
Bung King is one source for threaded bungs.

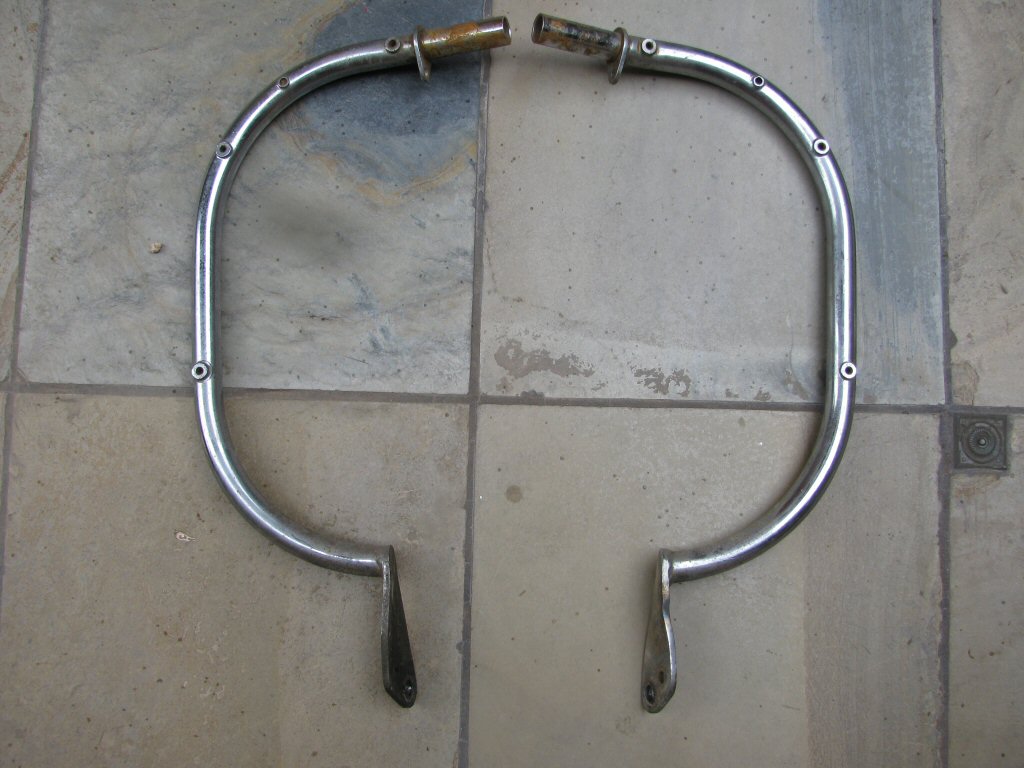

![Left and right crash bars used to mount leg shields.](mg_images/leg_shields_crash_bar_01.jpg)
Photo courtesy of Gregory Bender.

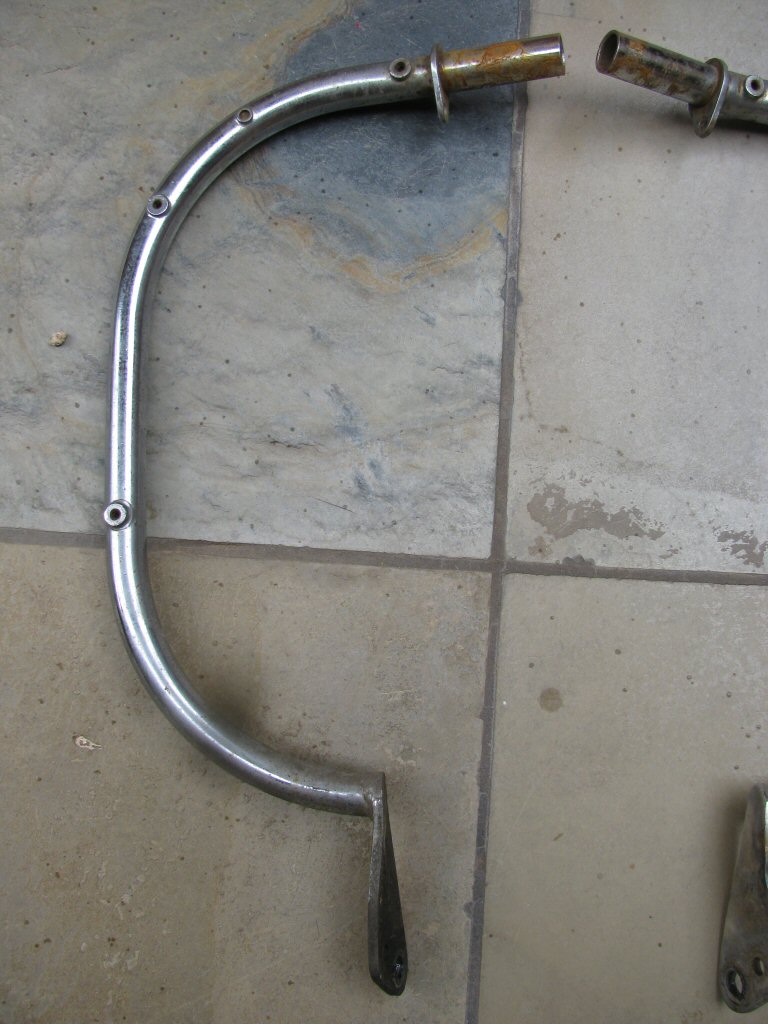

![Left crash bar used to mount leg shields.](mg_images/leg_shields_crash_bar_02.jpg)
Photo courtesy of Gregory Bender.

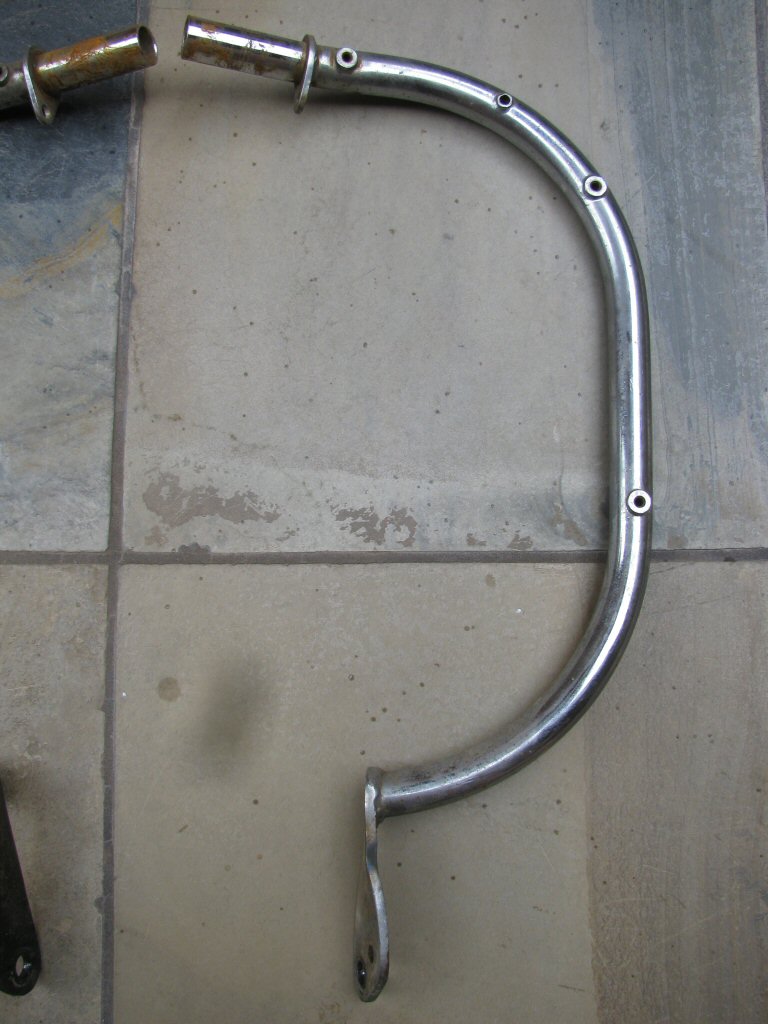

![Right crash bar used to mount leg shields.](mg_images/leg_shields_crash_bar_03.jpg)
Photo courtesy of Gregory Bender.

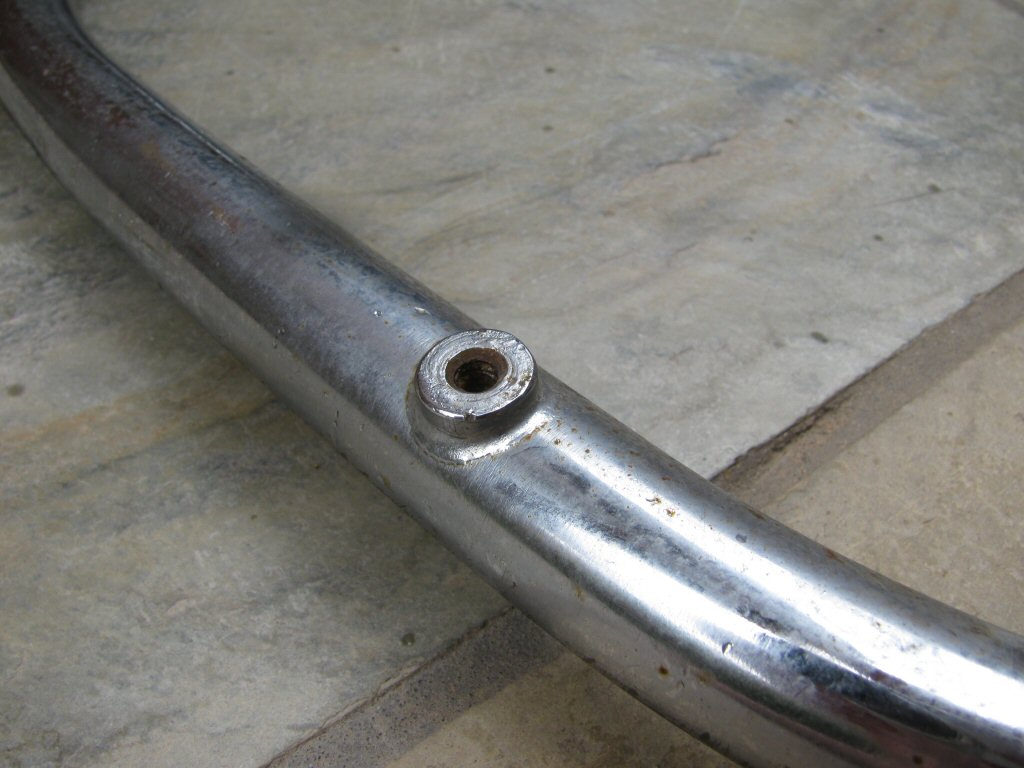

![Threaded bung.](mg_images/leg_shields_crash_bar_04.jpg)
Photo courtesy of Gregory Bender.
![Threaded bung, through hole, threaded bung.](mg_images/leg_shields_crash_bar_05.jpg)
Photo courtesy of Gregory Bender.
![Threaded bung.](mg_images/leg_shields_crash_bar_06.jpg)
Photo courtesy of Gregory Bender.
![Threaded bung, through hole, threaded bung.](mg_images/leg_shields_crash_bar_07.jpg)
Photo courtesy of Gregory Bender.
![Through hole.](mg_images/leg_shields_crash_bar_08.jpg)
Photo courtesy of Gregory Bender.
![Right side crash bar; ~19 mm to ~20 mm measurement (I would use 20 mm as that is consistent with the measurement I took on the left side crash bar).](mg_images/leg_shields_crash_bar_09.jpg)
Photo courtesy of Gregory Bender.
![Right side crash bar; ~100 mm measurement.](mg_images/leg_shields_crash_bar_10.jpg)
Photo courtesy of Gregory Bender.
![Right side crash bar; ~77 mm measurement.](mg_images/leg_shields_crash_bar_11.jpg)
Photo courtesy of Gregory Bender.

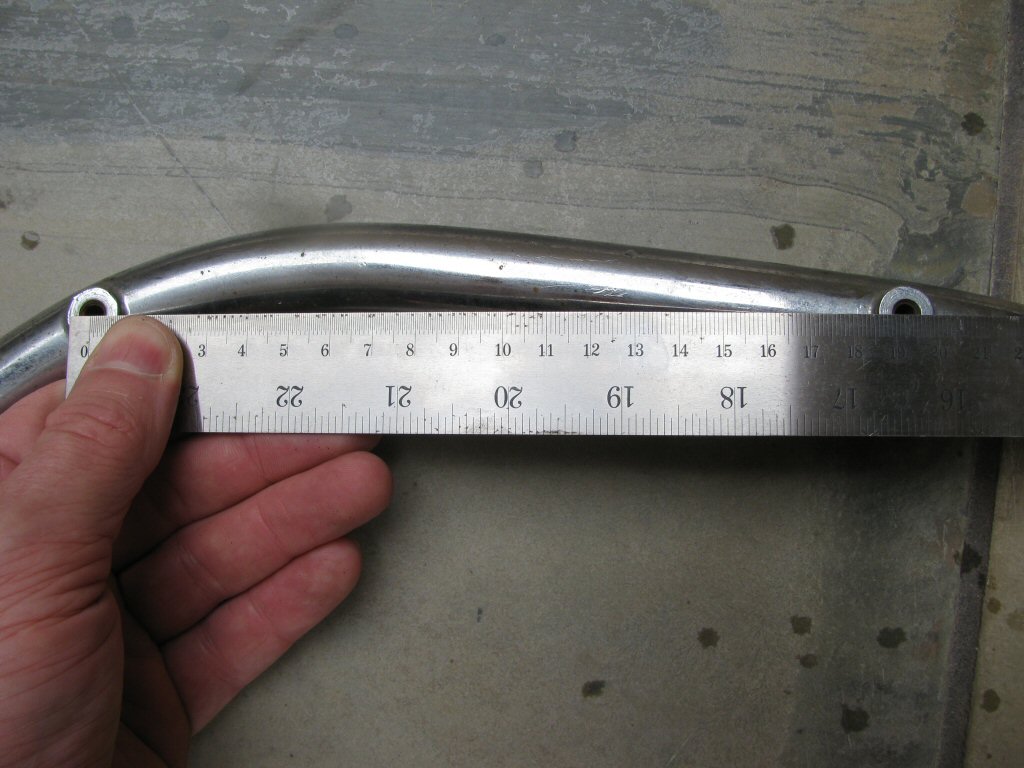

![Right side crash bar.](mg_images/leg_shields_crash_bar_12.jpg)
Photo courtesy of Gregory Bender.
![Right side crash bar; ~193 mm measurement.](mg_images/leg_shields_crash_bar_13.jpg)
Photo courtesy of Gregory Bender.
![Left side crash bar; ~20 mm measurement.](mg_images/leg_shields_crash_bar_14.jpg)
Photo courtesy of Gregory Bender.

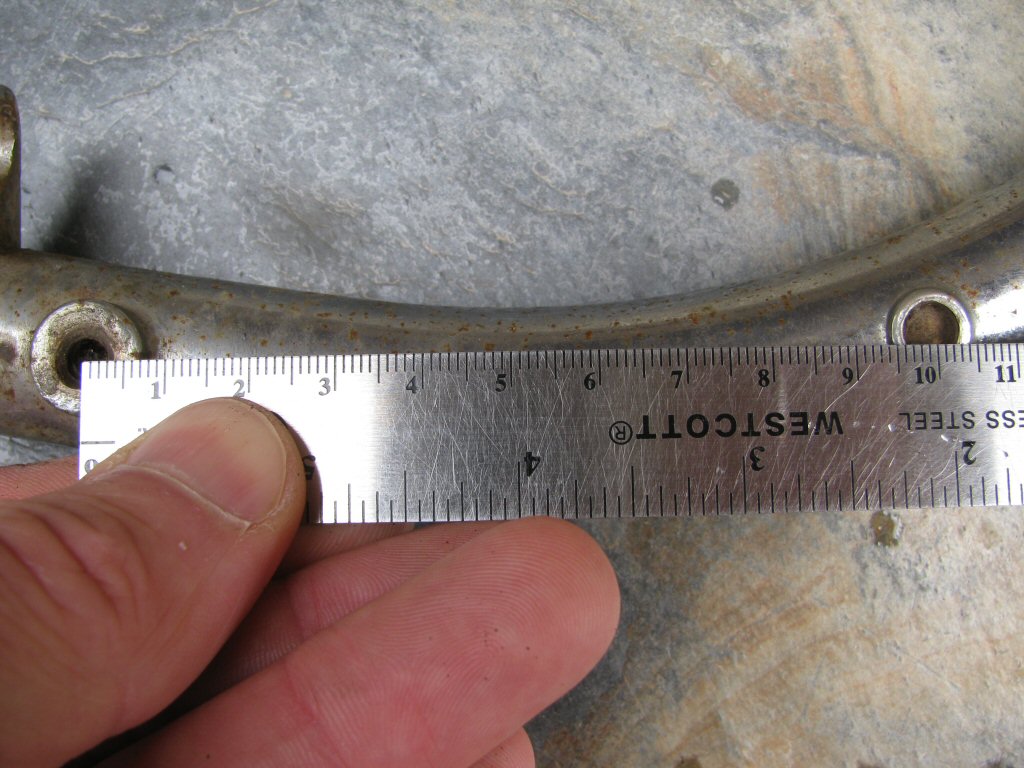

![Left side crash bar; ~100 mm measurement.](mg_images/leg_shields_crash_bar_15.jpg)
Photo courtesy of Gregory Bender.
![Left side crash bar; ~77 mm measurement.](mg_images/leg_shields_crash_bar_16.jpg)
Photo courtesy of Gregory Bender.

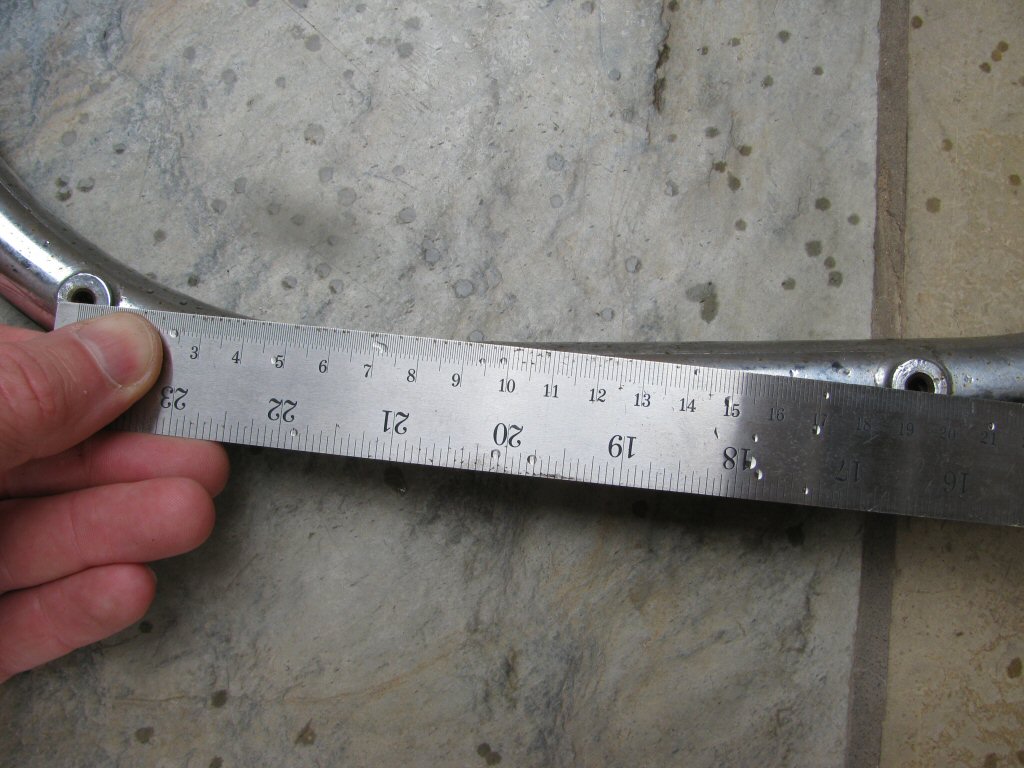

![Left side crash bar.](mg_images/leg_shields_crash_bar_17.jpg)
