Keys for the ignition switch

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created:
Updated:

I extracted this information from Fred Sahms off of the old Topica Loopframe_Guzzi news group (which has now moved to Groups.io) AND from Key Men AND from Keys4Classics AND from the Moto Guzzi National Owners Club (MGNOC) publication Tips for Guzzis, Volume II AND from Charlie Mullendore of Antietam Classic Cycle, AND from Bill Dudley.

The ignition switch was made by Magneti Marelli (Italian company). There will be a letter code followed by two numbers stamped on the switch. The letter code, usually E or F or G, indicates the key code blank that you'll need.

E series key blanks (code series E1 - E78):

Ilco R63SP key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.
Ilco R63SP key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.

Photo courtesy of Key Men.

Ilco R63SP key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.

Photo courtesy of Key Men.

Direct link to image

  • Curtis: FT28
  • Dominion: R63SP
  • Hillman: M11 (It is for a Master brand padlock)
  • Ilco: R63SP
  • Silca: AF5A

    From Gregory Bender:

    The SILCA AF5A works equally well in the E series locks. Again, Keys4Classics out of Australia is a fantastic source.

  • Taylor: F69E

F series key blanks (code series F1 - F78):

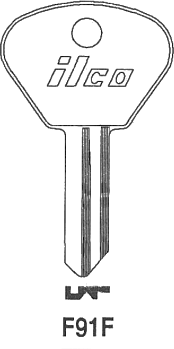

Ilco F91F key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.
Ilco F91F key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.

Photo courtesy of Key Men.

Ilco F91F key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.

Photo courtesy of Key Men.

Direct link to image

  • Curtis: FT29
  • Dominion: 63SP
  • Ilco: 63SP
  • Ilco: F91FS
  • Silca: AF5B

    From Gregory Bender:

    I finally sourced an original ignition switch for my Ambassador but it was missing the key. I ordered several replacements from Keys4Classics out of Australia. My lock is an F series and the key blanks that I received are SILCA AF5B. They work perfectly in my lock. FYI, Keys4Classsics did an excellent job of responding to my emails and shipping was inexpensive and prompt. First rate.

  • Taylor: F69F

G series key blanks (code series G1 - G78):

Ilco F91G key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.
Ilco F91G key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.

Photo courtesy of Key Men.

Ilco F91G key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.

Photo courtesy of Key Men.

Direct link to image

  • Curtis: FT30
  • Dominion: 63SG
  • Ilco: F91G

    Key Men code F91G

    From Bill Dudley:

    My local locksmith found an Ilco blank marked 1645R, which fits the lock perfectly.

  • Ilco: F91GS
  • Silca: AF5C
  • Taylor: F69G

H series key blanks (code series H1 - H78):

Ilco F91H key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.
Ilco F91H key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.

Photo courtesy of Key Men.

Ilco F91H key blank. Note: The key pattern shown is the keyhole that the key goes into, not the view from the tip of the key.

Photo courtesy of Key Men.

Direct link to image

  • Curtis: FT31
  • Dominion: 63SH
  • Ilco: F91H

    Key Men code F91H

  • Silca: AF5D
  • Taylor: F69H
  • OEM: Sipea
