Ignition switch boot (MG# 13735840)

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created:
Updated:

Thanks to Paul Linn and Charlie Mullendore of Antietam Classic Cycle who posted this information on the old Yahoo! Loopframe_Guzzi news group (which has now moved to Groups.io).

The original boot for the ignition switch (MG# 13735840; as used on police models where the switch was located in place of the left tool box) has the following dimensions:

  • Length = 58 mm (~2.3 inch)
  • Large end inside diameter = 40 mm (~1.6 inch)
  • Small end inside diameter = 12 mm (~0.45 inch)

McMaster-Carr part number 5298K82 is a suitable substitute.

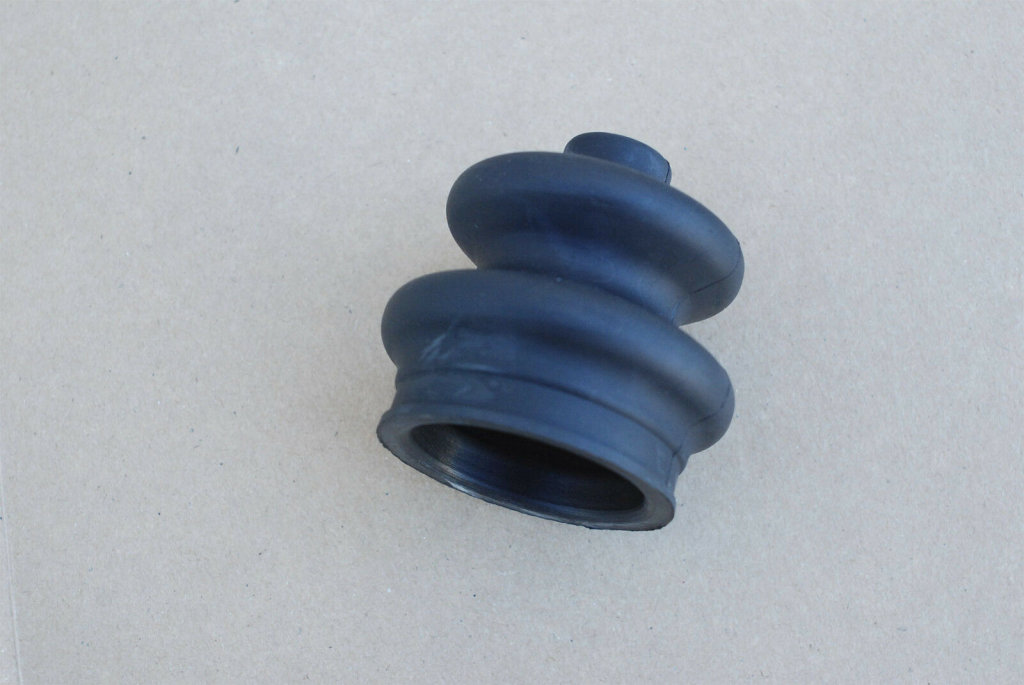

Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).
Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).

Photo courtesy of Moe Moore of Cycle Garden.

Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).

Photo courtesy of Moe Moore of Cycle Garden.

Direct link to image

Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).
Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).

Photo courtesy of Moe Moore of Cycle Garden.

Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).

Photo courtesy of Moe Moore of Cycle Garden.

Direct link to image

Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).
Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).

Photo courtesy of Moe Moore of Cycle Garden.

Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).

Photo courtesy of Moe Moore of Cycle Garden.

Direct link to image

Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).
Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).

Photo courtesy of Harper Moto Guzzi.

Rubber boot for the ignition switch on police versions of the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models (MG# 13735840).

Photo courtesy of Harper Moto Guzzi.
