Handlebar switch - Suzuki 577-6 (ASAHI-DENSO)
Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models
Created:
Updated:
// //
Buy a wiring harness for this switch
Mike Ittner was kind enough to let me borrow his switch so I might create this cross reference. This switch was used on the 1973 - 1977 Suzuki GT 750 (Water Buffalo).

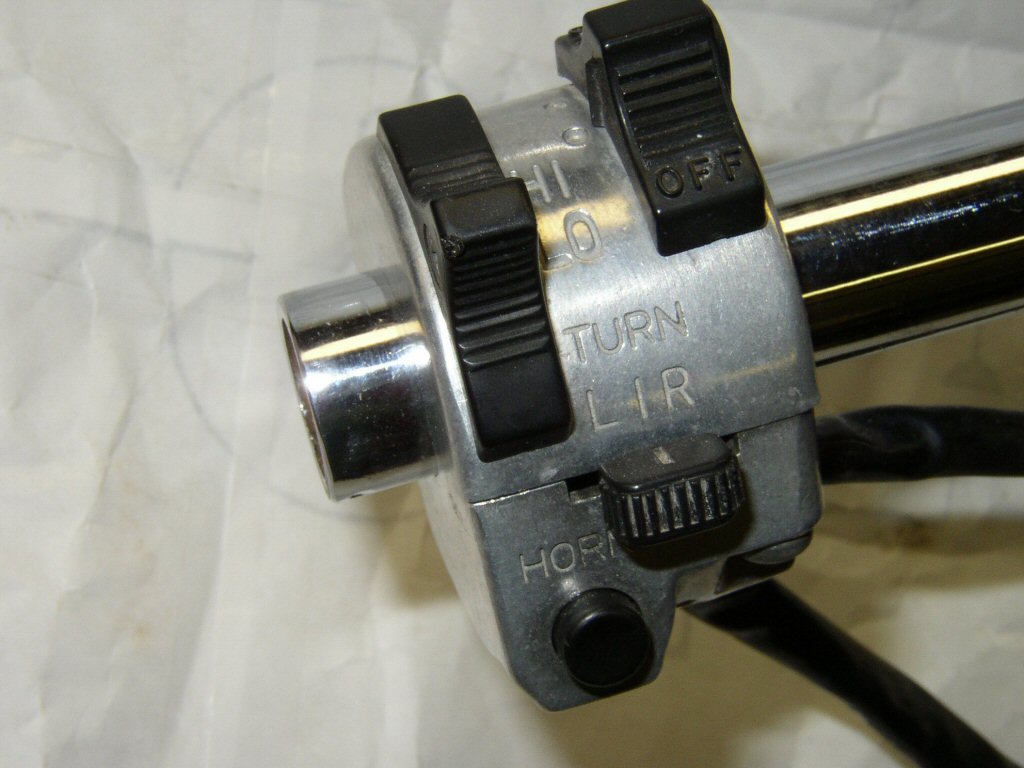

Photo courtesy of Mike Ittner.

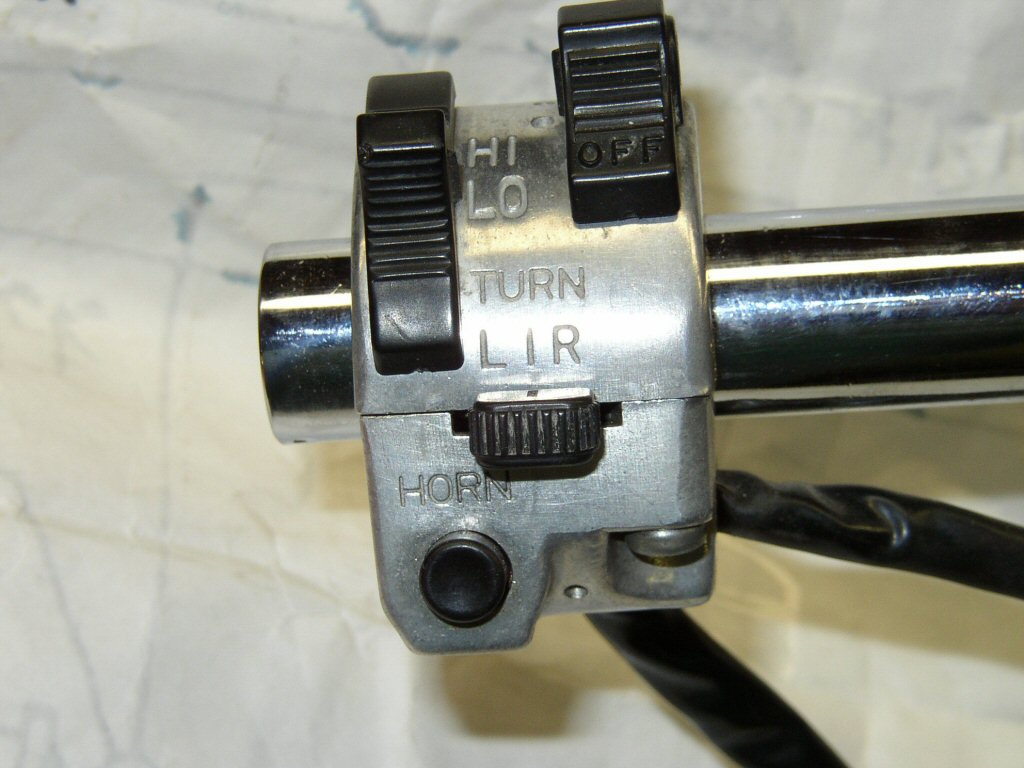

Photo courtesy of Mike Ittner.
Photo courtesy of Mike Ittner.
Photo courtesy of Mike Ittner.
| Function | Suzuki 577-6 | Moto Guzzi |
|---|---|---|
| Horn (wire to distribution panel) | Dark Green | Black |
| Right turn signal / turn indicator | Light Green | Yellow or white/black |
| Turn signal / turn indicator (live wire from fuse panel; goes through flasher unit / blinker unit) | Light Blue | Purple |
| Left turn signal / turn indicator | Black | Yellow with black tracer |
| Running lights / parking lights (tail light, gauge illumination lights, etc.) | Red with Green stripe | Gray with red tracer |
| Headlight high beam | Black with White stripe | Green with black tracer |
| Live wire from fuse panel | Separate Orange wire joined with a bullet connector to a separate Green with White stripe wire | Brown |
| Headlight low beam | Gray | Green |
