Disc brake axle
Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models
Updated:
// //
Thanks to Paul Linn for providing me with some of this information. The axle is part number MG# 13614140.
- Diameter of large portion: 24.9 mm
- Diameter of small portion: 19.93 mm
- Thread size: 16 mm × 2 mm
- Overall length: 291 mm
- Length of larger diameter portion: 92 mm
- Please use these written measurements rather than attempting to read the tape measure as Paul had to hold the tape measure and take the photo at the same time.

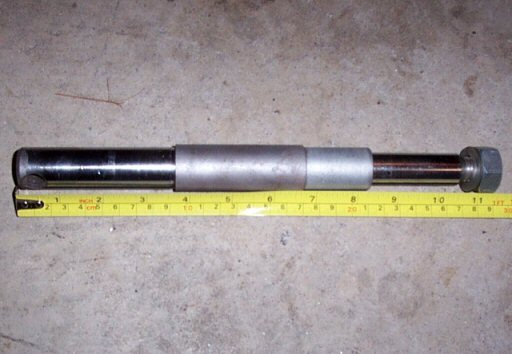

![Disc brake axle for Moto Guzzi 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles fitted with a disc front brake.](mg_images/disc_brake_axle_1.jpg)
Disc brake axle for Moto Guzzi 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles fitted with a disc front brake.
Photo courtesy of Paul Linn.

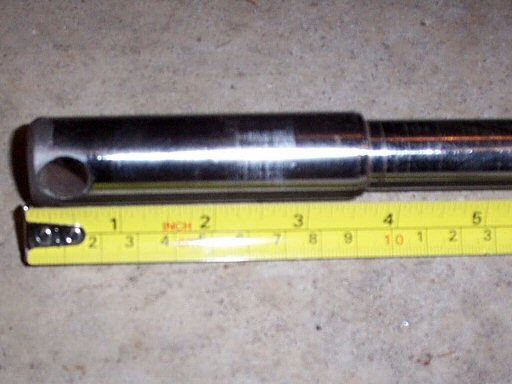

![Disc brake axle for Moto Guzzi 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles fitted with a disc front brake.](mg_images/disc_brake_axle_2.jpg)
Disc brake axle for Moto Guzzi 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles fitted with a disc front brake.
Photo courtesy of Paul Linn.

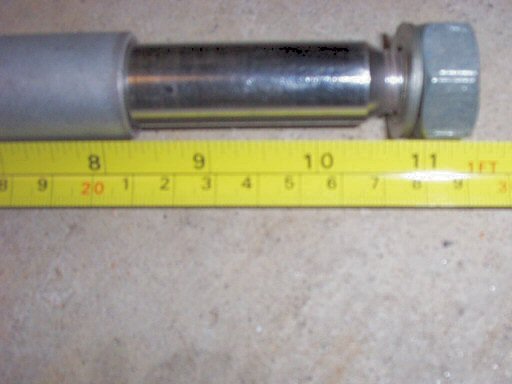

![Disc brake axle for Moto Guzzi 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles fitted with a disc front brake.](mg_images/disc_brake_axle_3.jpg)
Disc brake axle for Moto Guzzi 850 GT, 850 GT California, Eldorado, and 850 California Police motorcycles fitted with a disc front brake.
Photo courtesy of Paul Linn.
