Carburetor throttle slides - Dellorto VHB
Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models
Created:
Updated:
// //
Dellorto VHB carburetors use a flat
or square
throttle slide. These slides were available in various sizes: 7454-60, 7454-50, and 7454-40, to name three. The difference between the slides was in the amount of cut-away on the side that faced away from the intake manifold (the back face
).
- A 7454-60 was cut back 6 mm.
- A 7454-50 was cut back 5 mm.
- A 7454-40 was cut back 4 mm.
The photos below demonstrate the differences between Dellorto 7454-60 and 7454-40 throttle slides.
![7454-60 left; 7454-40 right. Back face side shown. 7454-60 is cut back 6 mm; 7454-40 is cut back 4 mm.](mg_images/slide_vhb_1.jpg)
Photo courtesy of Gregory Bender.
![7454-60 left; 7454-40 right. Side view shown to comare back face. Back face of 7454-60 is cut back 6 mm; back face of 7454-40 is cut back 4 mm.](mg_images/slide_vhb_2.jpg)
Photo courtesy of Gregory Bender.
![7454-60 left; 7454-40 right. Front side shown. No difference between them.](mg_images/slide_vhb_3.jpg)
Photo courtesy of Gregory Bender.
![7454-60 left; 7454-40 right. Side view shown compare front face. No difference between them.](mg_images/slide_vhb_4.jpg)
Photo courtesy of Gregory Bender.
![7454-60 left; 7454-40 right. Top view shown. No difference between them.](mg_images/slide_vhb_5.jpg)
Photo courtesy of Gregory Bender.

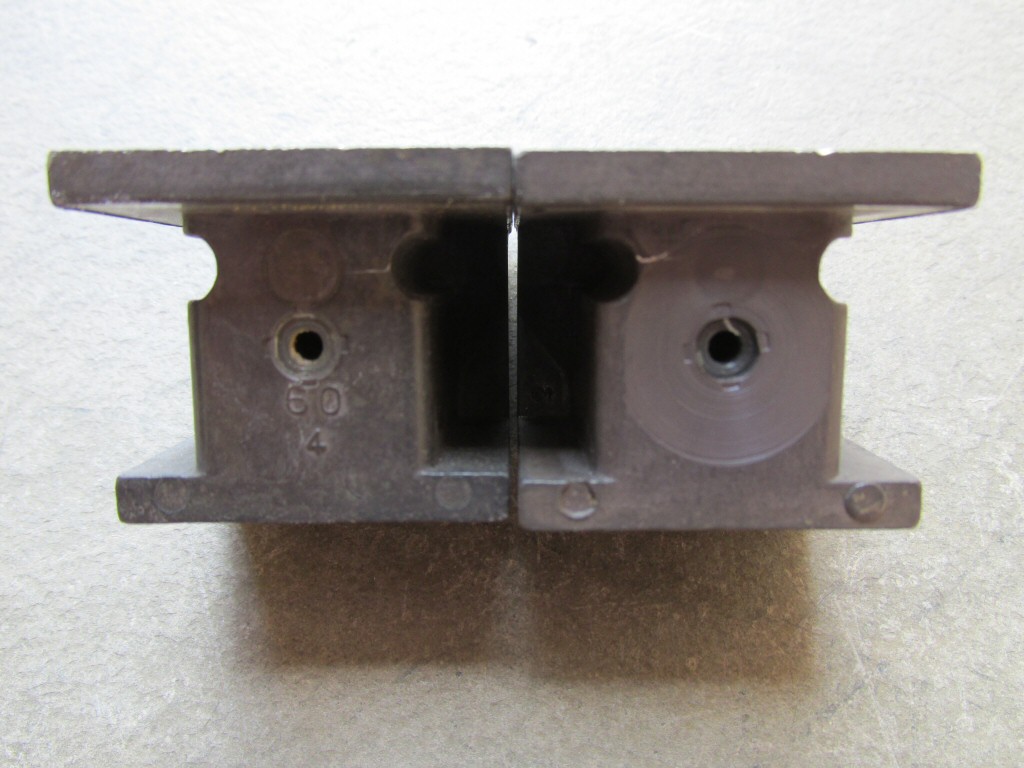

![7454-60 left; 7454-40 right. Bottom view shown. No difference between them.](mg_images/slide_vhb_6.jpg)
Photo courtesy of Gregory Bender.
