Digiplex ignition - late style with 11-pin flat connector, relay socket, and AMP Superseal connectors

Part number: 29722170-LATE

Price: $83.25

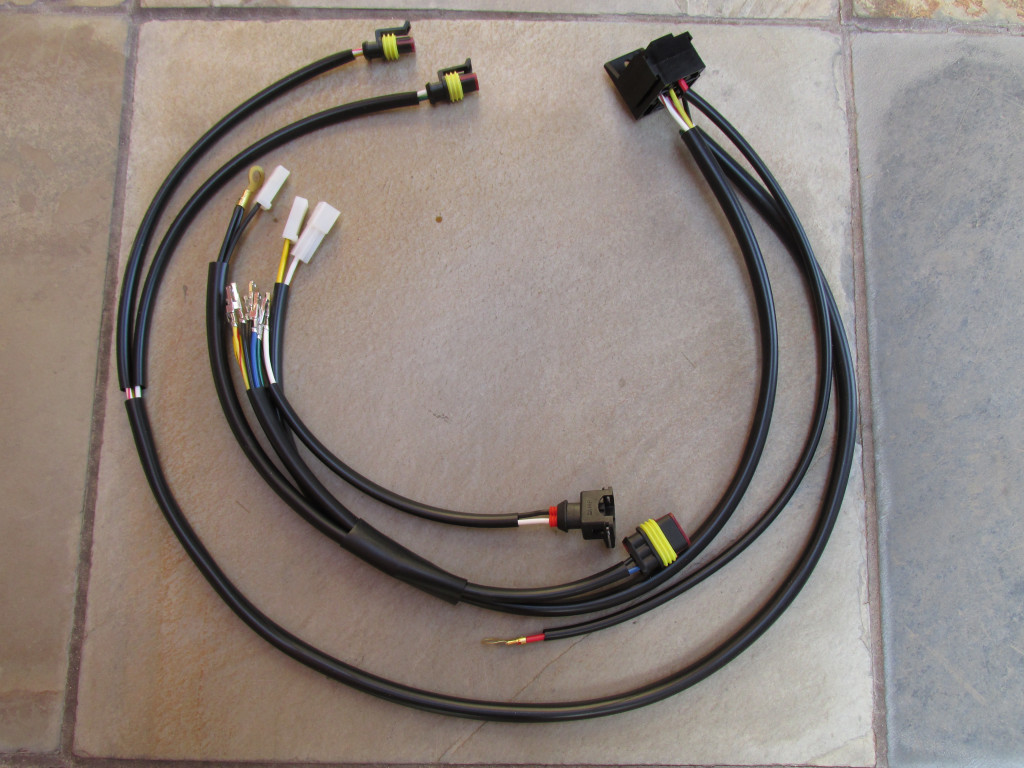

Digiplex ignition - late style with 11-pin flat connector, relay socket, and AMP Superseal connectors

Wiring to support the Digiplex ignition system. Please note, the 11-pin flat connector is no longer available. You will need to reuse your existing connector. If you ship me your original harness, I will be happy to remove the old terminals and fit the new terminals.

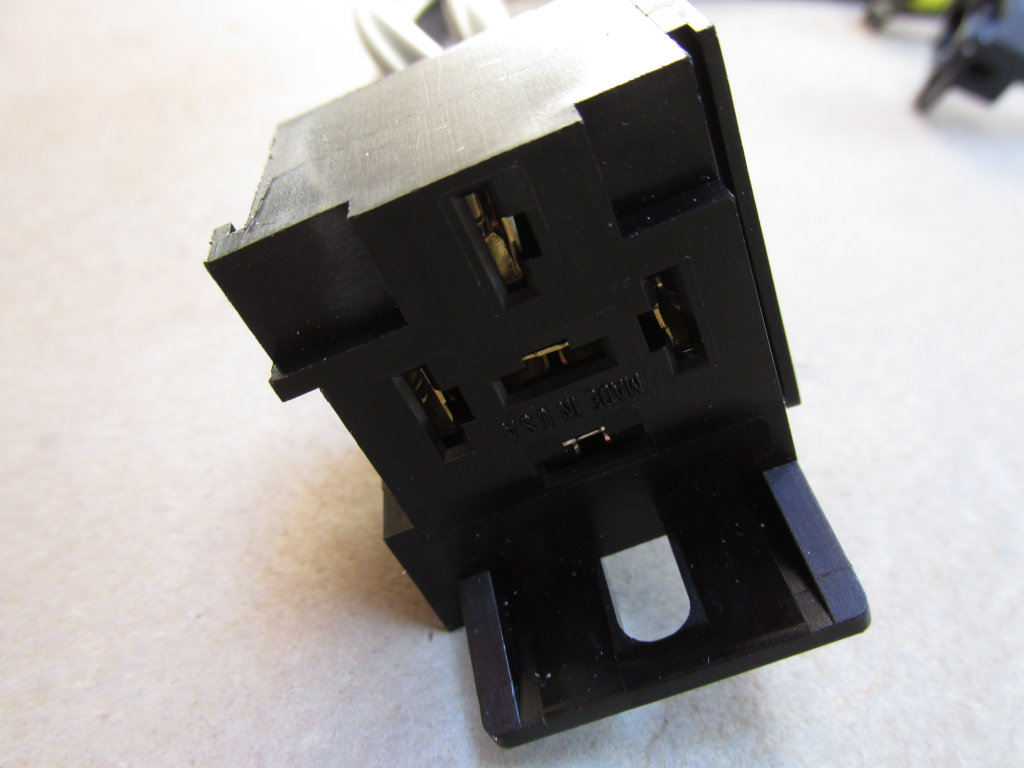

Relay socket to power the coils.
Relay socket to power the coils.
Direct link to image

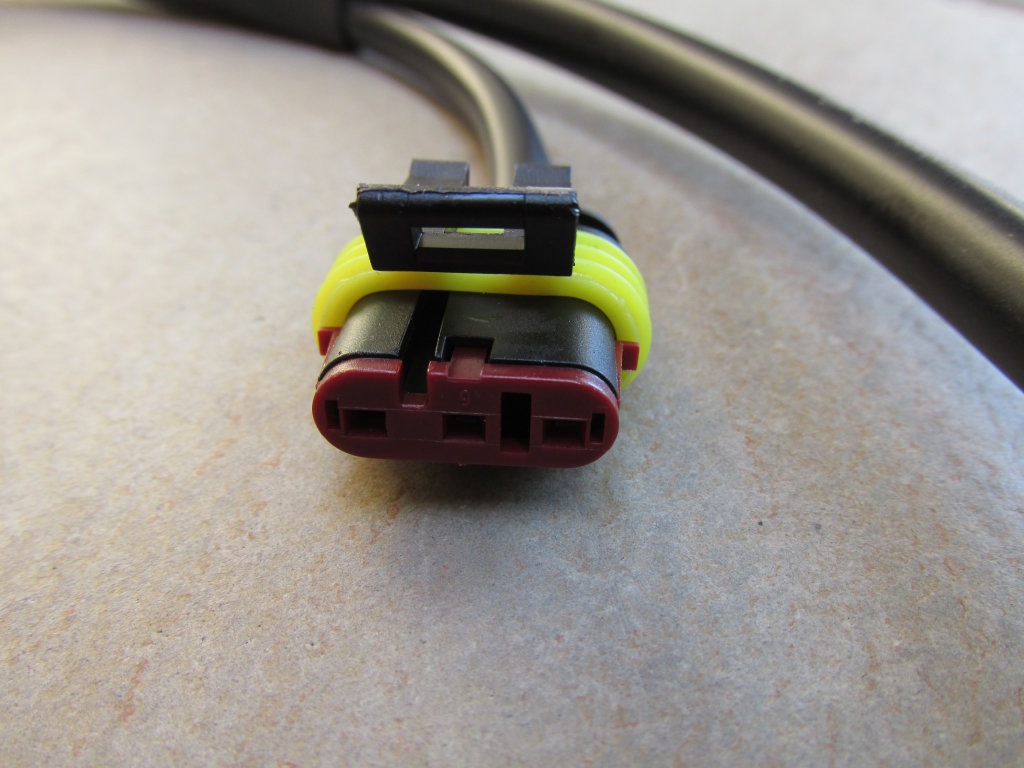

3-pin AMP Superseal connector.
3-pin AMP Superseal connector.
Direct link to image

2-pin connector.
2-pin connector.
Direct link to image

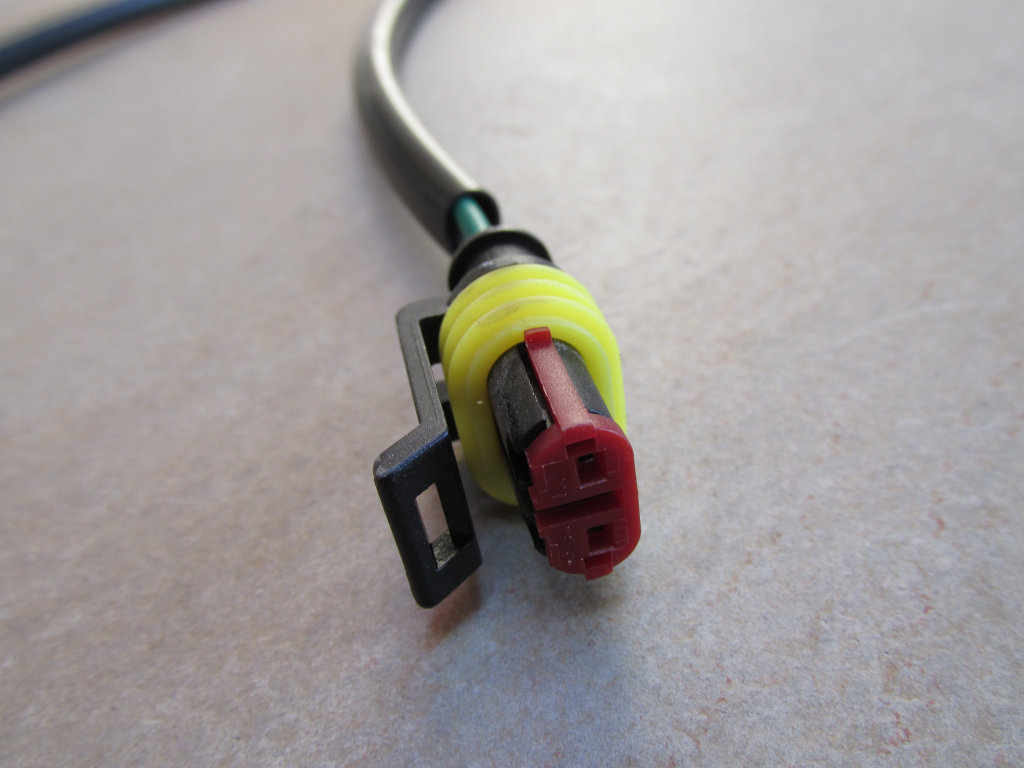

2-pin AMP Superseal connector to the left S coil (green wire).
2-pin AMP Superseal connector to the left S coil (green wire).
Direct link to image

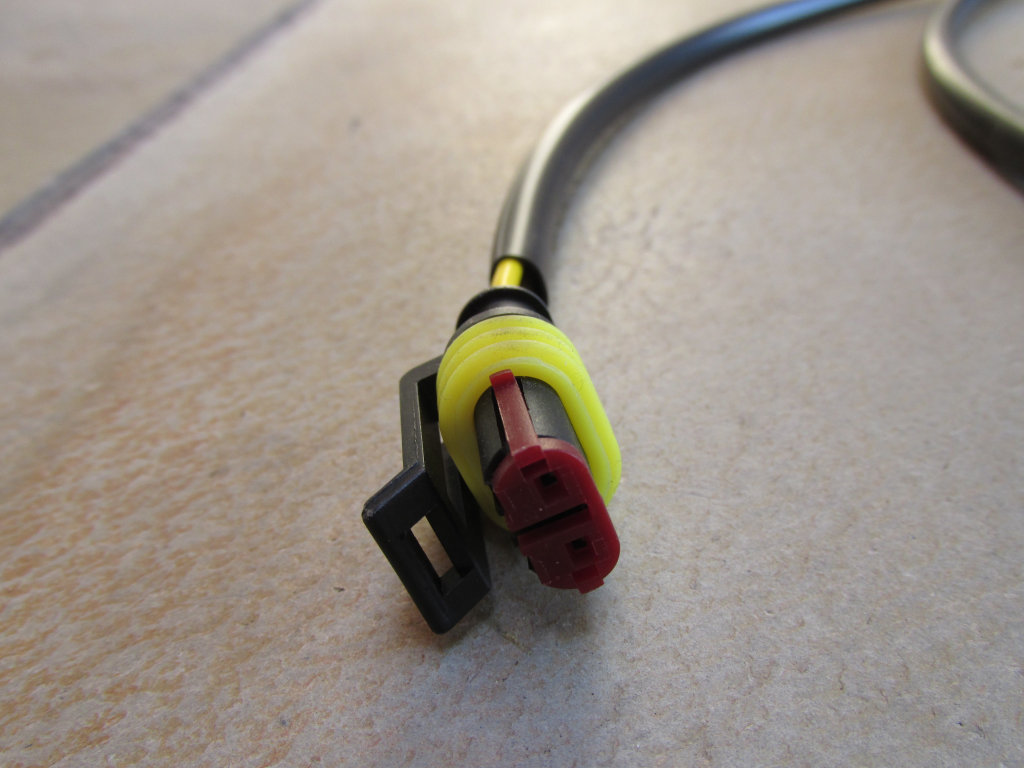

2-pin AMP Superseal connector to the right D coil (yellow/black wire).
2-pin AMP Superseal connector to the right D coil (yellow/black wire).
