Voltage regulator to main harness [Saprisa charging system]

Part number: 28712500

Price: $4.75

Voltage regulator to main harness [Saprisa charging system]

Connects the voltage regulator to the main harness. Applicable to the Saprisa charging system.

Note: The original Saprisa plug is *NOT* included. You will need to re-use your original plug or source a replacement. The photos below show how and where to insert each wire.

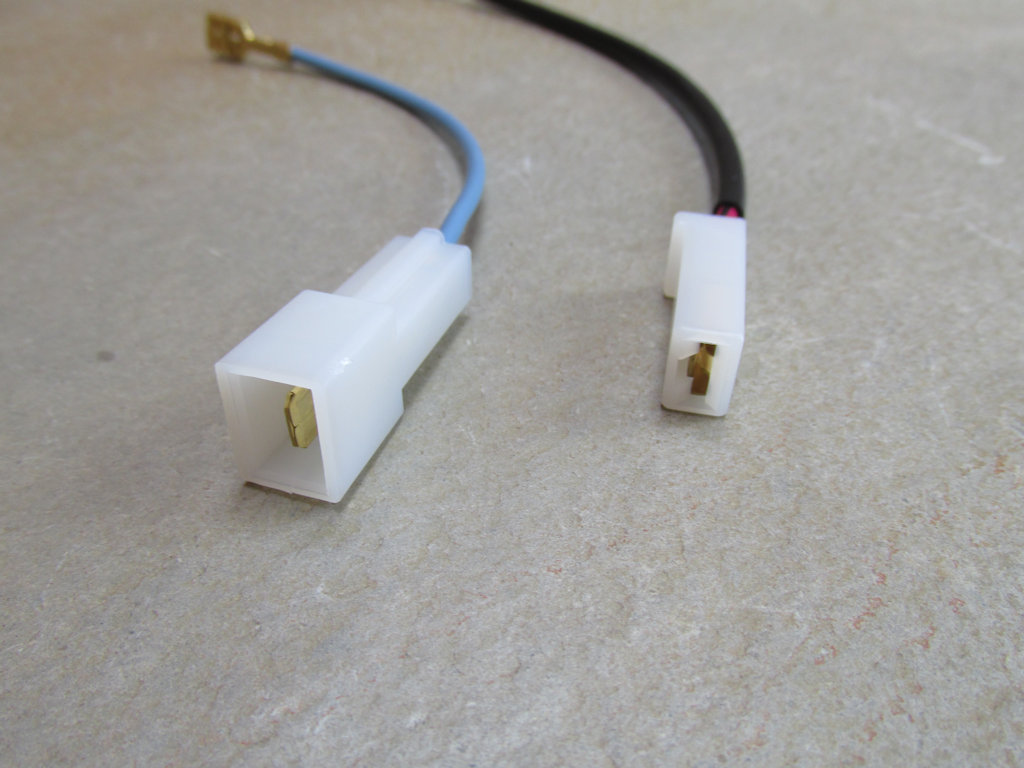

These two wires connect to the main harness. Each must be inserted into the original Saprisa plug.
These two wires connect to the main harness. Each must be inserted into the original Saprisa plug.
Direct link to image

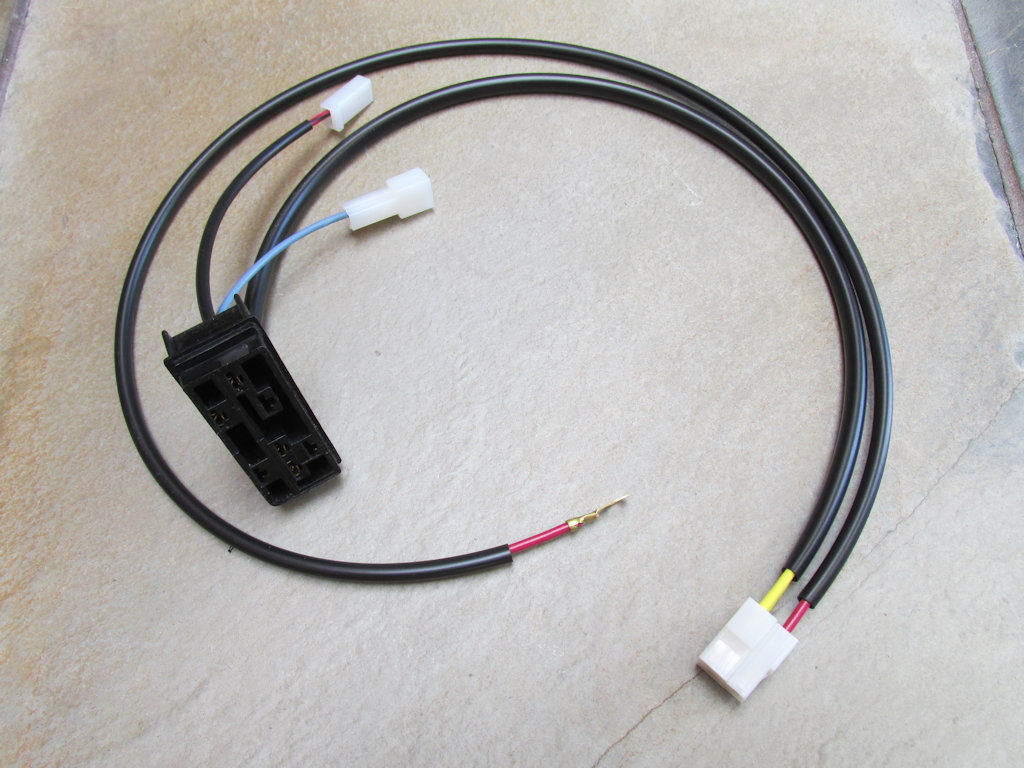

Three separate Moto Guzzi part numbers inserted into an original Saprisa plug: MG# 28712500, MG# 29726450, and MG# 29725850.
Three separate Moto Guzzi part numbers inserted into an original Saprisa plug: MG# 28712500, MG# 29726450, and MG# 29725850.
Direct link to image

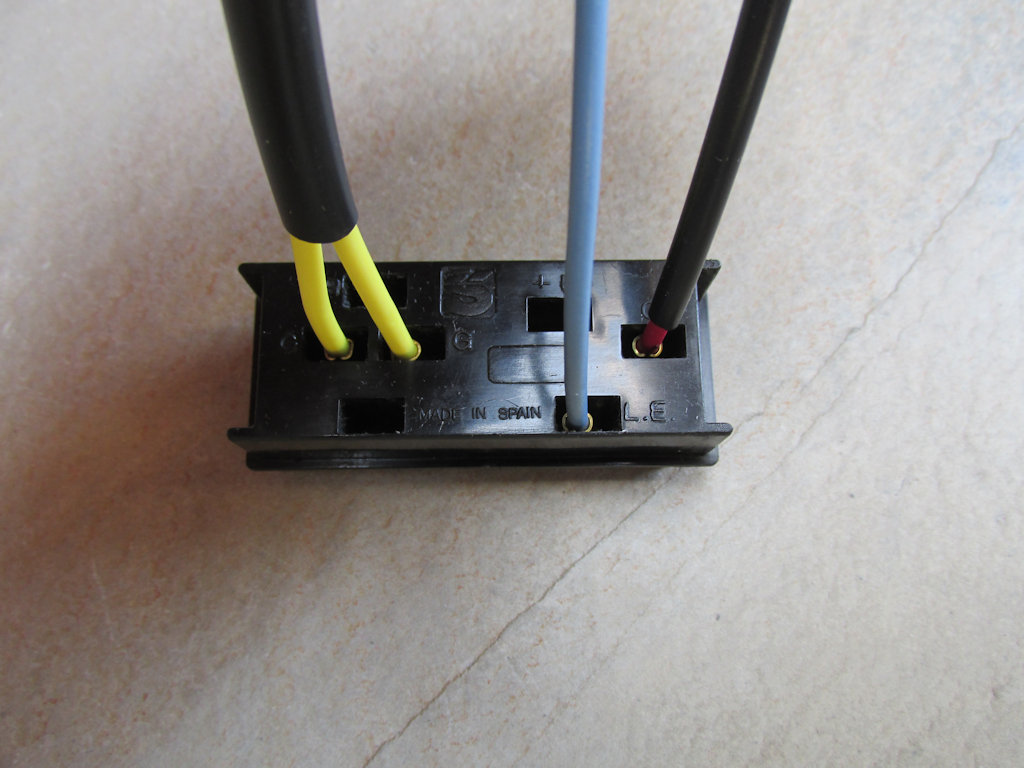

This is where each wire is inserted.
This is where each wire is inserted.
Direct link to image

Light blue wire is inserted into the L.E. hole.
Light blue wire is inserted into the L.E. hole.
Direct link to image

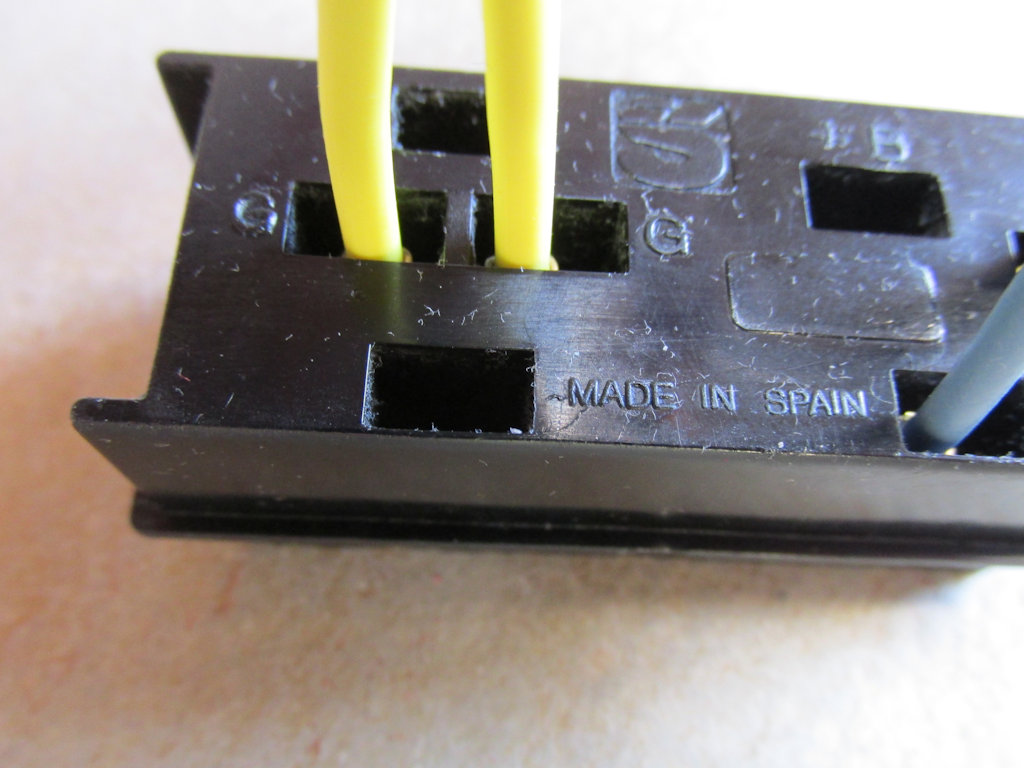

Yellow wires are inserted into the G holes.
Yellow wires are inserted into the G holes.
Direct link to image

Red/black wire is inserted into the C hole.
Red/black wire is inserted into the C hole.
