Relay solution for the horns, coils, headlight high beam, and headlight low beam (NON-PRINTED CIRCUIT INSTRUMENT PANEL)

Part number: RELAY-HARNESS-TONTI-NON-PCB

Price: $114.75

How to order

Testimonials and reviews

The complete relay solution you will receive.
The complete relay solution you will receive.
The complete relay solution you will receive.

Direct link to image

Relay solution for the horns, coils, headlight high beam, and headlight low beam (NON-PRINTED CIRCUIT INSTRUMENT PANEL)

No more excuses! Relays greatly improve the performance of the horns, coils, and headlight. Your horns will be louder, your coils will get all the amperage they require, and your headlights will burn brighter when you use relays. Relays also dramatically extend the life of your handlebar switches.

This relay kit is a well thought-out and solid solution that is in line with what I believe Lino Tonti might have designed. A few points I'll mention:

  • Complete solution - includes all needed components.
  • Works with your original wiring harness.
  • The bank of four relay sockets is intended to be mounted between the battery and the rear plastic inner fender. This affords ease of installation as well as later access. This keeps the headlight bucket largely uncluttered and doesn't hide anything under the gas tank were it is difficult to access.
  • Wiring is color coded to original specifications.
  • Relay sockets are used to make installation easy and trouble free.
  • Each relay is wired independently from each other: horns, coils, headlight high beam, and headlight low beam. This slight redundancy permits one relay to fail without affecting the functionality of any other relay.
  • Includes all four needed relays.
  • Relays are of a standard size and easily replaced at any time (they simply plug into the socket).
  • Simple installation - See installation instructions.
The complete relay solution you will receive.
The complete relay solution you will receive.
The complete relay solution you will receive.

Direct link to image

The bank of 4 relays.
The bank of 4 relays.
The bank of 4 relays.

Direct link to image

These wires connect to battery positive terminal.
These wires connect to battery positive terminal.
These wires connect to battery positive terminal.

Direct link to image

These wires are grounded to the frame where the rear fender is secured to the frame.
These wires are grounded to the frame where the rear fender is secured to the frame.
These wires are grounded to the frame where the rear fender is secured to the frame.

Direct link to image

Connections to main harness and headlight.
Connections to main harness and headlight.
Connections to main harness and headlight.

Direct link to image

Headlight plug.
Headlight plug.
Headlight plug.

Direct link to image

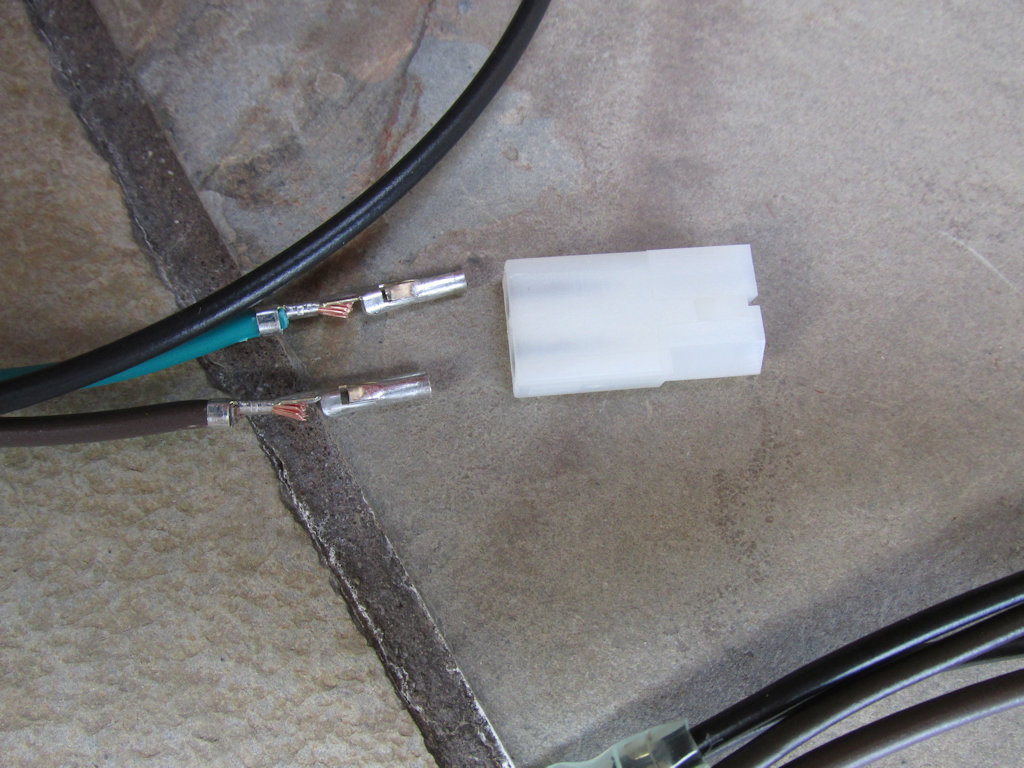

Fit Molex plug after routing wires through hole in headlight bucket.
Fit Molex plug after routing wires through hole in headlight bucket.
Fit Molex plug after routing wires through hole in headlight bucket.

Direct link to image

These wires connect to both horns.
These wires connect to both horns.
These wires connect to both horns.

Direct link to image

The relay brackets have mounting holes which you can use to mount to your plastic inner fender.
The relay brackets have mounting holes which you can use to mount to your plastic inner fender.
The relay brackets have mounting holes which you can use to mount to your plastic inner fender.

Direct link to image

Installation instructions
