Main harness to dash (PRINTED CIRCUIT INSTRUMENT PANEL)

Part number: 14747255

Price: $70.00

How to order

Testimonials and reviews

Main harness to dash (PRINTED CIRCUIT INSTRUMENT PANEL)

Connects the main harness to the dash.

Instead of routing a pair of wires to each bulb, the printed circuit instrument panel uses this printed circuit board to distribute power to the dash indicator bulbs (MG# 14765355). Printed circuit board not included.
Photo courtesy of Stein-Dinse.
Instead of routing a pair of wires to each bulb, the printed circuit instrument panel uses this printed circuit board to distribute power to the dash indicator bulbs (MG# 14765355). Printed circuit board not included.
Photo courtesy of Stein-Dinse.
Direct link to image

PLEASE NOTE: This harness is not 100% complete. Try as I might, I have been unable to source the original printed circuit board flag terminals (AMP 280252). Likewise, I have been unable to source the two different flag terminal connection housings (AMP 280297 and AMP 280352). You will need to re-use your existing terminals and housings and mate them to the pigtails provided with this harness. I have intentionally left the pigtails 100 mm longer than original for this purpose.

15 terminal connection that connects to the main harness.
15 terminal connection that connects to the main harness.
Direct link to image

Pigtails that will have to be connected to your existing terminals and housings.
Pigtails that will have to be connected to your existing terminals and housings.
Direct link to image

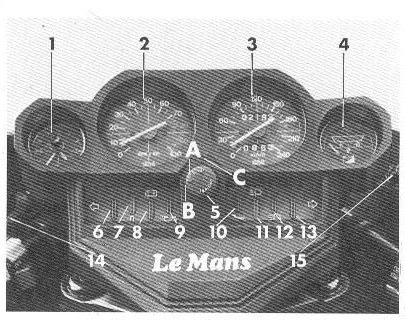

Applicable to this dash console (not included).
Applicable to this dash console (not included).
