Dash (Series 1: frame number VV 12630 and earlier)

Part number: 28747260

USD $85.00

How to order
Testimonials and reviews

Dash (Series 1: frame number VV 12630 and earlier)

Series 1 machines were produced from about 1983 through about 1987.

Connects the main harness to the dash.

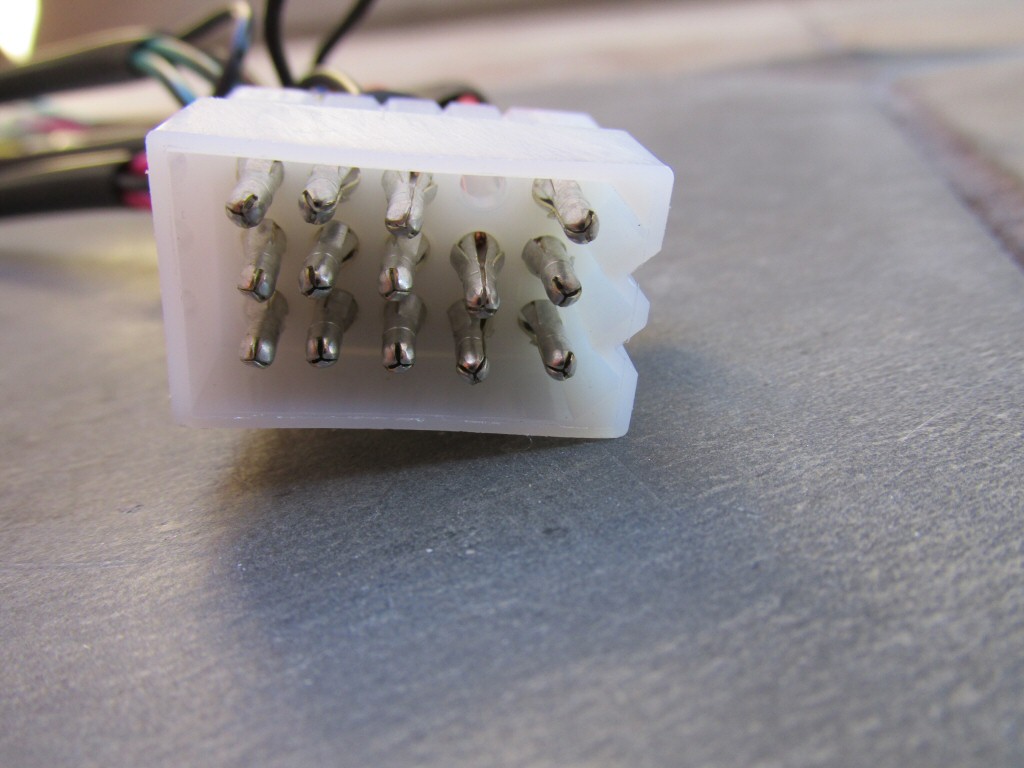

15 terminal connection to the main harness. — 15 terminal connection to the main harness.
Direct link to image

The series 1 (frame number VV 12630 and earlier) dash uses this 4-way flasher button (MG# 28745760). Carefully note the connections on the bottom. (switch not included) — The series 1 (frame number VV 12630 and earlier) dash uses this 4-way flasher button (MG# 28745760). Carefully note the connections on the bottom. (switch not included)
Photo courtesy of HMB-Moto.
Direct link to image

The series 1 (frame number VV 12630 and earlier) dash uses this 4-way flasher button (MG# 28745760). Carefully note the connections on the bottom. (switch not included) — The series 1 (frame number VV 12630 and earlier) dash uses this 4-way flasher button (MG# 28745760). Carefully note the connections on the bottom. (switch not included)
Photo courtesy of HMB-Moto.
Direct link to image

Applicable to this dash console (not included). — Applicable to this dash console (not included).
Direct link to image

Applicable to this dash console (not included). — Applicable to this dash console (not included).
Direct link to image

Applicable to this dash console (not included). — Applicable to this dash console (not included).
Direct link to image

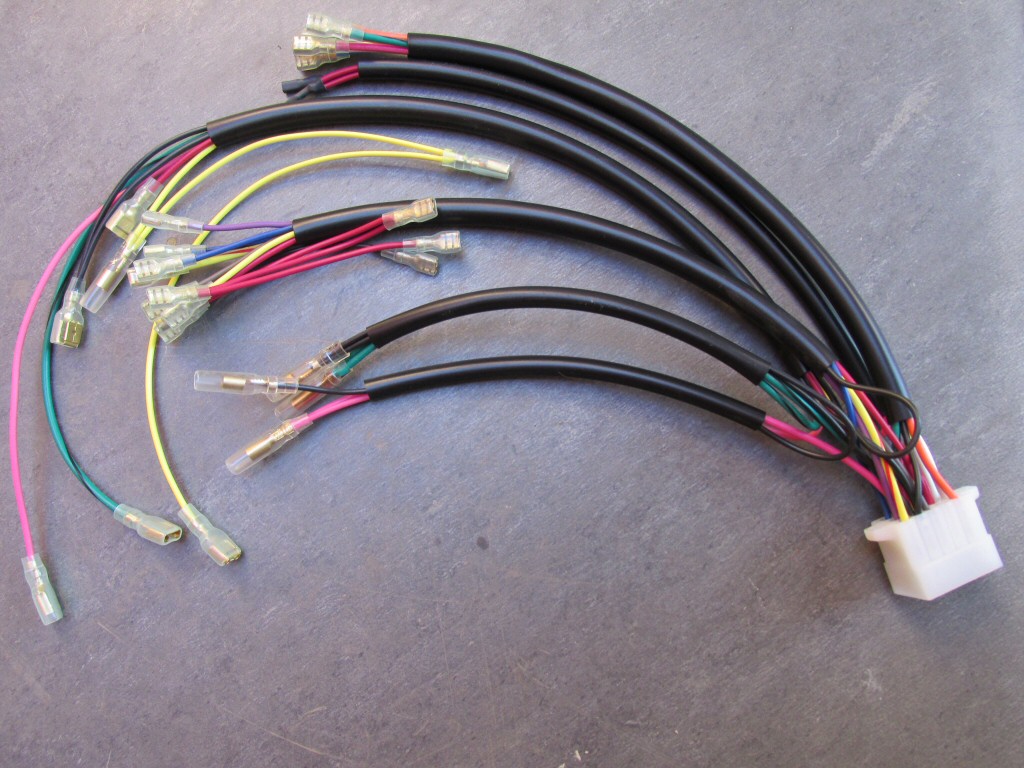

Dash. — 28747260: Dash.
