Gregory Bender

Wiring harnesses for the Moto Guzzi V35 / V50 / V35 II / V50 II

To order, e-mail: greg@thisoldtractor.com

Main harness for the V35 / V50 / V35 II / V50 II

Part Number Description Photo Price
MG# 19747100

Main harness for the V35 / V50 / V35 II / V50 II

I duplicated an original main harness. In construction, I use the same gauge of wire, the same colors and tracers (stripes), the same length and sheathing, the same terminals, etc. All terminals are of the double crimp, strain relief variety.

  • Note: Main harnesses comprise the main - or primary - wiring harness. Each motorcycle also uses ancillary sub-harnesses. The individual sub-harnesses are sold separately.

Originally, Moto Guzzi routed the wires to the ignition switch through the Molex connector. I've found this to be troublesome. I prefer to route the wires directly to the ignition switch without going through the dash harness or any connector. Please let me know if you would like this modification.

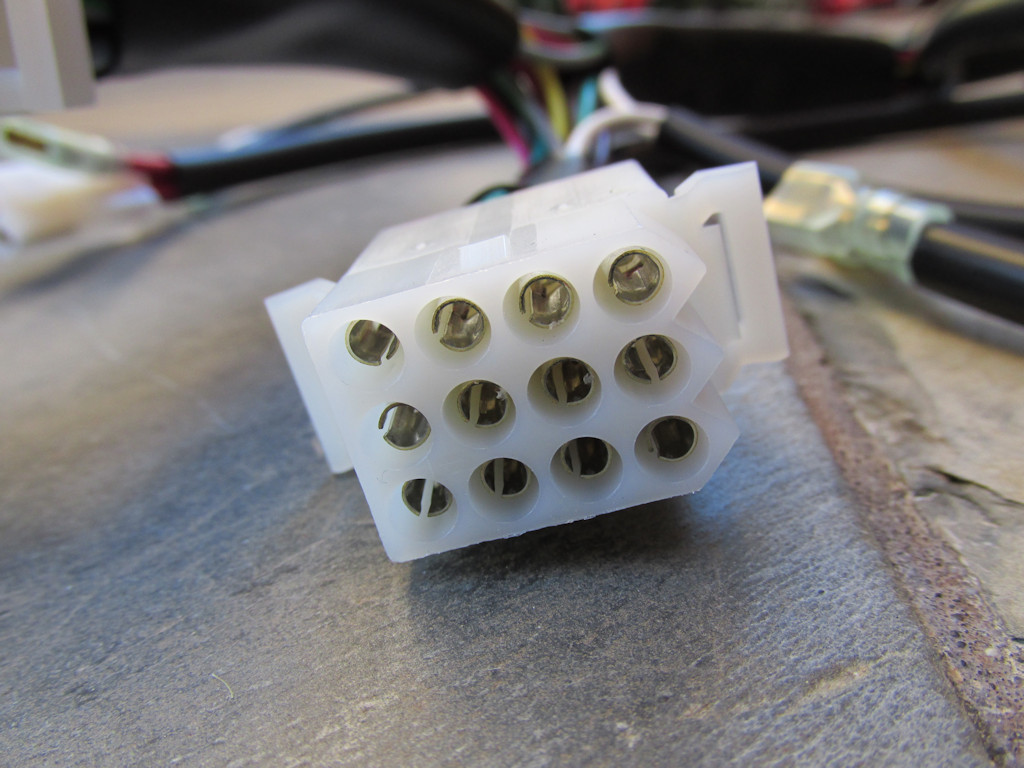

12 terminal connection that connects to the dash and headlight sub-harnesses.
12 terminal connection that connects to the dash and headlight sub-harnesses.
12 terminal connection that connects to the dash and headlight sub-harnesses.

Direct link to image

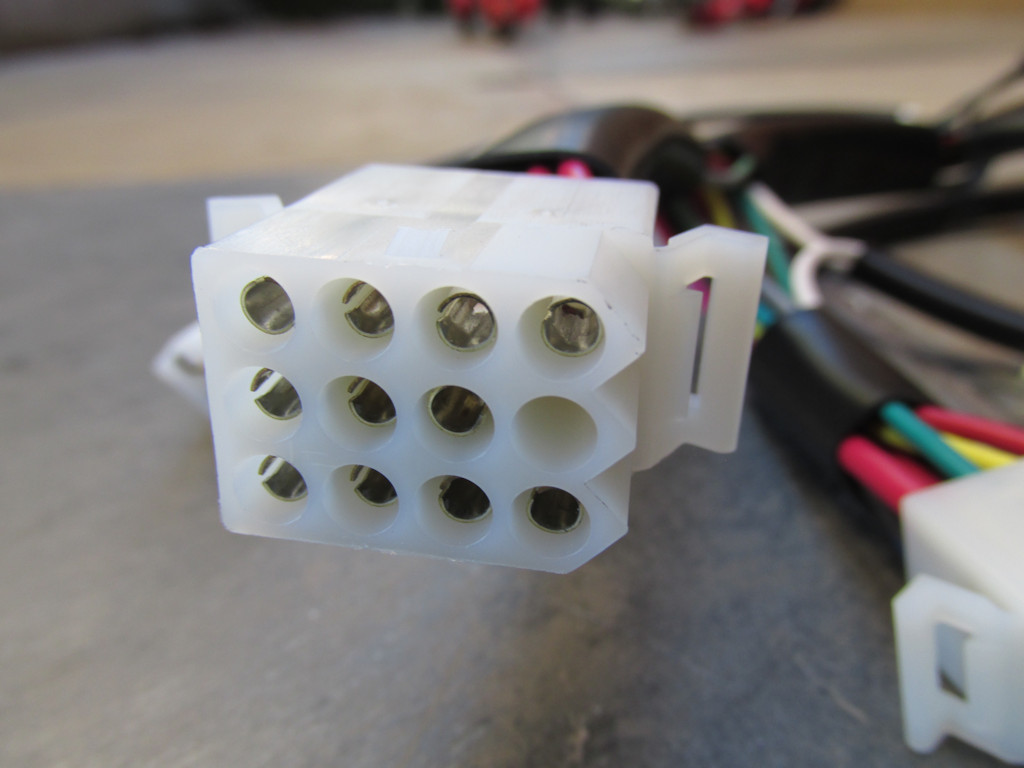

12 terminal connection that connects to the left handlebar switch sub-harness.
12 terminal connection that connects to the left handlebar switch sub-harness.
12 terminal connection that connects to the left handlebar switch sub-harness.

Direct link to image

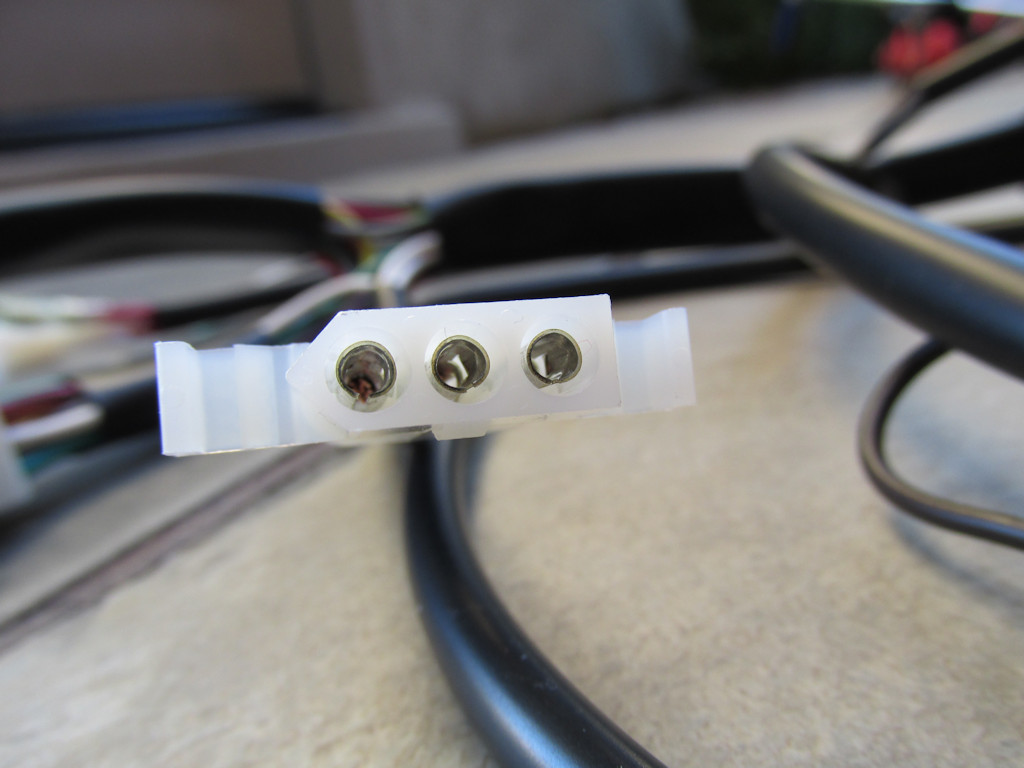

3 terminal connection that connects to the right handlebar switch sub-harness.
3 terminal connection that connects to the right handlebar switch sub-harness.
3 terminal connection that connects to the right handlebar switch sub-harness.

Direct link to image

Socket for flashing lights relay.
Socket for flashing lights relay.
Socket for flashing lights relay.

Direct link to image

4 terminal connection that connects to the tail light and rear turn signals.
4 terminal connection that connects to the tail light and rear turn signals.
4 terminal connection that connects to the tail light and rear turn signals.

Direct link to image

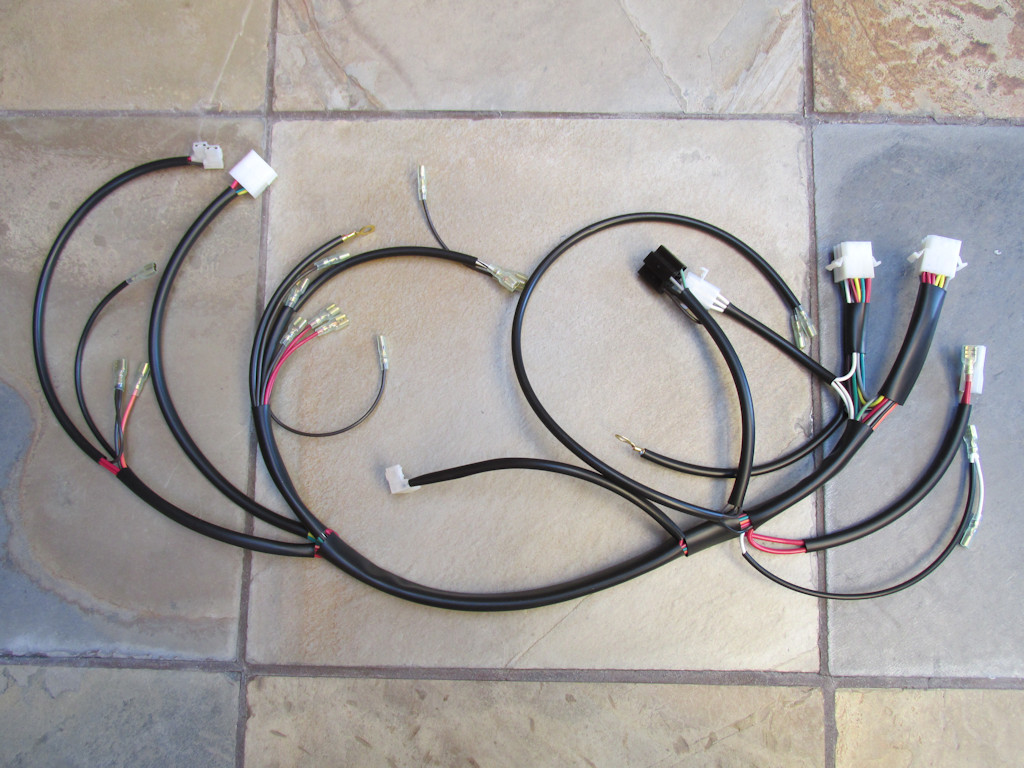

Main harness for the V35 / V50.
19747100: Main harness for the V35 / V50.
19747100: Main harness for the V35 / V50.

Direct link to image

USD $200.00

How to order

Testimonials and reviews

Sub-harnesses for the V35 / V50 / V35 II / V50 II

Part Number Description Photo Price
MG# 14748100

Tail light ground

Connects the tail light to ground.

Applicable to this tail light assembly (not included).
Applicable to this tail light assembly (not included).
Applicable to this tail light assembly (not included).

Direct link to image

Tail light ground.
14748100: Tail light ground.
14748100: Tail light ground.

Direct link to image

USD $2.00

How to order

Testimonials and reviews

MG# 19722100

Bosch electronic ignition

Connects each ECU to the pick-ups at the crankshaft.

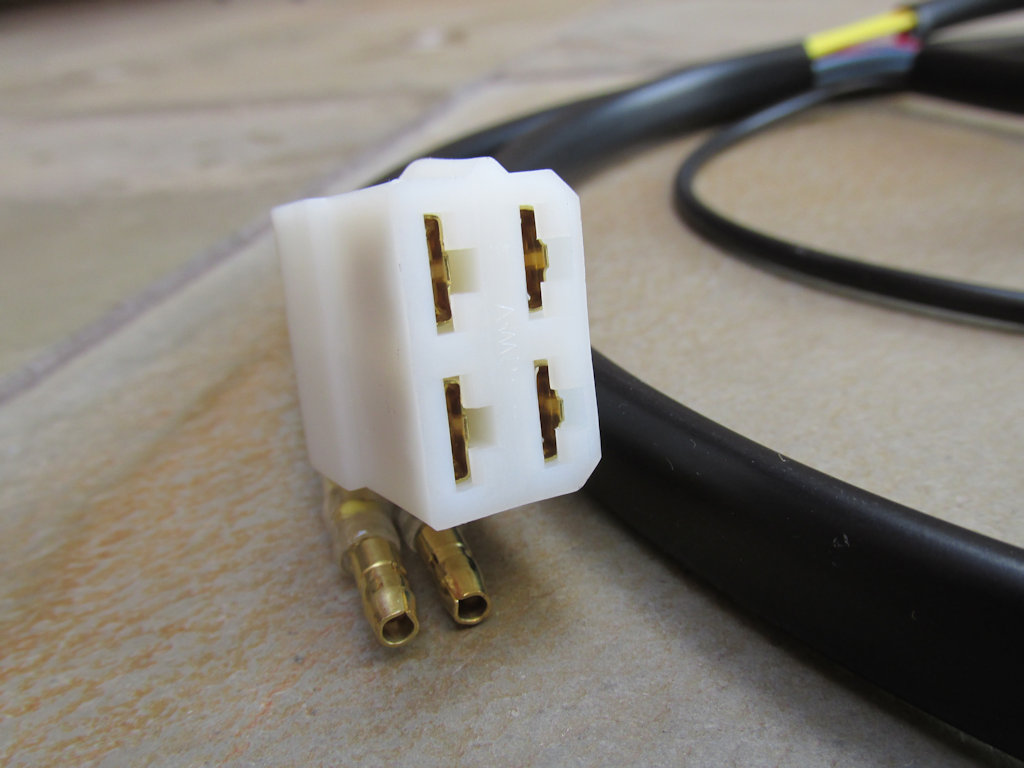

4 terminal connection at the crankshaft.
4 terminal connection at the crankshaft.
4 terminal connection at the crankshaft.

Direct link to image

6 terminal connection to the ECU.
6 terminal connection to the ECU.
6 terminal connection to the ECU.

Direct link to image

6 terminal connection to the ECU.
6 terminal connection to the ECU.
6 terminal connection to the ECU.

Direct link to image

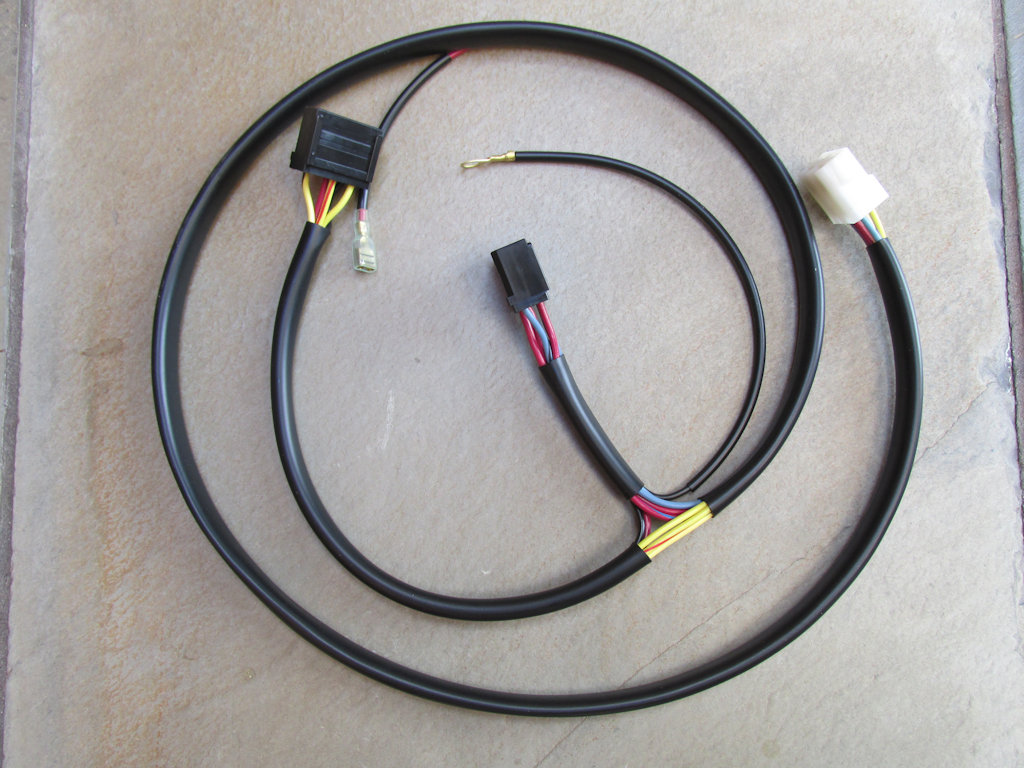

Bosch electronic ignition
19722100: Bosch electronic ignition
19722100: Bosch electronic ignition

Direct link to image

USD $35.00

How to order

Testimonials and reviews

MG# 19747200

Main harness to dash (early)

Connects the main harness to the dash, headlight, and ignition switch.

Originally, Moto Guzzi routed the wires to the ignition switch through the Molex connector. I've found this to be troublesome. I prefer to route the wires directly to the ignition switch without going through the dash harness or any connector. Please let me know if you would like this modification.

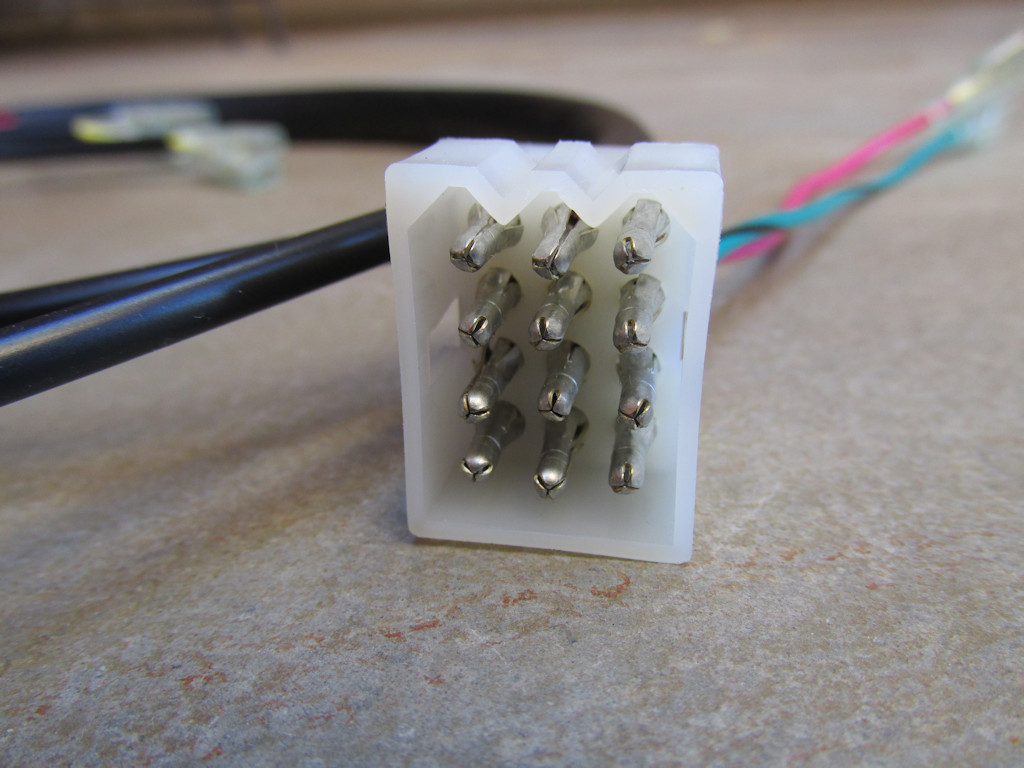

12 terminal connection that connects to the main harness.
12 terminal connection that connects to the main harness.
12 terminal connection that connects to the main harness.

Direct link to image

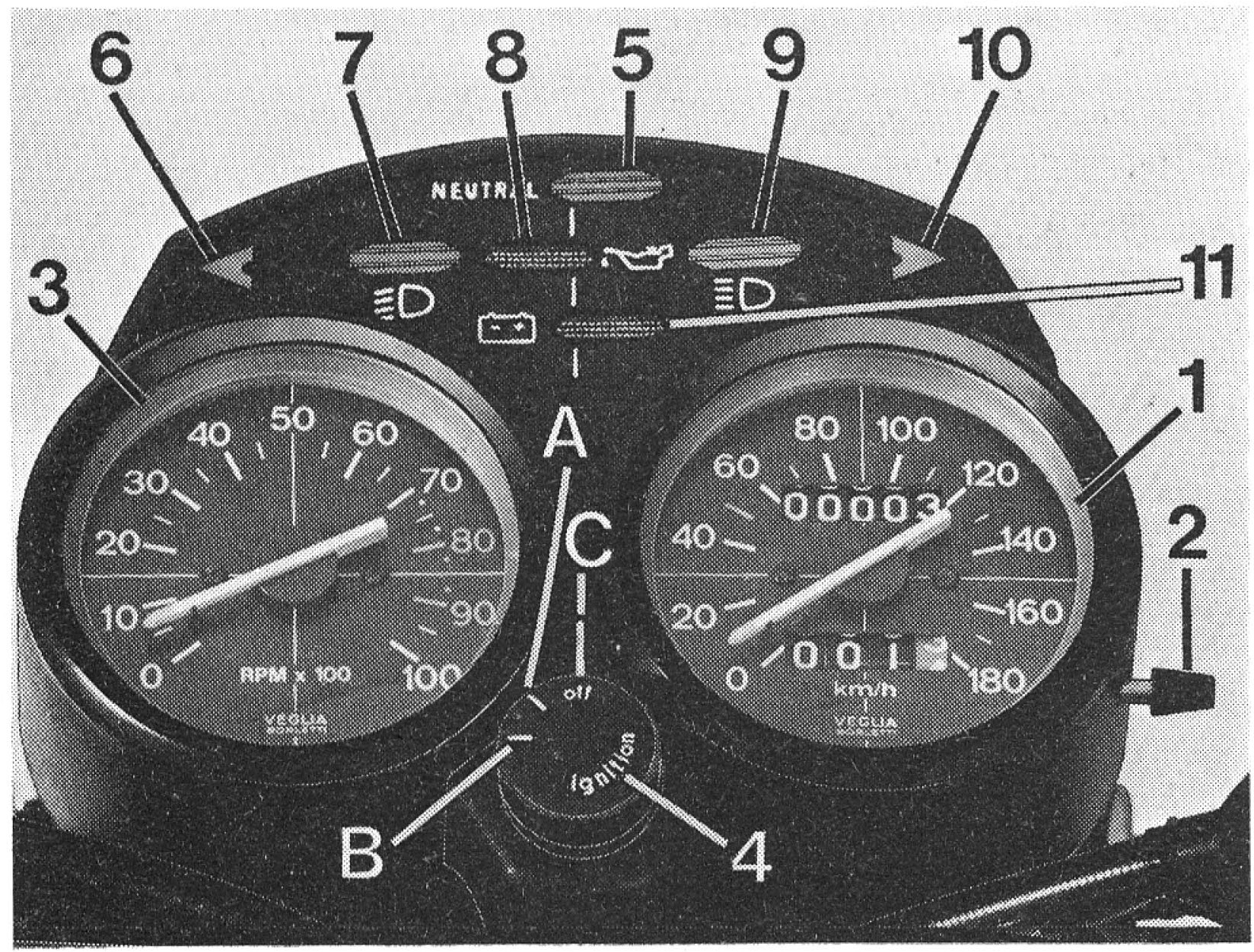

Applicable to this dash console (not included).
Applicable to this dash console (not included).
Applicable to this dash console (not included).

Direct link to image

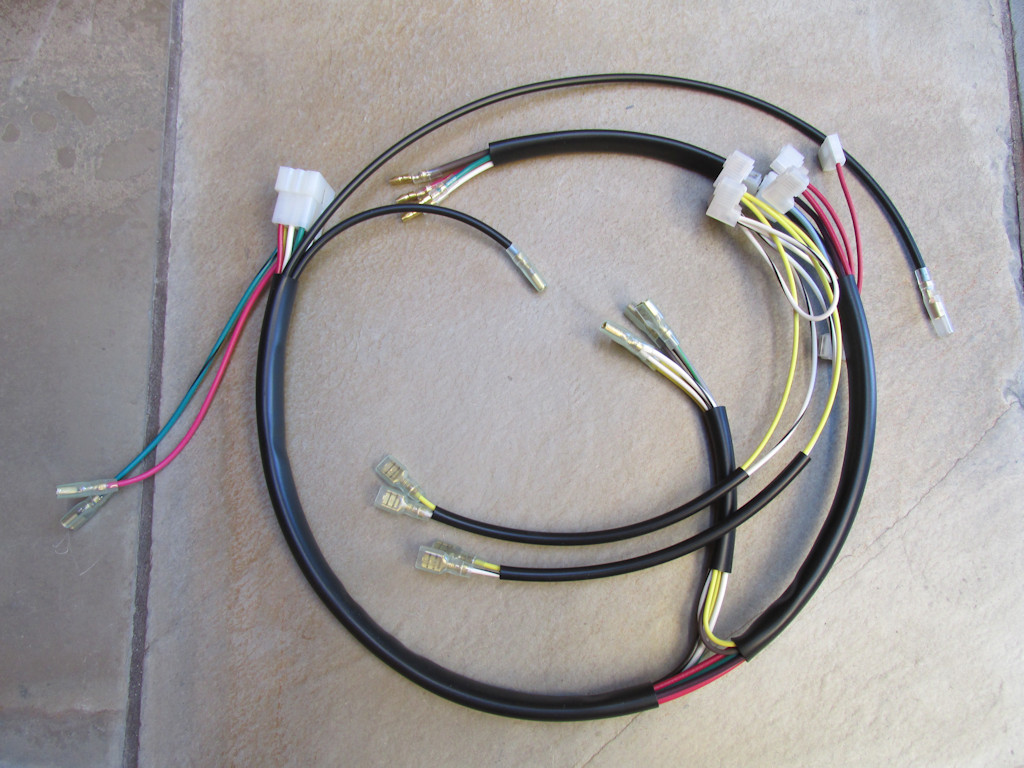

Main harness to dash
19747200: Main harness to dash
19747200: Main harness to dash

Direct link to image

USD $75.00

How to order

Testimonials and reviews

MG# 19747201

Main harness to dash (late)

Connects the main harness to the dash, headlight, and ignition switch.

Originally, Moto Guzzi routed the wires to the ignition switch through the Molex connector. I've found this to be troublesome. I prefer to route the wires directly to the ignition switch without going through the dash harness or any connector. Please let me know if you would like this modification.

12 terminal connection that connects to the main harness.
12 terminal connection that connects to the main harness.
12 terminal connection that connects to the main harness.

Direct link to image

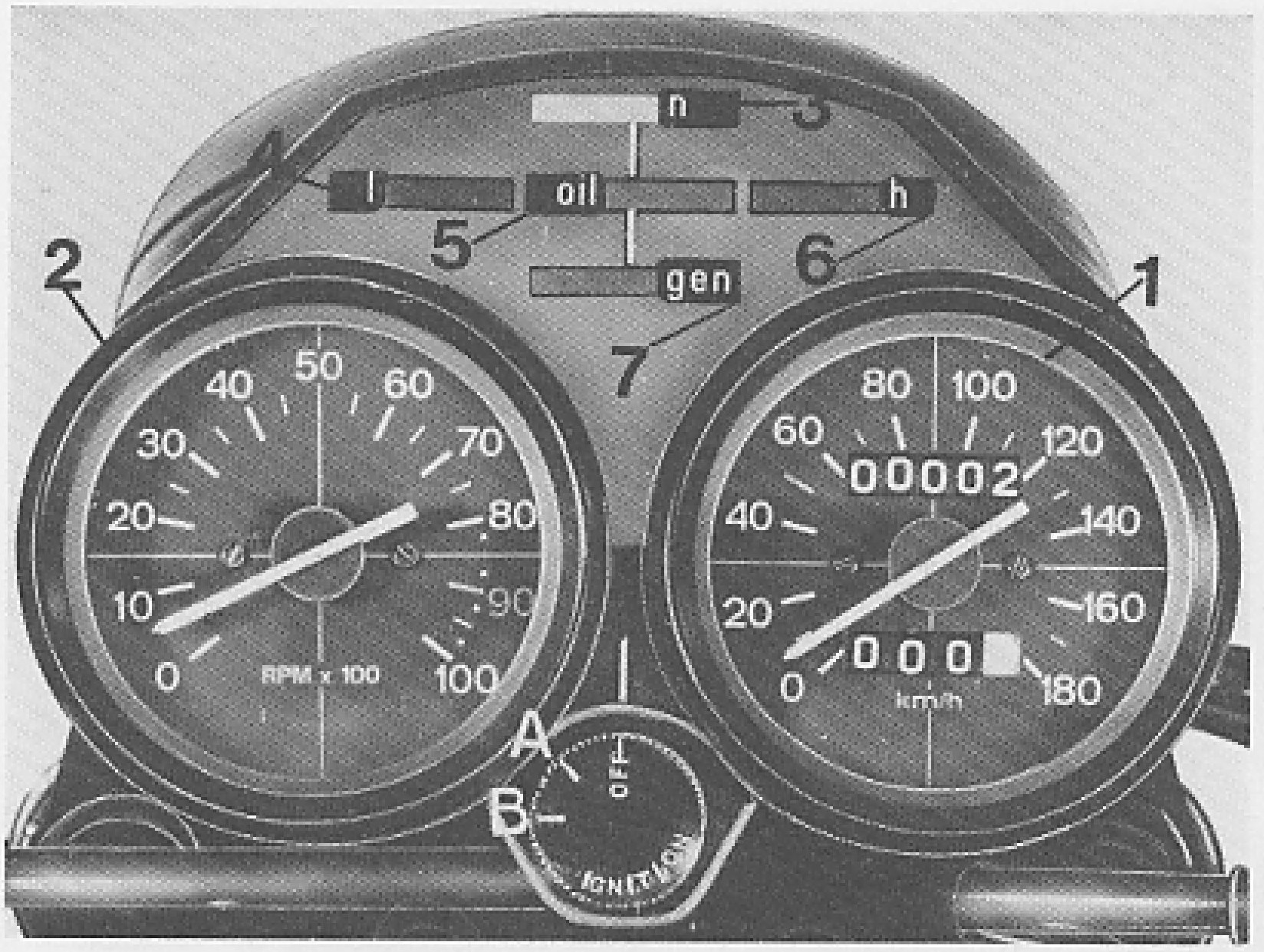

Applicable to this dash console (not included).
Applicable to this dash console (not included).
Applicable to this dash console (not included).

Direct link to image

Main harness to dash
19747201: Main harness to dash
19747201: Main harness to dash

Direct link to image

USD $75.00

How to order

Testimonials and reviews

MG# 19747300

Main harness to tail light and rear turn signals

Connects the main harness to the tail light and rear turn signals.

4 terminal connection that connects to the main harness.
4 terminal connection that connects to the main harness.
4 terminal connection that connects to the main harness.

Direct link to image

Applicable to this tail light assembly (not included).
Applicable to this tail light assembly (not included).
Applicable to this tail light assembly (not included).

Direct link to image

Main harness to tail light and rear turn signals
19747300: Main harness to tail light and rear turn signals
19747300: Main harness to tail light and rear turn signals

Direct link to image

USD $16.25

How to order

Testimonials and reviews

MG# 19747400

Alternator to rectifier and voltage regulator

Connects the alternator to the rectifier and voltage regulator.

Uses all of the original correct colors and heat resistant materials.

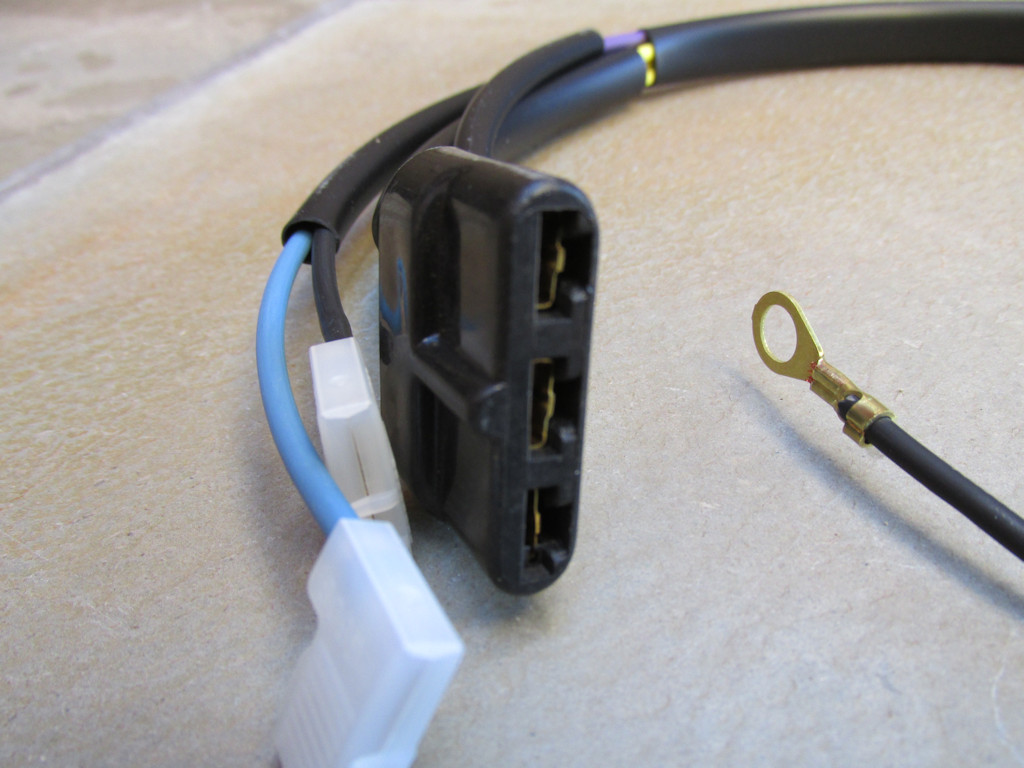

Flat 3 terminal connection for the alternator. The flat connector pictured is no longer available. You may reuse your original connector, or fit the individual insulators provided.
Flat 3 terminal connection for the alternator. The flat connector pictured is no longer available. You may reuse your original connector, or fit the individual insulators provided.
Flat 3 terminal connection for the alternator. The flat connector pictured is no longer available. You may reuse your original connector, or fit the individual insulators provided.

Direct link to image

Flat 3 terminal connection for the voltage rectifier. The flat connector pictured is no longer available. You may reuse your original connector, or fit the individual insulators provided.
Flat 3 terminal connection for the voltage rectifier. The flat connector pictured is no longer available. You may reuse your original connector, or fit the individual insulators provided.
Flat 3 terminal connection for the voltage rectifier. The flat connector pictured is no longer available. You may reuse your original connector, or fit the individual insulators provided.

Direct link to image

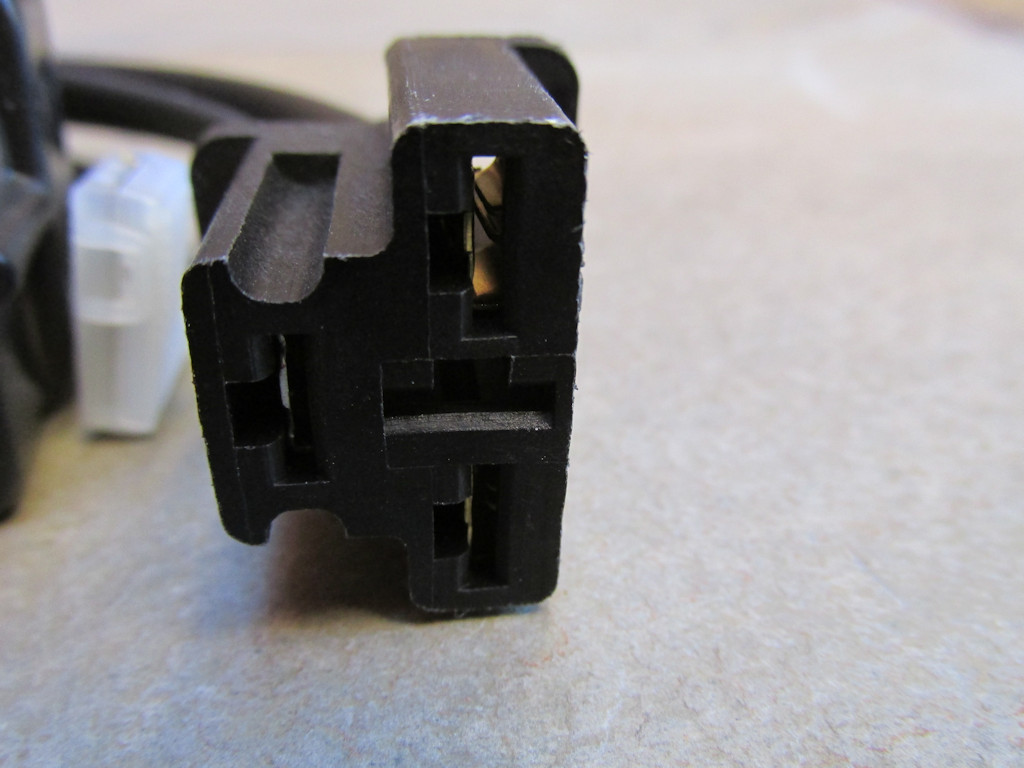

3 terminal connection at the voltage regulator.
3 terminal connection at the voltage regulator.
3 terminal connection at the voltage regulator.

Direct link to image

Alternator to rectifier and voltage regulator
19747400: Alternator to rectifier and voltage regulator
19747400: Alternator to rectifier and voltage regulator

Direct link to image

USD $40.00

How to order

Testimonials and reviews

MG# 19748000

Battery cable - positive

Connects the positive terminal on the battery to the starter solenoid. Cable is 6 AWG and is 370 mm (~14 12 inch) in total length. The battery lug accepts a 6 mm fastener; the starter solenoid lug accepts an 8 mm fastener. If you require something different, please let me know.

Includes rubber cover for the terminal located at the starter solenoid (MG# 12703000).

Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).
Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).
Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).

Direct link to image

Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).
Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).
Detail of rubber cover for the terminal located at the starter solenoid (MG# 12703000).

Direct link to image

Battery cable - positive.
19748000: Battery cable - positive.
19748000: Battery cable - positive.

Direct link to image

USD $14.25

How to order

Testimonials and reviews

MG# 19748200

Starter relay to starter

Connects terminal 87 on the starter relay to the starter.

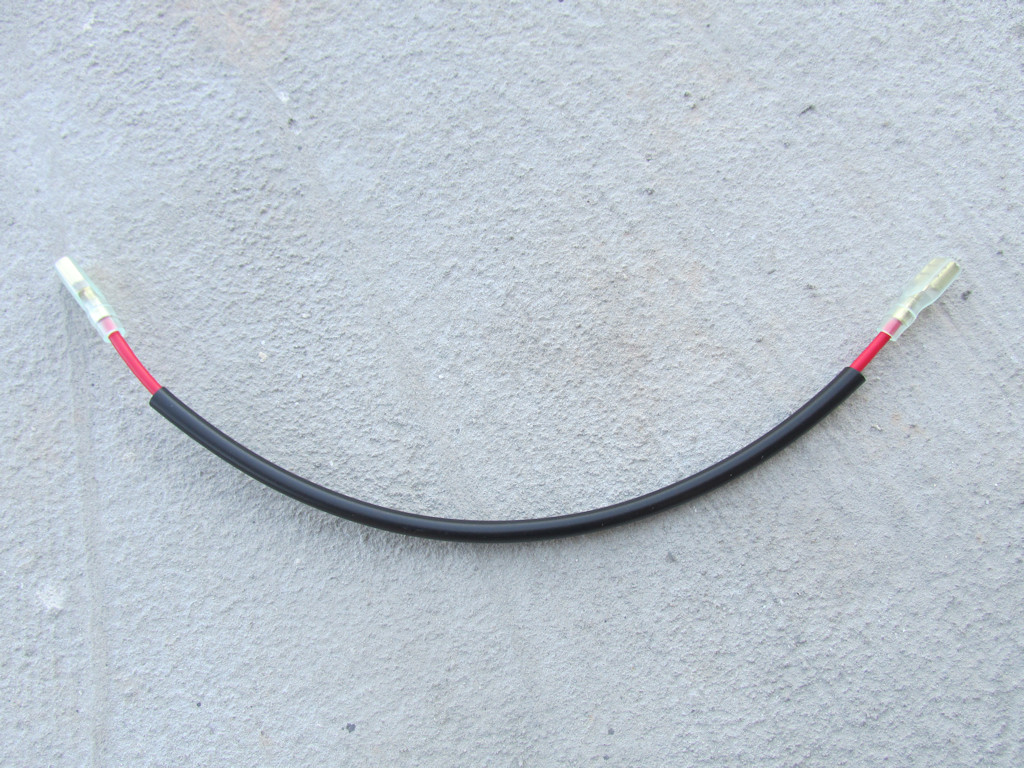

Starter relay to starter sub-harness
19748200: Starter relay to starter sub-harness
19748200: Starter relay to starter sub-harness

Direct link to image

USD $3.50

How to order

Testimonials and reviews

MG# 19748300

Starter relay terminal interconnect

Connects terminal 30 on the starter relay to terminal 86 on the starter relay. Uses the correct original piggyback terminal.

Starter relay terminal sub-harness
19748300: Starter relay terminal sub-harness
19748300: Starter relay terminal sub-harness

Direct link to image

USD $2.50

How to order

Testimonials and reviews

MG# 19748400

Battery cable - negative

Connects the negative terminal on the battery to the ground point on the frame. Cable is 6 AWG and is 340 mm (~13 14 inch in) in total length. The battery lug accepts a 6 mm fastener; the grounding lug accepts a 6 mm fastener. If you require something different, please let me know.

Battery cable - negative.
19748400: Battery cable - negative.
19748400: Battery cable - negative.

Direct link to image

USD $11.50

How to order

Testimonials and reviews

MG# 28740533

Headlight bucket to headlight bulb

Connects the terminals inside the headlight bucket to the headlight bulb. Includes wiring for the city light.

3 terminal connection for the headlight bulb.
3 terminal connection for the headlight bulb.
3 terminal connection for the headlight bulb.

Direct link to image

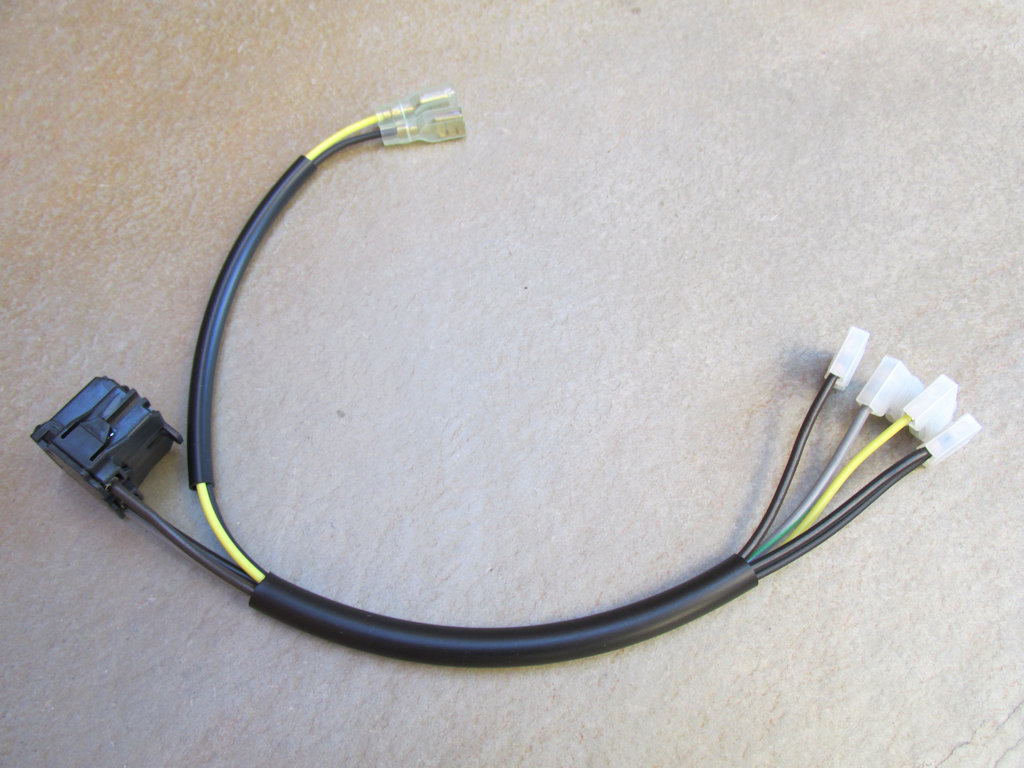

Headlight bucket to headlight bulb.
28740533: Headlight bucket to headlight bulb.
28740533: Headlight bucket to headlight bulb.

Direct link to image

USD $13.25

How to order

Testimonials and reviews

DASH-TURN-SIGNAL-GROUND

Dash turn signal ground interconnect

Used to interconnect the dash turn signal indicator lights with the headlight interconnect harness.

Applicable to this dash console (not included).
Applicable to this dash console (not included).
Applicable to this dash console (not included).

Direct link to image

Dash turn signal ground interconnect.
Dash turn signal ground interconnect.
Dash turn signal ground interconnect.

Direct link to image

USD $3.75

How to order

Testimonials and reviews

Components

Part Number Description Photo Price
MG# 12702900

Rubber boot/cover for small wire terminals.

Intended to cover smaller wires with ring terminals. Sold each.

Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).

Direct link to image

Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).

Direct link to image

Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).
Rubber boot/cover shown in use with a 12 AWG wire and a 6 mm ring terminal. (MG# 12702900).

Direct link to image

Rubber boot/cover for small wire terminals (MG# 12702900).
12702900: Rubber boot/cover for small wire terminals (MG# 12702900).
12702900: Rubber boot/cover for small wire terminals (MG# 12702900).

Direct link to image

USD $2.50

How to order

Testimonials and reviews

MG# 12703000

Rubber boot/cover for battery cables.

Intended to cover the terminal located at the starter solenoid. Not suitable for fitment at battery terminals. Sold each.

Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).
Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).
Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).

Direct link to image

Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).
Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).
Rubber boot/cover shown in use with a 6 AWG battery cable (MG# 12703000).

Direct link to image

Rubber boot/cover for battery cables (MG# 12703000).
12703000: Rubber boot/cover for battery cables (MG# 12703000).
12703000: Rubber boot/cover for battery cables (MG# 12703000).

Direct link to image

USD $2.50

How to order

Testimonials and reviews

MG# 90706765

O-ring to seal the large, 100 mm speedometer to the dash.

This O-ring seals the speedometer to the dash.

O-ring to seal the large, 100 mm speedometer to the single gauge civilian or police dash.
90706765: O-ring to seal the large, 100 mm speedometer to the single gauge civilian or police dash.
90706765: O-ring to seal the large, 100 mm speedometer to the single gauge civilian or police dash.

Direct link to image

USD $2.00

How to order

Testimonials and reviews

MG# 90706746

Set of two O-rings to seal the smaller, 80 mm speedometer and tachometer to the dash.

These O-rings seal each gauge to the dash.

Set of two O-rings to seal the smaller, 80 mm speedometer and tachometer to the dual gauge civilian dash.
90706746: Set of two O-rings to seal the smaller, 80 mm speedometer and tachometer to the dual gauge civilian dash.
90706746: Set of two O-rings to seal the smaller, 80 mm speedometer and tachometer to the dual gauge civilian dash.

Direct link to image

USD $4.00

How to order

Testimonials and reviews

MG# 93400964

4 connection female spade connector

A great way to connect four wires without the need for male spade terminals (Moto Guzzi typically did not use male spade terminals on wiring harnesses). Accepts 6.3 mm (14 inch) terminals. Sold each.

Best to use a needle-nosed pair of pliers to insert and remove terminals.

4 connection female spade connector.
93400964: 4 connection female spade connector.
93400964: 4 connection female spade connector.

Direct link to image

USD $8.00

How to order

Testimonials and reviews

MG# 93400863 MG# 93400963

3 connection female spade connector

A great way to split power to two devices such as driving lights, front and rear turn signals, etc. (Faston or Mamut number 405). Accepts 6.3 mm (14 inch) terminals. Sold each.

Best to use a needle-nosed pair of pliers to insert and remove terminals.

3 connection female spade connector.
93400863: 3 connection female spade connector.
93400863: 3 connection female spade connector.

Direct link to image

USD $6.00

How to order

Testimonials and reviews

MG# 93400962

2 connection female spade connector

A great way to connect two wires without the need for male spade terminals (Moto Guzzi typically did not use male spade terminals on wiring harnesses). These are used on the Tonti framed models (Faston or FasBlok) and could be used in custom applications on the loop frame models. Accepts 6.3 mm (14 inch) terminals. Sold each.

2 connection female spade connector.
93400962: 2 connection female spade connector.
93400962: 2 connection female spade connector.

Direct link to image

USD $3.00

How to order

Testimonials and reviews

BULLET-CONNECTOR

2 connection bullet connector

A great way to connect two male bullet terminals (double bullet connector). Accepts 4 mm (0.157 inch) terminals. Sold each.

2 connection bullet connector.
2 connection bullet connector.
2 connection bullet connector.

Direct link to image

USD $0.50

How to order

Testimonials and reviews

BULB-HOLDER-SINGLE

Single terminal bulb holder

A very nice single terminal bulb holder with excellent fitment within the tube that is secured to the dash. Includes color-coded short jumper wire with a 4 mm female bullet terminal to mate perfectly with the original wiring harness. Accepts standard sized OEM bulbs. ~12 mm OD. Sold each.

When ordering: Please specify wire color and terminal.

Accepts this style of bayonet bulb.
Accepts this style of bayonet bulb.

Photo courtesy of McMaster-Carr.

Accepts this style of bayonet bulb.
Accepts this style of bayonet bulb.

Photo courtesy of McMaster-Carr.

Single terminal bulb holder.
Single terminal bulb holder.
Single terminal bulb holder.

Direct link to image

USD $7.50

How to order

Testimonials and reviews

BULB-HOLDER-DUAL

Dual terminal bulb holder

A great replacement dual terminal bulb holder and very close to the original in design. Accepts two 6.35 mm female spade terminals, just like the original. Excellent fitment within the tube that is secured to the dash. Accepts standard sized OEM bulbs. ~12 mm OD. Sold each.

Accepts this style of bayonet bulb.
Accepts this style of bayonet bulb.

Photo courtesy of McMaster-Carr.

Accepts this style of bayonet bulb.
Accepts this style of bayonet bulb.

Photo courtesy of McMaster-Carr.

Dual terminal bulb holder.
Dual terminal bulb holder.
Dual terminal bulb holder.

Direct link to image

USD $5.00

How to order

Testimonials and reviews

MG# 17760650 MG# 14768650 MG# 10754905

Dual terminal bulb holder

A great replacement dual terminal bulb holder and very close to the original in design. Accepts two 6.35 mm female spade terminals, just like the original. Excellent fitment within the tube that is secured to the dash. Accepts standard sized OEM bulbs. ~12 mm OD. Sold each.

Accepts this style of wedge bulb.
Accepts this style of wedge bulb.

Photo courtesy of McMaster-Carr.

Dual terminal bulb holder.
17760650: Dual terminal bulb holder.
17760650: Dual terminal bulb holder.

Direct link to image

USD $5.00

How to order

Testimonials and reviews

MG# 93450322 MG# 93450122

Light bulb for gauge and indicator lights

3.36 watt lamp, bayonet base, 500 hour average life, approximately 10 mm (0.41 inch) in diameter. Sold each.

Note: The MG# 93450322 bulbs are longer in overall length, but brighter than MG# 10744910. In general, I recommend MG# 93450322 because they are brighter and easier to see. If you know that your dash requires a shorter bulb, please order MG# 10744910.

This bulb may also be used as a city light or pilot light.

Light bulb for gauge and indicator lights.
93450322: Light bulb for gauge and indicator lights.
93450322: Light bulb for gauge and indicator lights.

Direct link to image

USD $0.75

How to order

Testimonials and reviews

MG# 10744910

Light bulb for gauge and indicator lights

1.728 watt lamp, bayonet base, 1000 hour average life, approximately 10 mm (0.41 inch) in diameter. Sold each.

Note: The MG# 93450322 bulbs are longer in overall length, but brighter than MG# 10744910. In general, I recommend MG# 93450322 because they are brighter and easier to see. If you know that your dash requires a shorter bulb, please order MG# 10744910.

Light bulb for gauge and indicator lights.
10744910: Light bulb for gauge and indicator lights.
10744910: Light bulb for gauge and indicator lights.

Direct link to image

USD $0.75

How to order

Testimonials and reviews

MG# 14744910

Light bulb for indicator lights

2 watt lamp, bayonet base, 1000 hour average life, approximately 7 mm (0.28 inch) in diameter. Sold each.

Light bulb for indicator lights.
14744910: Light bulb for indicator lights.
14744910: Light bulb for indicator lights.

Direct link to image

USD $1.50

How to order

Testimonials and reviews

MG# 93450224

Light bulb for tail light

Long life bulb to help prevent failure due to vibration (1157LL), dual element, 26.88 / 8.26 watt lamp, bayonet base, 2400 / 10000 hour average life. Sold each.

Light bulb for tail light.
93450224: Light bulb for tail light.
93450224: Light bulb for tail light.

Direct link to image

USD $1.50

How to order

Testimonials and reviews

MG# 93450129

Light bulb for turn signals and parking lights

Long life bulb to help prevent failure due to vibration (1156LL), single element, 26.88 watt lamp, bayonet base, 2400 hour average life. Sold each.

Light bulb for turn signals and parking lights.
93450129: Light bulb for turn signals and parking lights.
93450129: Light bulb for turn signals and parking lights.

Direct link to image

USD $1.50

How to order

Testimonials and reviews

MG# 17762150

Light bulb for gauge and indicator lights

3.78 watt lamp, wedge base, 2500 hour average life, approximately 10 mm (0.41 inch) in diameter. Sold each.

Light bulb for gauge and indicator lights.
17762150: Light bulb for gauge and indicator lights.
17762150: Light bulb for gauge and indicator lights.

Direct link to image

USD $0.75

How to order

Testimonials and reviews

MG# 93450140

Light bulb for indicator lights

1.40 watt lamp, wedge base, 500 hour average life, approximately 5 mm (0.23 inch) in diameter. Sold each.

Light bulb for indicator lights.
93450140: Light bulb for indicator lights.
93450140: Light bulb for indicator lights.

Direct link to image

USD $0.75

How to order

Testimonials and reviews

MG# 12734900

Starter button bracket

Bracket to fit the original starter button (22 mm diameter mounting hole). Stainless steel. Very nice. Starter button sold separately. Sold each.

Starter button bracket.
12734900: Starter button bracket.
12734900: Starter button bracket.

Direct link to image

USD $15.50

How to order

Testimonials and reviews

MG# 26735001

Starter button

Momentary push button switch to actuate the starter. Fits the original bracket perfectly (22 mm diameter mounting hole) and comes complete with set screw terminals just like the original. Sturdy metal housing and nice quality black plastic securing nut. Sold each.

Starter button.
26735001: Starter button.
26735001: Starter button.

Direct link to image

USD $20.00

How to order

Testimonials and reviews

MG# 26735001-BLACK

Starter button

Momentary push button switch to actuate the starter. Fits the original bracket perfectly (22 mm diameter mounting hole) and comes complete with set screw terminals just like the original. Nice quality black plastic housing and securing nut. Sold each.

Starter button.
26735001: Starter button.
26735001: Starter button.

Direct link to image

USD $14.00

How to order

Testimonials and reviews

MG# 17743000

Original fuse block

New production, very good quality fuse box. Accepts six fuses (MG# 17742550 or MG# 12742500). Comes with clear cover and two jumpers. Additional jumpers available. Sold each.

Fuse box
Fuse box
Fuse box

Direct link to image

Fuse box
Fuse box
Fuse box

Direct link to image

Fuse box
17743000: Fuse box
17743000: Fuse box

Direct link to image

USD $42.00

How to order

Testimonials and reviews

MG# 17743000-JUMPER

Jumper for original fuse block

Jumper connection used to join multiple fuse circuits. Fits the original fuse box. Sold each.

Jumper for original fuse block
17743000: Jumper for original fuse block
17743000: Jumper for original fuse block

Direct link to image

USD $1.50

How to order

Testimonials and reviews

MG# 12742500

25 amp fuse

Original style fuse to fit the original fuse block. Sold each.

25 amp fuse.
12742500: 25 amp fuse.
12742500: 25 amp fuse.

Direct link to image

USD $0.50

How to order

Testimonials and reviews

MG# 17742550

16 amp fuse

Original style fuse to fit the original fuse block. Sold each.

16 amp fuse.
17742550: 16 amp fuse.
17742550: 16 amp fuse.

Direct link to image

USD $0.50

How to order

Testimonials and reviews

MG# 28743060

Fuse holder

Single fuse holder that may be connected to other single fuse holders to form a row. Sold each. Fuses sold separately.

Fuse holder.
28743060: Fuse holder.
28743060: Fuse holder.

Direct link to image

USD $2.50

How to order

Testimonials and reviews

MG# 28742560

15 amp ATO / ATC fuse

As used on many modern Guzzis accepting blade style fuses. Sold each.

15 amp ATO / ATC fuse.
28742560: 15 amp ATO / ATC fuse.
28742560: 15 amp ATO / ATC fuse.

Direct link to image

USD $0.25

How to order

Testimonials and reviews

POST-TO-SPADE-ADAPTER

5 mm post to 6.3 mm male spade adapter

~5 mm diameter hole permits fitment to the neutral switch and dash grounding points (as original). One required per neutral switch. Dash usage varies by model. Sold each.

5 mm post to 6.3 mm male spade adapter.
5 mm post to 6.3 mm male spade adapter.
5 mm post to 6.3 mm male spade adapter.

Direct link to image

USD $0.50

How to order

Testimonials and reviews

MG# 13741640-LED

Bracket for mounting LED turn signal flashers

Designed specifically for LED flashers that are rubber mounted. Mounting hole is 7 mm in diameter. Sold each.

Bracket for mounting LED turn signal flashers. Flasher not included.
Bracket for mounting LED turn signal flashers. Flasher not included.
Bracket for mounting LED turn signal flashers. Flasher not included.

Direct link to image

Bracket for mounting LED turn signal flashers.
13741640: Bracket for mounting LED turn signal flashers.
13741640: Bracket for mounting LED turn signal flashers.

Direct link to image

USD $3.00

How to order

Testimonials and reviews

MG# 13741640

Bracket for mounting turn signal flashers

Fits standard sized round thermal and electronic flashers. Mounting hole is 6 mm in diameter. Sold each.

Bracket for mounting turn signal flashers.
13741640: Bracket for mounting turn signal flashers.
13741640: Bracket for mounting turn signal flashers.

Direct link to image

USD $3.00

How to order

Testimonials and reviews

MG# 12745760

Push-pull switch

Good quality switch with screw-type terminals. 25 amp capacity. 8 mm × 1 mm threads. Knob unscrews for fitment. Sold each.

Push-pull switch.
12745760: Push-pull switch.
12745760: Push-pull switch.

Direct link to image

USD $5.00

How to order

Testimonials and reviews

MG# 12734900ALT

Bracket for push-pull switch

This bracket is identical to the starter button bracket, except the hole is ~8 mm in diameter. The intent is to mount this bracket on the left clutch perch, mirroring the starter button bracket. Then, a push-pull switch may be fit to the bracket and used to conveniently actuate spot lights or other electrical components. Stainless steel. Very nice. Push-pull switch sold separately. Sold each.

Bracket for push pull switch.
12734900: Bracket for push pull switch.
12734900: Bracket for push pull switch.

Direct link to image

USD $15.50

How to order

Testimonials and reviews

MG# 13745740 MG# 17745760 MG# 18745701

Toggle switch

Excellent quality SEALED switch with six quick connect terminals (as original). 15 amp capacity, on-on double pole double throw, comes complete with mounting hardware (as shown). Sold each.

Toggle switch.
13745740: Toggle switch.
13745740: Toggle switch.

Direct link to image

USD $18.50

How to order

Testimonials and reviews

TOGGLE-BOOT

Half height toggle switch boot

Half-height boot for the toggle switch. Uses standard 1532-32 inch threads. Be sure to rotate the toggle with the boot when fitting the boot to the switch. Sold each.

Half height toggle switch boot.
Half height toggle switch boot.
Half height toggle switch boot.

Direct link to image

USD $4.50

How to order

Testimonials and reviews

TOGGLE-BOOT-FULL

Full height toggle switch boot

Full-height boot for the toggle switch. Uses standard 1532-32 inch threads. Be sure to rotate the toggle with the boot when fitting the boot to the switch. Sold each.

Full height toggle switch boot.
Full height toggle switch boot.
Full height toggle switch boot.

Direct link to image

USD $4.00

How to order

Testimonials and reviews

MG# 12732500

5 pin mini relay (SPDT) with mounting bracket.

40 amp rating.

Sealed construction. Resistor is used across the coil terminals for long life and reliable service. 40 amp maximum continuous current rating on the normally open circuit. 30 amp maximum continuous current rating on the normally closed circuit.

Great replacement for the starter relay or for use with custom functions. Mounting bracket has a 5.5 mm diameter hole. Sold each.

40 amp, 5 pin mini relay (SPDT) with mounting bracket.
12732500: 40 amp, 5 pin mini relay (SPDT) with mounting bracket.
12732500: 40 amp, 5 pin mini relay (SPDT) with mounting bracket.

Direct link to image

USD $5.00

How to order

Testimonials and reviews

MG# 28732560

5 pin mini relay (SPDT) without mounting bracket.

40 amp rating.

Great replacement for the starter relay or for use with custom functions. Sold each.

40 amp, 5 pin mini relay (SPDT) without mounting bracket.
28732560: 40 amp, 5 pin mini relay (SPDT) without mounting bracket.
28732560: 40 amp, 5 pin mini relay (SPDT) without mounting bracket.

Direct link to image

USD $5.00

How to order

Testimonials and reviews

MG# 30732510

5 pin mini relay (SPST) without mounting bracket.

Sealed construction. 40 amp maximum continuous current rating.

So far, the only Guzzi I know of that requires this relay is the 1000 S series 2 with the later Digiplex ignition module. As far as I know, all other applications should use MG# 28732560. Sold each.

40 amp, 5 pin mini relay (SPST) without mounting bracket.
30732510: 40 amp, 5 pin mini relay (SPST) without mounting bracket.
30732510: 40 amp, 5 pin mini relay (SPST) without mounting bracket.

Direct link to image

USD $7.50

How to order

Testimonials and reviews

MG# 30732560

5 pin micro relay (SPDT) without mounting bracket.

30 amp rating.

Sealed construction. Resistor is used across the coil terminals for long life and reliable service. 30 amp maximum continuous current rating on the normally open circuit. 20 amp maximum continuous current rating on the normally closed circuit.

Used on many later Guzzis. Fits my custom relay solution. Great for use with custom functions. Sold each.

35 amp / 25 amp, 5 pin micro relay (SPDT) without mounting bracket.
30732560: 35 amp / 25 amp, 5 pin micro relay (SPDT) without mounting bracket.
30732560: 35 amp / 25 amp, 5 pin micro relay (SPDT) without mounting bracket.

Direct link to image

USD $5.00

How to order

Testimonials and reviews
