Relay solution for the starter and headlight

Part number: RELAY-HARNESS

Price: $108.00

How to order

Testimonials and reviews

If you have an early voltage regulator bracket without the built-in starter relay bracket...
If you have an early voltage regulator bracket without the built-in starter relay bracket...
If you have an early voltage regulator bracket without the built-in starter relay bracket...

Direct link to image

...then you need this bracket.
...then you need this bracket.
...then you need this bracket.

Direct link to image

The bracket mounted to the voltage regulator bracket.
The bracket mounted to the voltage regulator bracket.
The bracket mounted to the voltage regulator bracket.

Direct link to image

The complete bracket and wiring harness you will receive.
The complete bracket and wiring harness you will receive.
The complete bracket and wiring harness you will receive.

Direct link to image




If you have a late voltage regulator bracket with the built-in starter relay bracket...
If you have a late voltage regulator bracket with the built-in starter relay bracket...
If you have a late voltage regulator bracket with the built-in starter relay bracket...

Direct link to image

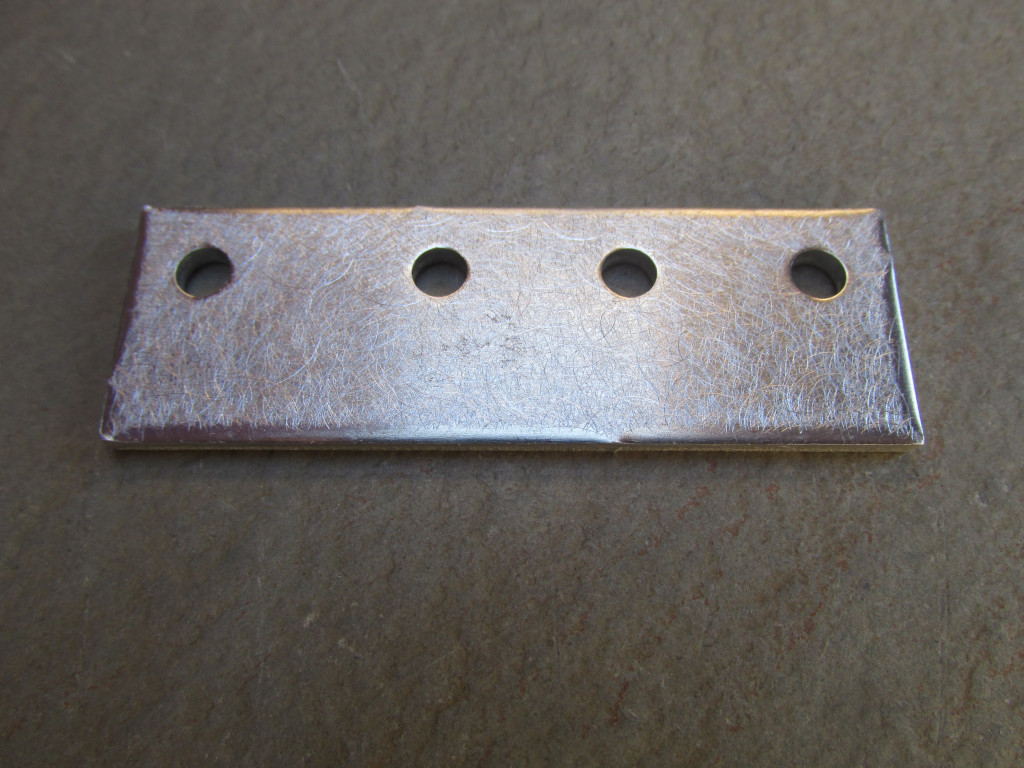

...then you need this bracket.
...then you need this bracket.
...then you need this bracket.

Direct link to image

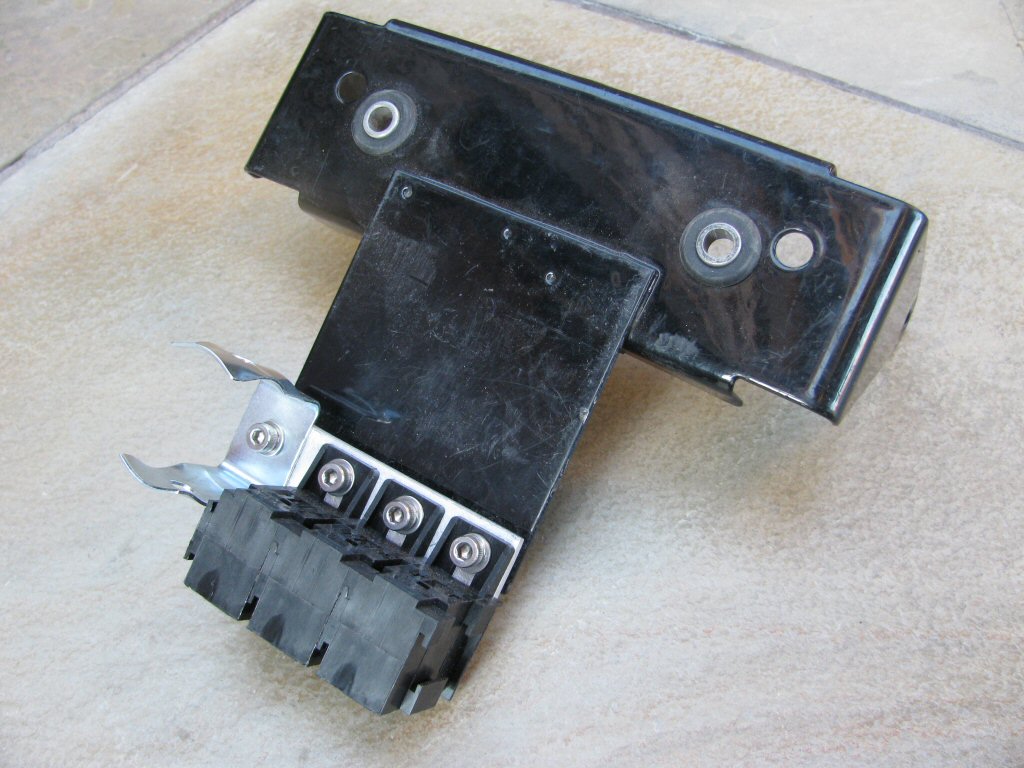

The bracket mounted to the voltage regulator bracket.
The bracket mounted to the voltage regulator bracket.
The bracket mounted to the voltage regulator bracket.

Direct link to image

The complete bracket and wiring harness you will receive.
The complete bracket and wiring harness you will receive.
The complete bracket and wiring harness you will receive.

Direct link to image

Relay solution for the starter and headlight

No more excuses! Relays greatly improve the performance of the starter and headlight. Your headlights will burn brighter and your starter solenoid will receive the high amperage current it needs when you use relays. Relays also dramatically extend the life of the starter button and headlight switch (especially the lovely and valuable original CEV switches).

I wrestled long and hard to create a solid solution that is in line with what I believe Carcano and Todero would have designed. A few points I'll mention:

  • Complete solution - includes all needed components.
  • Works with your existing voltage regulator: Magneti Marelli or Bosch (fitment with alternators is not a problem).
  • Similar to the original starter relay (and to afford ease of access), I located all the relays behind the battery and beneath the voltage regulator. This keeps the headlight bucket largely uncluttered and doesn't hide anything under the gas tank were it is difficult to access.
  • Aluminum bracket is CAD/CAM designed and precision CNC machine made for an excellent fit. All fasteners are stainless steel and metric.
  • Wiring is color coded to original specifications.
  • No permanent modification to the voltage regulator bracket is required. The custom brackets fit perfectly within the available space.
  • Relay sockets are used to make installation trouble free.
  • Includes a new headlight plug, starter relay harness, relays, flasher bracket, and turn signal flasher (a USD $43.00 value if purchased individually from me).
  • Each relay is wired independently from each other: starter, headlight low beam, headlight high beam. This slight redundancy permits one relay to fail without affecting the functionality of any other relay.
  • Includes 2 brackets for mounting a turn signals flasher: one each for round flashers and for rubber mounted rectangular flashers. Turn signal flasher is NOT included.
  • Includes all three needed relays.
  • Relays are of a standard size and easily replaced at any time (they simply plug into the socket).
  • Simple installation - bolt on the bracket, route the wires, plug in to the terminals (Installation instructions here).
Neat, complete installation.
Neat, complete installation.
Neat, complete installation.

Direct link to image

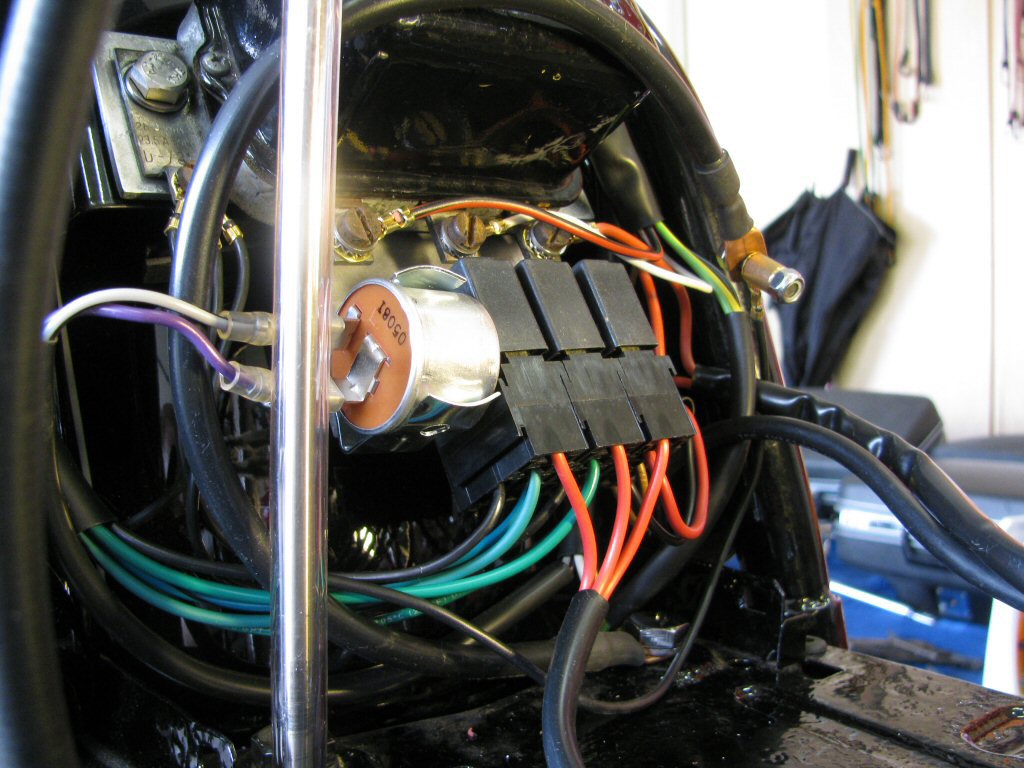

Once installed, the relays can be replaced without the need to remove the relay bracket or voltage regulator.
Once installed, the relays can be replaced without the need to remove the relay bracket or voltage regulator.
Once installed, the relays can be replaced without the need to remove the relay bracket or voltage regulator.

Direct link to image

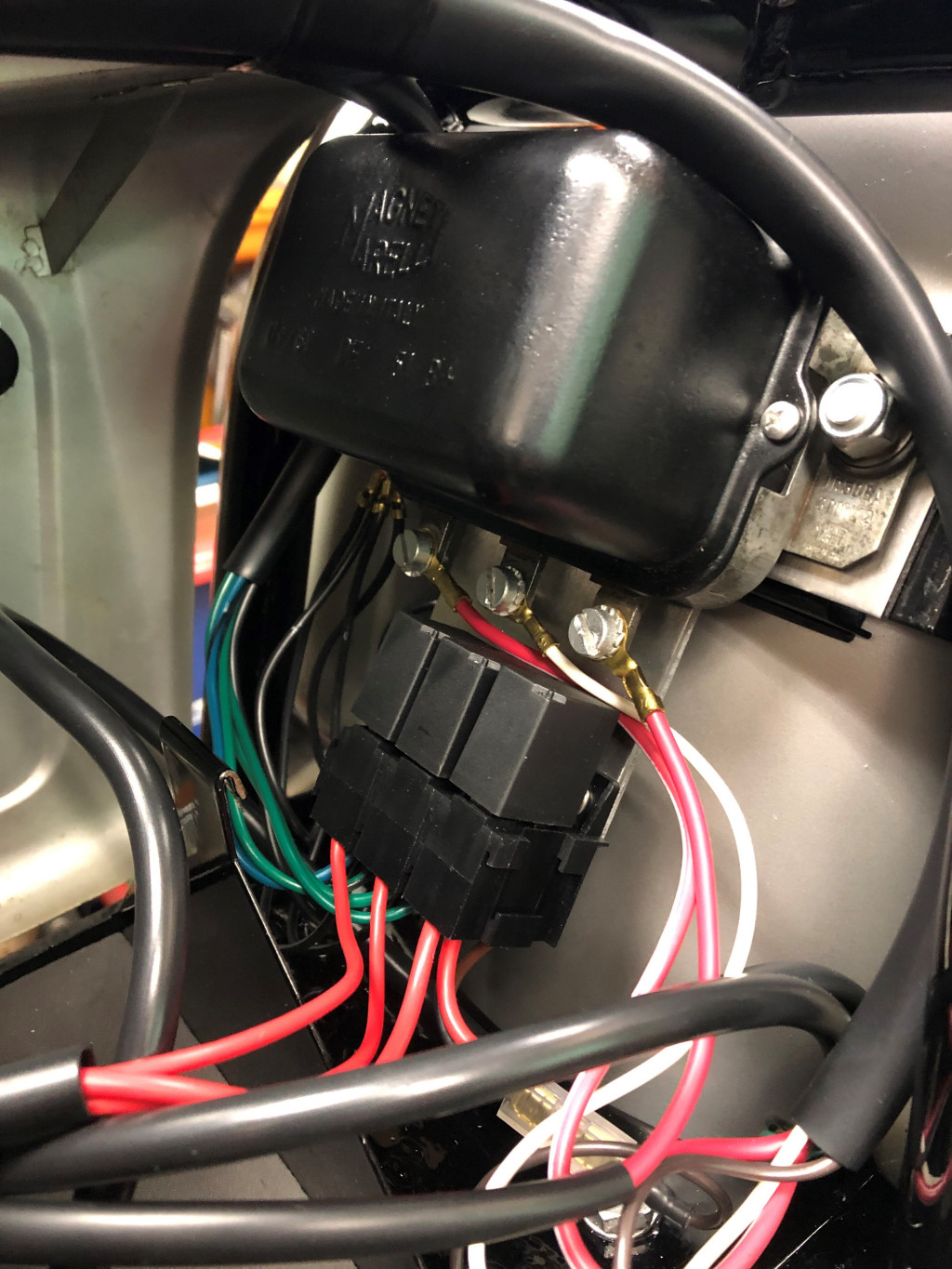

Another view of the installed relay solution on a Magneti Marelli equipped V700.
Another view of the installed relay solution on a Magneti Marelli equipped V700.

Photo courtesy of David Swanson.

Another view of the installed relay solution on a Magneti Marelli equipped V700.

Photo courtesy of David Swanson.

Direct link to image

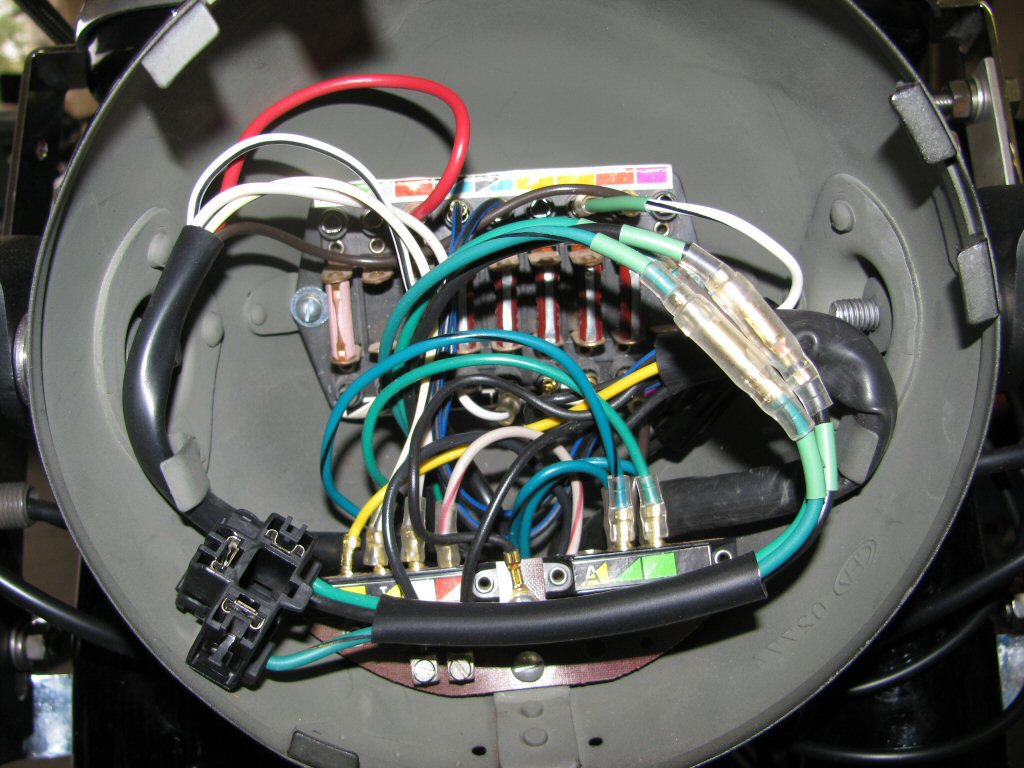

Headlight bucket remains clean and uncluttered.
Headlight bucket remains clean and uncluttered.
Headlight bucket remains clean and uncluttered.

Direct link to image

Installation instructions
