Benelli 250 2C headlight interconnect - Series 2 with disc brake; includes city light (non-USA version)

Part number: 301.073.0.799

USD $100.00

Benelli 250 2C headlight interconnect - Series 2 with disc brake; includes city light (non-USA version)

Used to interconnect the main harness with the left and right handlebar switches as well as the dash illumination and indicator lights; also powers the headlight.

The Non-USA version supports a city light. This can easily be modified to the USA version without a city light.

Applicable to this dash console (not included). If you have a different dash, let me know and I'll accomodate your dash.
Photo courtesy of Alexander Beatus.
Direct link to image

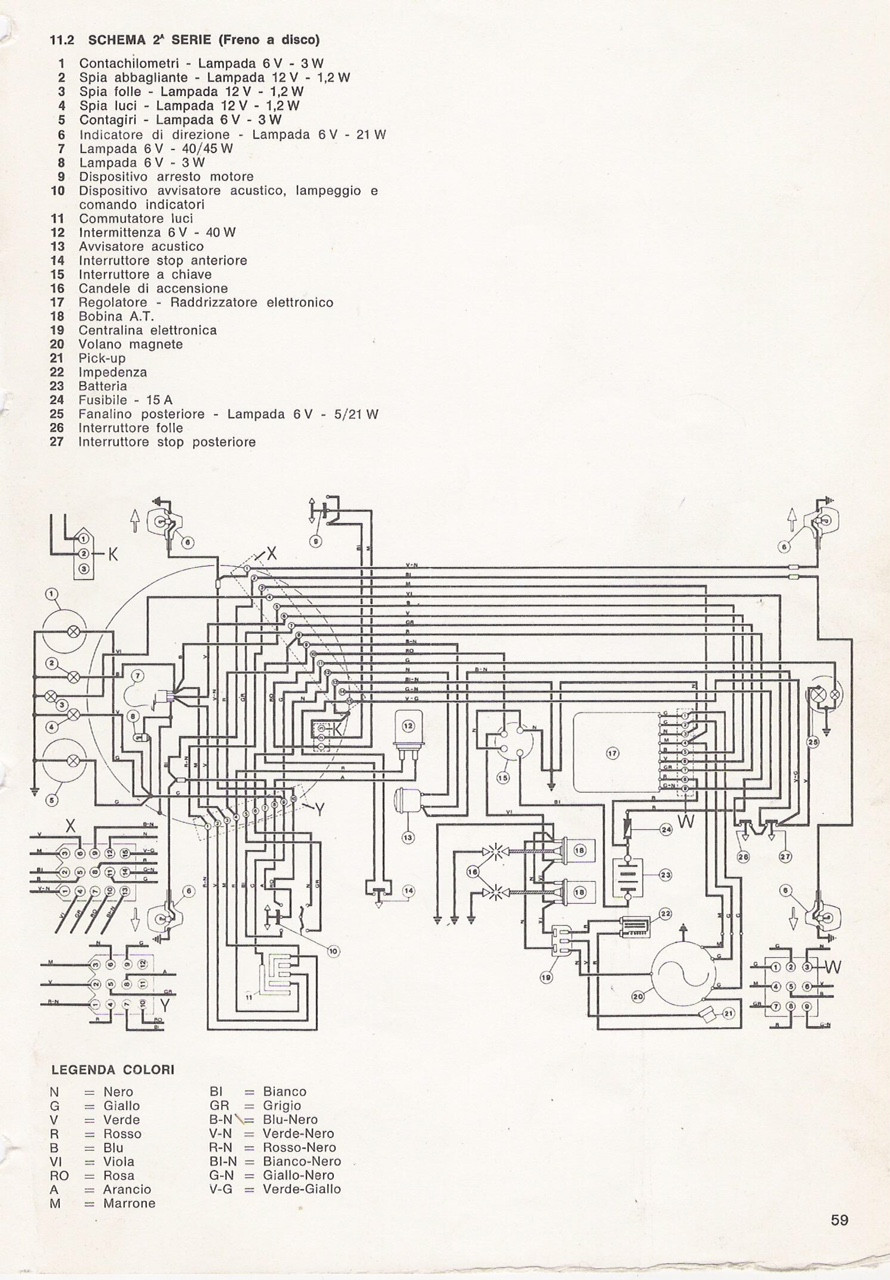

This harness was based on this wiring diagram.
Photo courtesy of Alexander Beatus.
Direct link to image

15 terminal connection that fits into the headlight shell.
Direct link to image

12 terminal connection that fits into the headlight shell.
Direct link to image

3 terminal connection that fits into the headlight shell.
Direct link to image

Headlight connection.
Direct link to image

Completed wire assembly can be routed through the original plastic cover. Alternatively, send me your plastic cover and I will route the wires through during assembly. Plastic cover not included with harness.
Direct link to image

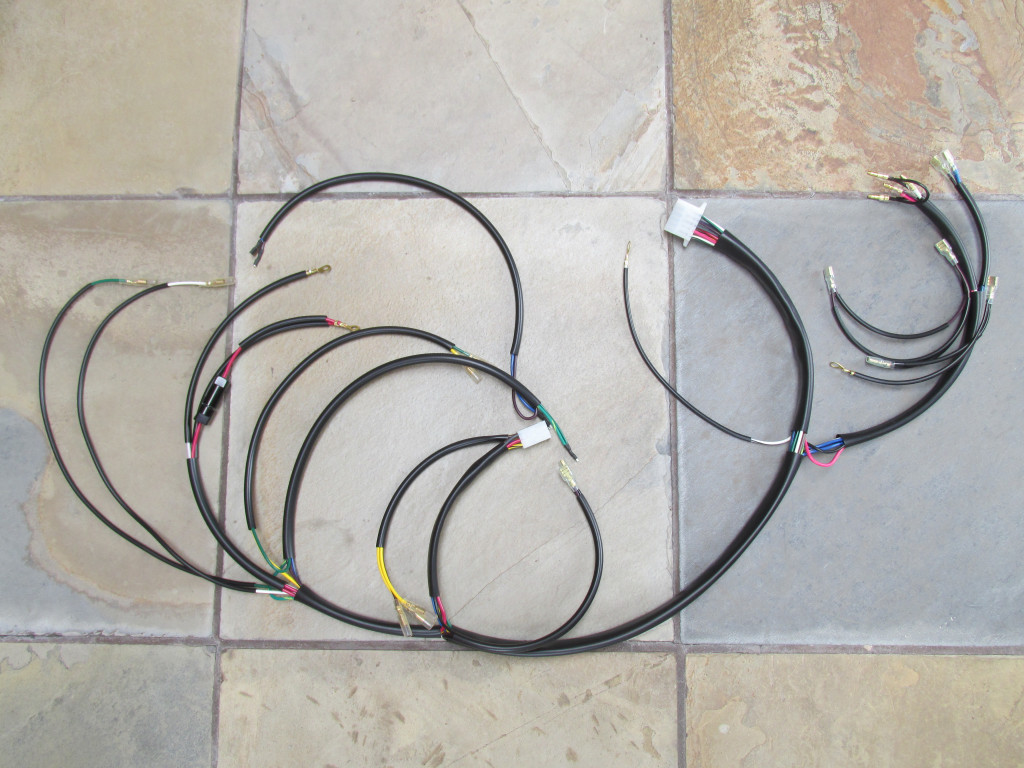

Headlight interconnect - Non-USA version.
