Wiring diagram for the DR350 S (1993 and later models)

Suzuki DR350 motorcycles, 1990 - 1999.

Created:
Updated:

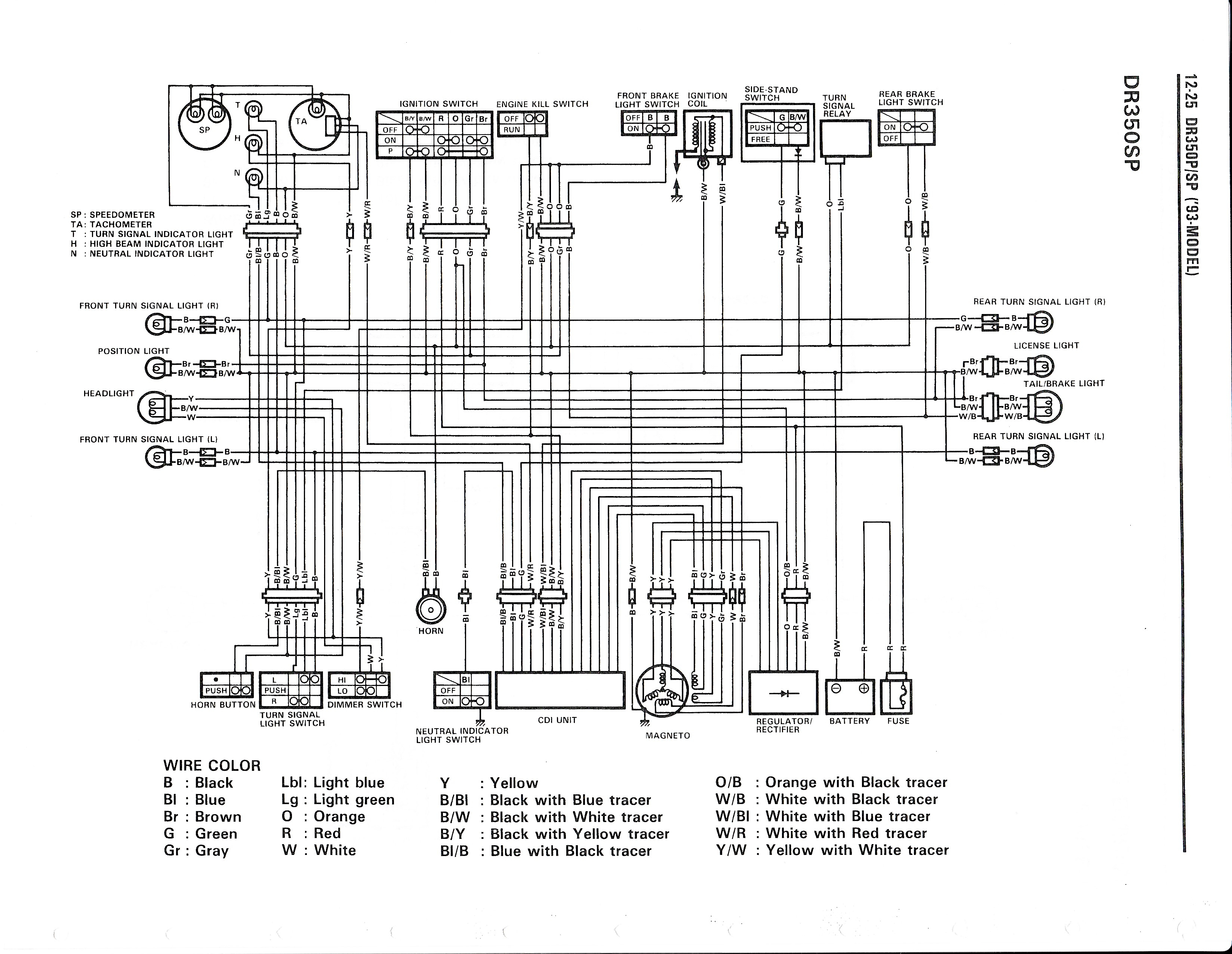

Wiring diagram for the DR350 S (1993 and later models)
Wiring diagram for the DR350 S (1993 and later models)

Photo courtesy of Gregory Bender.

Wiring diagram for the DR350 S (1993 and later models)

Photo courtesy of Gregory Bender.

Direct link to image
