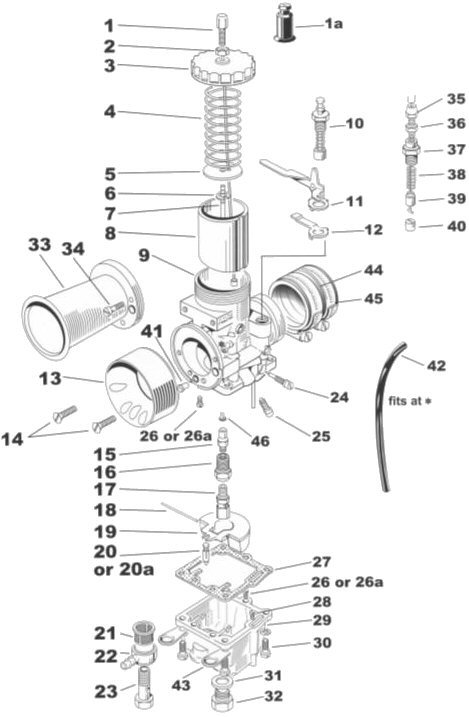

Parts diagram for Amal Mark 2 concentric motorcycle carburetors

Basic information regarding Amal motorcycle carburetors; primarily intended to supplement the Moto Guzzi spare parts catalogs and workshop manuals.

Created:
Updated:

This information was gleaned from Beedspeed.

Photo courtesy of Beedspeed.

Direct link to image
