Handlebar switch - K&S 12-0041
Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models
Created:
Updated:
Buy a wiring harness for this switch
K&S makes a modern, good quality, universal handlebar switch. While it does not have a period appearance, it is readily available and attractively priced. While the switch comes complete with wiring instructions, the following data specific to Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models should be helpful.

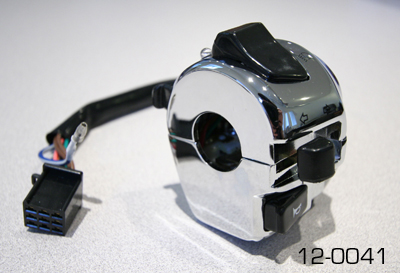

Photo courtesy of K&S.

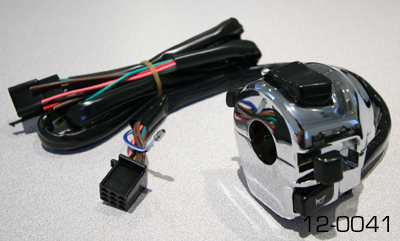

Photo courtesy of K&S.
Photo courtesy of K&S.
| Function | K&S 12-0041 | Moto Guzzi |
|---|---|---|
| Horn (wire to distribution panel) | Pink | Black |
| Horn (wire to ground) | Black |
None - original Moto Guzzi switch grounds through the handlebar switch to the handlebars A separate wire will need to be run to ground. |
| Right turn signal / turn indicator | Dark Green | Yellow or white/black |
| Turn signal / turn indicator (live wire from fuse panel; goes through flasher unit / blinker unit) | Brown with white tracer | Purple |
| Left turn signal / turn indicator | Brown | Yellow with black tracer |
| Running lights / parking lights (tail light, gauge illumination lights, etc.) | None. This switch does not have off/park/on functionality. |
Gray with red tracer A separate wire will need to be run from the distribution panel to an open circuit on the fuse panel. |
| Headlight high beam | Green | Green with black tracer |
| Live wire from fuse panel | Red with yellow tracer | Brown |
| Headlight low beam | Yellow | Green |
| High beam LED ground | Blue |
None - original Moto Guzzi switch does not have a high beam indicator integrated into the switch. A separate wire will need to be run to ground. |
| Passing light | Blue with white tracer |
None - original Moto Guzzi switch does not have a passing light feature. A separate wire will need to be run to an open circuit on the fuse panel. |
Gregory Bender's thoughts:
Since the 12-0041 switch lacks a separate parking light function, it is not the best choice for use with the Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.
