Gregory Bender

Brake light switch alternative 5 (front)

Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models

Created:

Updated:

// //

Thanks to Paul LeCornu for sending me this information via email. In Paul's own words and photos:

I though I would send a couple of pictures of my front brake switch installation. I've got a small IP67 4A 12V microswitch which just fits into the brake lever mount

It needed the mounting stubs filed down a little but fits neatly, and is held in with a blob of silicone sealant

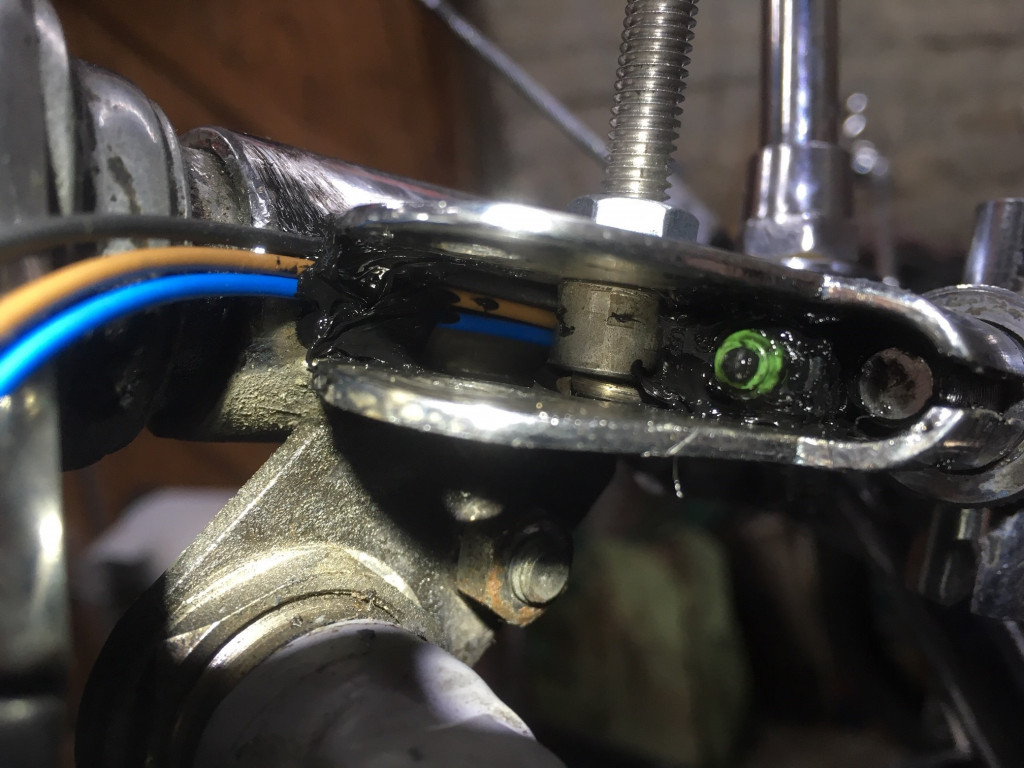

Alternate front brake light switch for Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.
Alternate front brake light switch for Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.

Photo courtesy of Paul LeCornu.

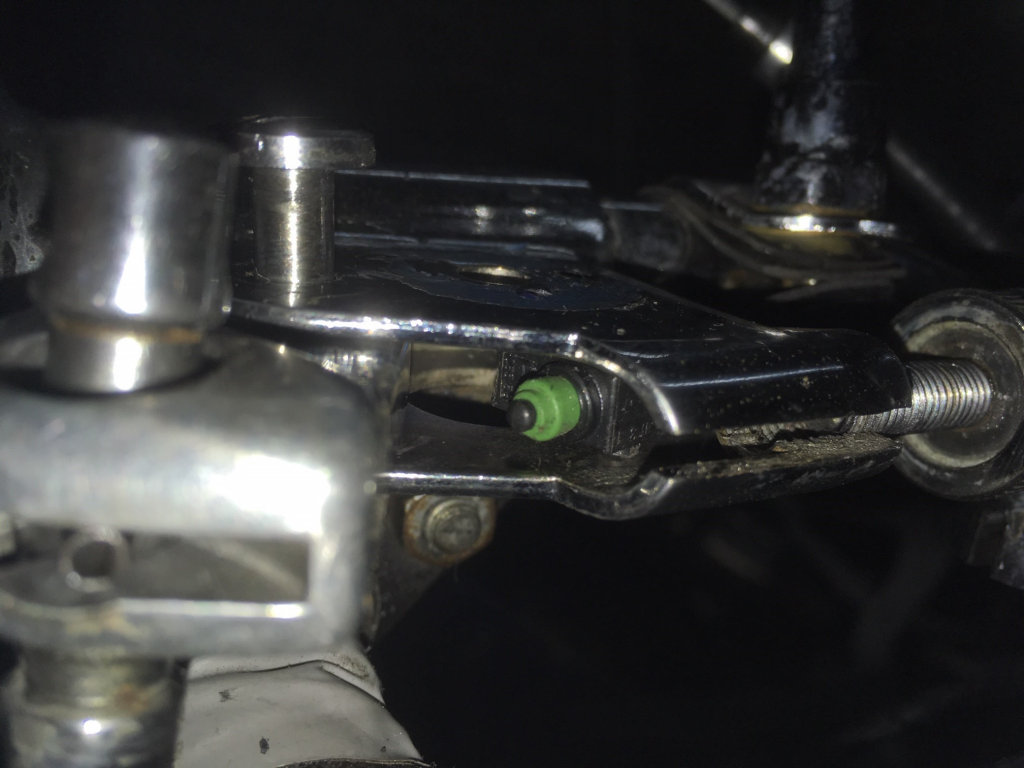

Alternate front brake light switch for Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.
Alternate front brake light switch for Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.

Photo courtesy of Paul LeCornu.

Alternate front brake light switch for Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.
Alternate front brake light switch for Moto Guzzi V700, V7 Special, Ambassador, 850 GT, 850 GT California, Eldorado, and 850 California Police models.

Photo courtesy of Paul LeCornu.
