Main harness for the Le Mans (Series 1)

Part number: 14747150

Price: $220.00

How to order

Testimonials and reviews

Main harness for the Le Mans.
14747150: Main harness for the Le Mans.
14747150: Main harness for the Le Mans.

Direct link to image

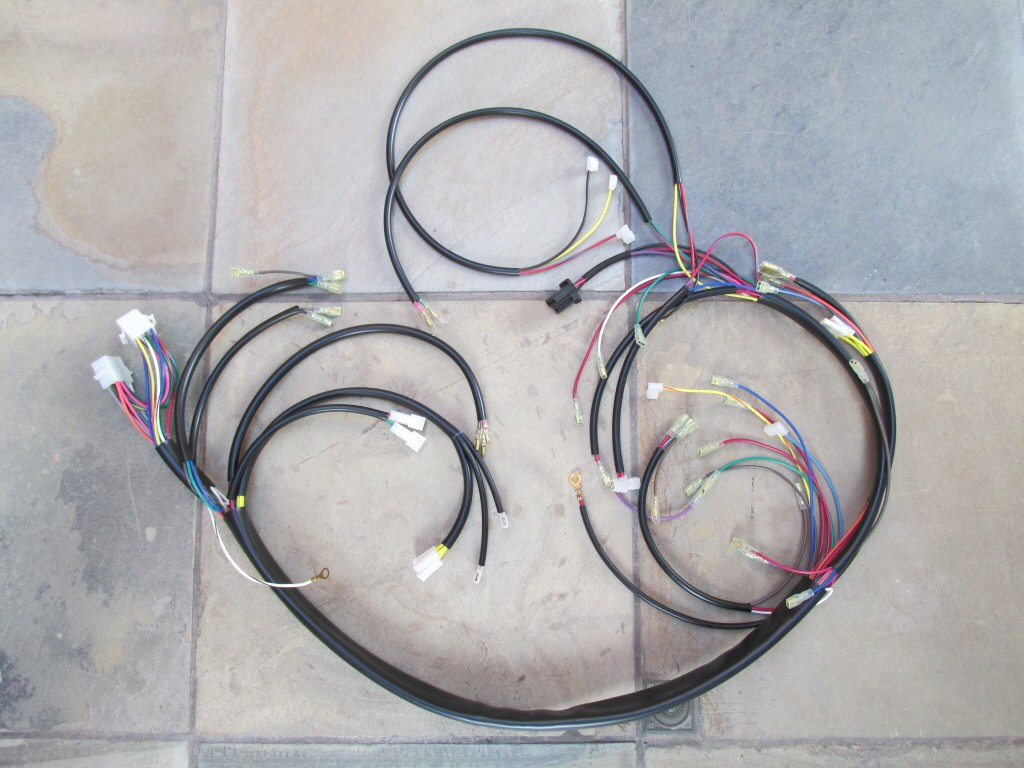

Main harness for the Le Mans (Series 1)

This harness fits the first series of the original Le Mans that used the same tail light as the 750 S3. It does not fit the Le Mans II, Le Mans CX 100, Le Mans III, or Le Mans 1000.

I duplicated an original main harness. In construction, I use the same gauge of wire, the same colors and tracers (stripes), the same length and sheathing, the same terminals, etc. All terminals are of the double crimp, strain relief variety.

The wires routed to the alternator are constructed of heat resistant materials.

The original Le Mans harness used an insufficient gauge of wire to actuate the starter solenoid circuit. I have chosen to use thicker wire for the two wires involved in this circuit. Should you wish to use the original, thinner gauge of wire, please let me know.

  • Note: Main harnesses comprise the main - or primary - wiring harness. Each motorcycle also uses ancillary sub-harnesses. The individual sub-harnesses are sold separately.

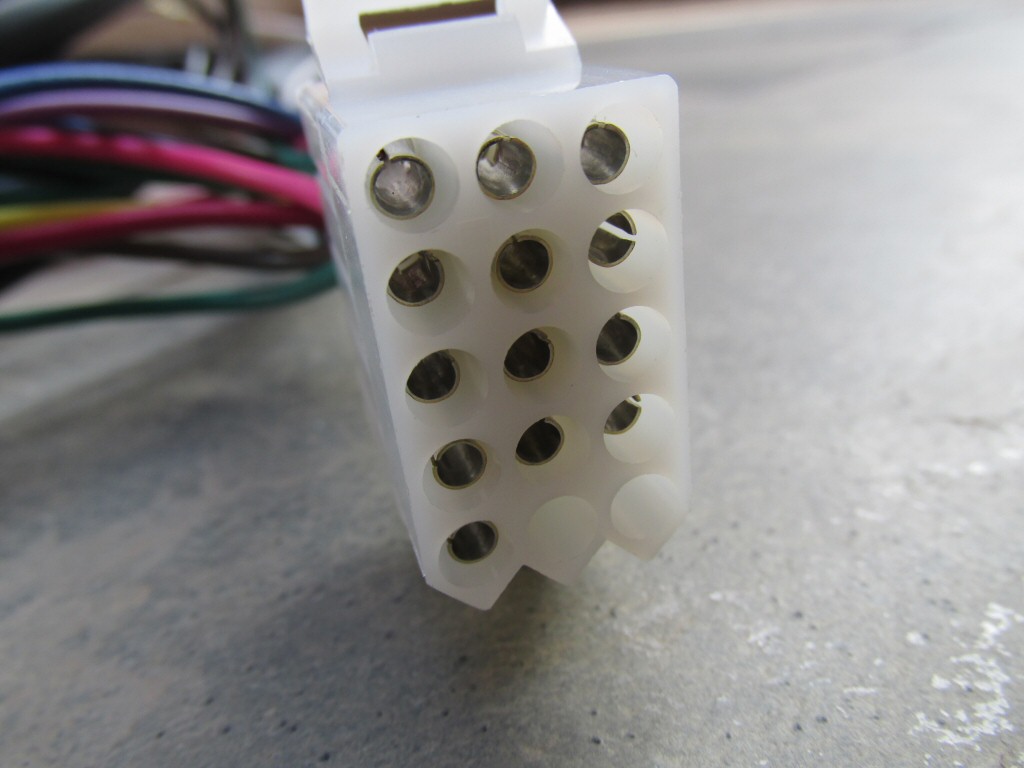

12 terminal connection at the mounting plate on the right side of the frame just rear of the steering stem.
12 terminal connection at the mounting plate on the right side of the frame just rear of the steering stem.
12 terminal connection at the mounting plate on the right side of the frame just rear of the steering stem.

Direct link to image

15 terminal connection at the mounting plate on the right side of the frame just rear of the steering stem.
15 terminal connection at the mounting plate on the right side of the frame just rear of the steering stem.
15 terminal connection at the mounting plate on the right side of the frame just rear of the steering stem.

Direct link to image

Male spade connections for the wires emanating from the distributor.
Male spade connections for the wires emanating from the distributor.
Male spade connections for the wires emanating from the distributor.

Direct link to image

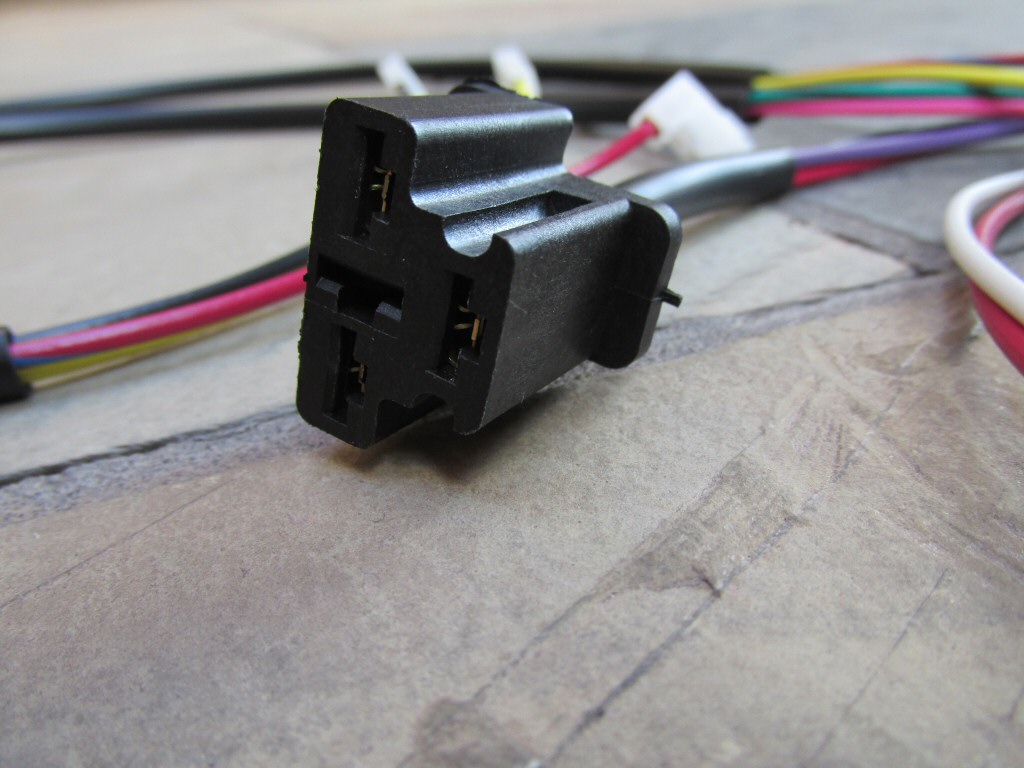

3 terminal connection for the voltage regulator.
3 terminal connection for the voltage regulator.
3 terminal connection for the voltage regulator.

Direct link to image

Flat 3 terminal connection for the alternator and for the voltage rectifier. The flat connector pictured is no longer available. You may reuse your original connector, or fit the individual insulators provided.
Flat 3 terminal connection for the alternator and for the voltage rectifier. The flat connector pictured is no longer available. You may reuse your original connector, or fit the individual insulators provided.
Flat 3 terminal connection for the alternator and for the voltage rectifier. The flat connector pictured is no longer available. You may reuse your original connector, or fit the individual insulators provided.

Direct link to image

At the alternator: Original additional/special sheathing (MG# 14710200) exiting the alternator cover is not included because it does not accept the larger diameter heat resistant wire; regular sheathing is used instead and it fits nicely through the alternator cover.
