Main harness for the 1000 S (Series 1)

Part number: 29747170

Price: $180.00 In stock

How to order

Testimonials and reviews

Main harness for the 1000 S (Series 1).
29747170: Main harness for the 1000 S (Series 1).
29747170: Main harness for the 1000 S (Series 1).

Direct link to image

Main harness for the 1000 S (Series 1)

Series 1 machines have the early dash.

Early dash used on the 1000 S (Series 1).
Early dash used on the 1000 S (Series 1).
Early dash used on the 1000 S (Series 1).

Direct link to image

The 1000 S came equipped with variations in the charging system:

  • Saprisa charging system. Voltage regulator was mounted behind the right side cover.
  • Ducati charging system. Voltage regulator was mounted in front of the engine, above the alternator.

The 1000 S came equipped with variations in the ignition system:

  • Standard distributor with coils located behind the left side cover.
  • Digiplex electronic igntion with coils under the fuel tank.

Please let me know which variation you may have.

I duplicated an original main harness. In construction, I use the same gauge of wire, the same colors and tracers (stripes), the same length and sheathing, the same terminals, etc. All terminals are of the double crimp, strain relief variety.

  • Note: Main harnesses comprise the main - or primary - wiring harness. Each motorcycle also uses ancillary sub-harnesses. The individual sub-harnesses are sold separately.
15 terminal connection to the dash harness.
15 terminal connection to the dash harness.
15 terminal connection to the dash harness.

Direct link to image

6 terminal connection (optional).
6 terminal connection (optional).
6 terminal connection (optional).

Direct link to image

4 terminal connection to the right handlebar switch.
4 terminal connection to the right handlebar switch.
4 terminal connection to the right handlebar switch.

Direct link to image

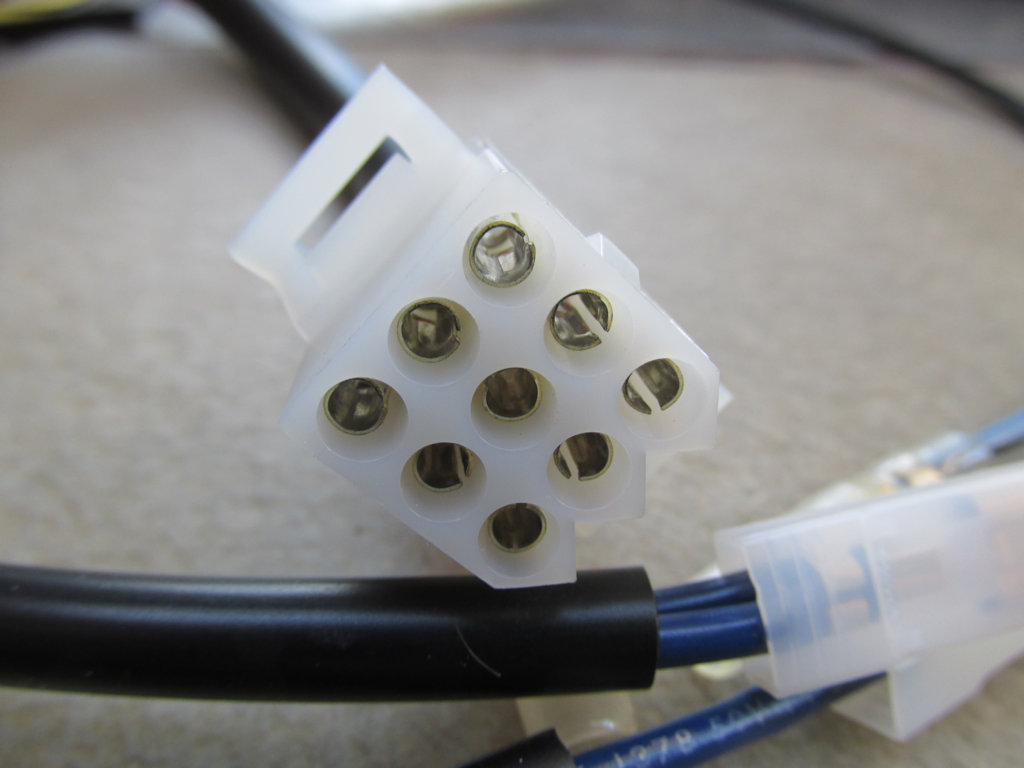

9 terminal connection to the left handlebar switch.
9 terminal connection to the left handlebar switch.
9 terminal connection to the left handlebar switch.

Direct link to image

Connections to the distributor (optional).
Connections to the distributor (optional).
Connections to the distributor (optional).

Direct link to image

6 terminal connection to the fuse box.
6 terminal connection to the fuse box.
6 terminal connection to the fuse box.

Direct link to image

6 terminal connection to the tail light harness.
6 terminal connection to the tail light harness.
6 terminal connection to the tail light harness.

Direct link to image

2 termianl connection to the low fuel light (optional).
2 termianl connection to the low fuel light (optional).
2 termianl connection to the low fuel light (optional).

Direct link to image

Connections to the Saprisa voltage regulator.
Connections to the Saprisa voltage regulator.
Connections to the Saprisa voltage regulator.

Direct link to image

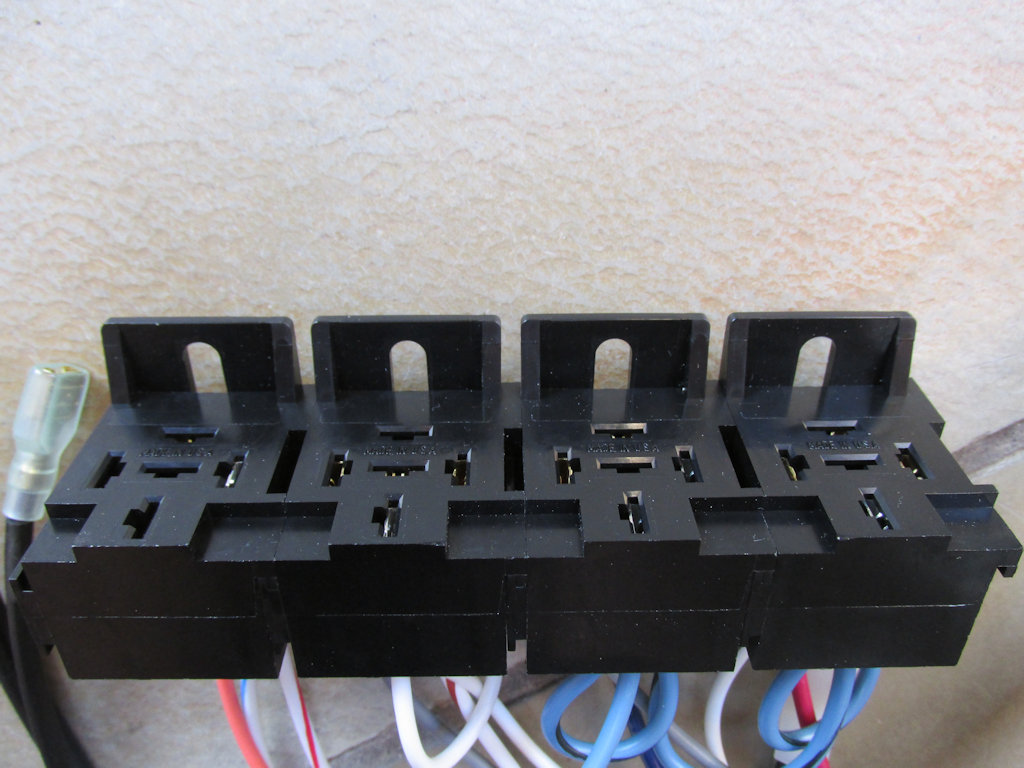

4 sockets for three relays and the turn signal flasher.
4 sockets for three relays and the turn signal flasher.
4 sockets for three relays and the turn signal flasher.

Direct link to image
