Slide needle specifications for Dellorto PHBE-PHF-PHM-PHSB-VHSB carburetors (K slides): Series 8530 X 08 K

Detailed technical information regarding Dellorto motorcycle carburetors, how to tune Dellorto motorcycle carburetors, Dellorto parts diagrams, slide specifications, needle specifications, jet specifications, and atomizer specifications.

Created:

Updated:

// //

This information was gleaned from Eurocarb. When I originally created this page on , I meticulously recreated the table of values from a very difficult to read original image. Mistakes were definitely present as the original image was of poor quality. Here is a link to the original image in case you would like to scrutinize any particulars.

On I noted that Eurocarb had greatly improved the quality of these specifications. I've updated the specification with accurate information as provided by Eurocarb.

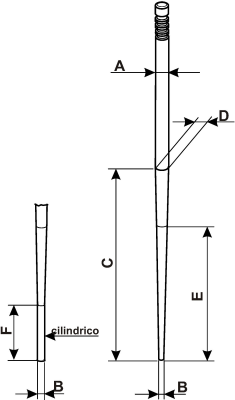

PHBE-PHF-PHM-PHSB-VHSB slide carburetor needle. Note the term cilindrico which translates to cylindrical.
PHBE-PHF-PHM-PHSB-VHSB slide carburetor needle. Note the term cilindrico which translates to cylindrical.

Photo courtesy of Eurocarb.

Table: Slide needle series 8530 X 08 K

TypeValue XCharacteristic expressed in millimeters
ØAØBCØDEF
K112.451.7537---
K222.451.7542---
K332.501.5039---
K442.451.5039---
K552.451.5037---
K662.451.7539---
K772.451.2539---
K882.501.5037---
K992.451.5042---
K11112.501.2539---
K12122.481.7532---
K13132.451.2538---
K14142.481.7533---
K15152.500.6036---
K16162.501.7539---
K17172.421.7540---
K18182.501.4038---
K19192.501.4040---
K20202.501.4042---
K21212.501.8038---
K22222.501.8040---
K23232.501.8042---
K24242.501.20382.1318-
K25252.501.00362.1518-
K27272.501.8044---
K28282.501.8041---
K29292.451.2542---
K30302.501.40362.1518-
K31312.451.5036---
K32322.481.7044---
K33*332.501.8044---
K34342.501.40402.1118-
K35352.501.4043---
K36362.501.40382.1720-
K37372.501.40392.1218-
K38382.501.40382.1318-
K39392.481.45362.2826-
K40402.501.40402.1822-
K41412.501.40402.1422-
K42422.501.40382.1622-
K43432.501.40422.1626-
K44442.501.40392.0620-
K45452.481.30362.2826-
K46462.501.40402.1520-
K48482.481.60362.252511
K49492.501.40392.2026-
K51512.521.4043---
K50502.501.40392.2726-
K52522.501.60362.252511
K53532.521.60362.252511
K54542.481.50402.10818-
K56562.501.20382.1720-
K57572.501.40372.23226-
K58582.461.60362.252511
K59592.501.40392.2324-
K60602.461.60392.132511
K61612.441.60392.132511
K62622.481.60392.132511
K63632.461.60392.102511
K65652.461.60392.162511
K66662.441.60392.162511
K67672.441.60392.102511
K68682.421.60392.072511
K69692.481.60392.102511
K70702.421.60392.042511
K71712.441.60392.072511
K72722.501.20382.2022-
K76762.461.55392.102511
K77772.461.60392.072511
K78782.481.60392.072511
K79792.481.60362.072511
K80802.401.6039---
K81812.441.55392.072511
K82822.481.55392.102511
K83832.441.55392.042511
K84842.481.50392.102511
K86862.461.50392.072511
K87872.481.45392.102511
K88882.561.4332.42.1216.2-
K89892.481.50392.072511
K91912.471.40392.2726
K92922.501.6038---
K93932.501.6040---
K94942.501.6538---
K95952.501.6540---
K96962.501.7542---
K97972.501.8044.5---
K98982.521.8041---
* Constructed of anodized aluminum
